Toshiba MW24F11 Service Manual

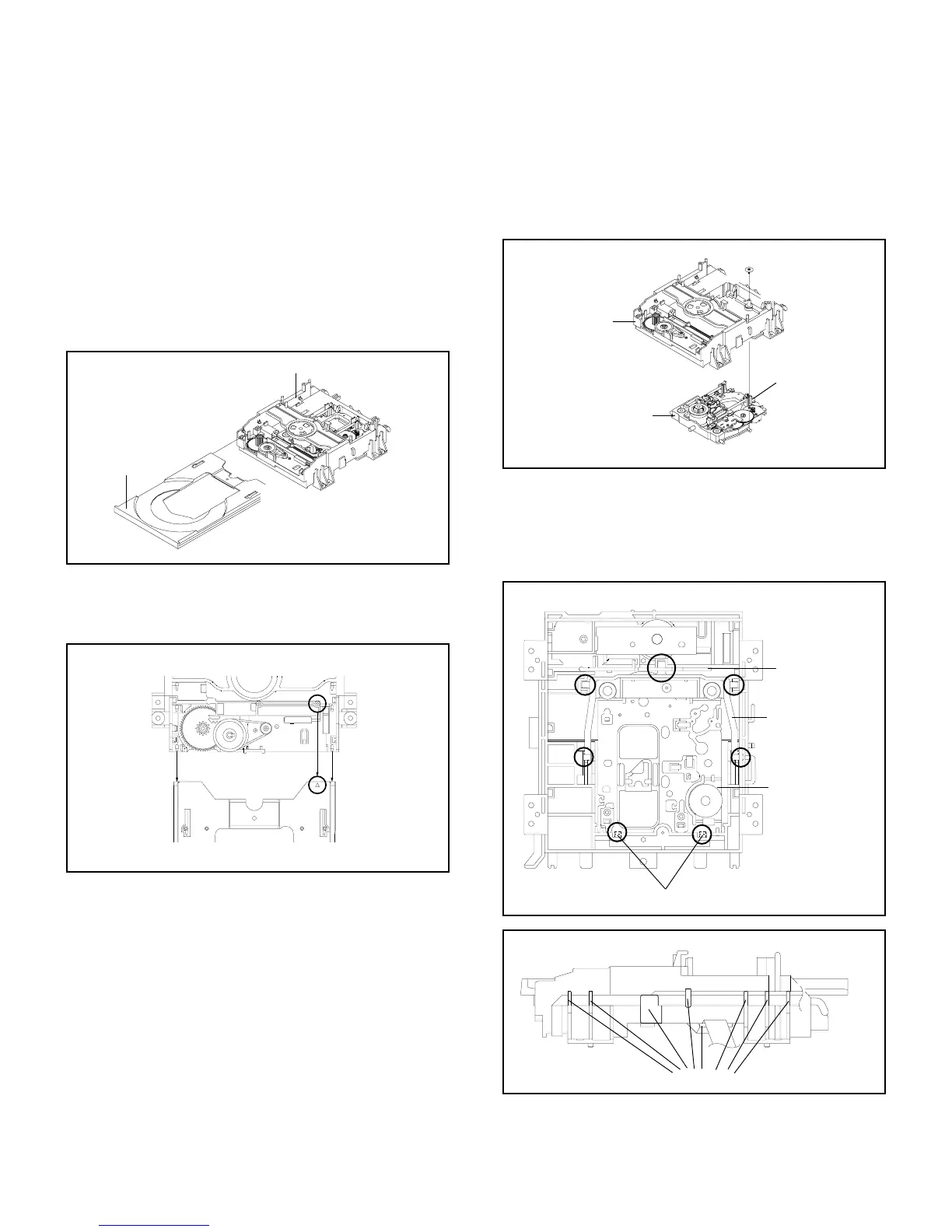

DISASSEMBLY INSTRUCTIONS
B3-1
3. REMOVAL OF DVD DECK PARTS
3-1: TRAY (Refer to Fig. 3-1-A)
Set the Tray opened. (Refer to the DISC REMOVAL
METHOD AT NO POWER SUPPLY)
Unlock the 2 supports 1 and remove the Tray.
1.
2.
Fig. 3-1-A
Tray
Main Frame Ass'y
1
NOTE
1.
In case of the Tray installation, install them as the circled
section of Fig. 3-1-B so that the each markers are met.
3-2: MAIN CHASSIS ASS'Y (Refer to Fig. 3-2-A)
Remove the screw 1.
Unlock the 2 supports 2.
Remove the Insulator (R) from the Main Frame Ass'y.
Remove the Main Chassis Ass'y.
1.
2.
3.
4.
Fig. 3-2-A
Tray
Main Frame Ass'y
Fig. 3-1-B
Insulator (R)
NOTE
1. Disassemble only the DVD DECK PARTS parts listed
here. Minute adjustments are needed if the disassembly
is done. If the repair is needed except listed parts, replace
the DVD MECHA ASS'Y.
1
1
2
Main Frame Ass'y
Main Chassis Ass'y
2
• Screw Torque: 2.0 ± 0.3kgf•cm
NOTE
1.
2.
In case of the Main Chassis Ass'y, install it from (1) to (4)
in order. (Refer to Fig. 3-2-B)
In case of the Main Chassis Ass'y installation, hook the
wire on the Main Frame Ass'y as shown Fig. 3-2-C.
Fig. 3-2-B
(1)
(2)
(3)
(3)
(4)
(3)
Check Lock
(4)
Main Chassis Ass'y
Rack Loading
Main Frame Ass'y (Bottom Side)
Traverse Holder
Fig. 3-2-C
Main Frame Ass'y
Check Hook
