Toshiba MW24F11 Service Manual

OPE-AMP
IC2304
BA10358FV-E2
MPEG/MICON/DSP/RF_AMP
IC4001
ZR36862PQCG
OPU
SPINDLE/
STEPING/
SLED
MOTOR
8M Flash
IC4007
SST39VF800A-70-4C-EKE
RF, A, B, C, D, E, F
EEPROM
IC4002
BR24L02F-WE2
VR_DVD, VR_CD
HOME, TIN_SW, TOUT_SW
I CDAT
2
I CCLK
2
DVD LOADER
DM-3P(05SD)
MD_CD, MD_DVD
D
DVD/CD, DVD_LD, CD_LD
Motor Drive
IC2301
LA6565-TE-L-E
TR+/-, FO+/-,
MOT_LD+/-,
MOT_SLED+/-,
MOT_SPDL+/-
SPINDLE/SLED/
FOCUS/TRACK_PWM,
TRAY_CLOSE/OPEN
A
E
A, C

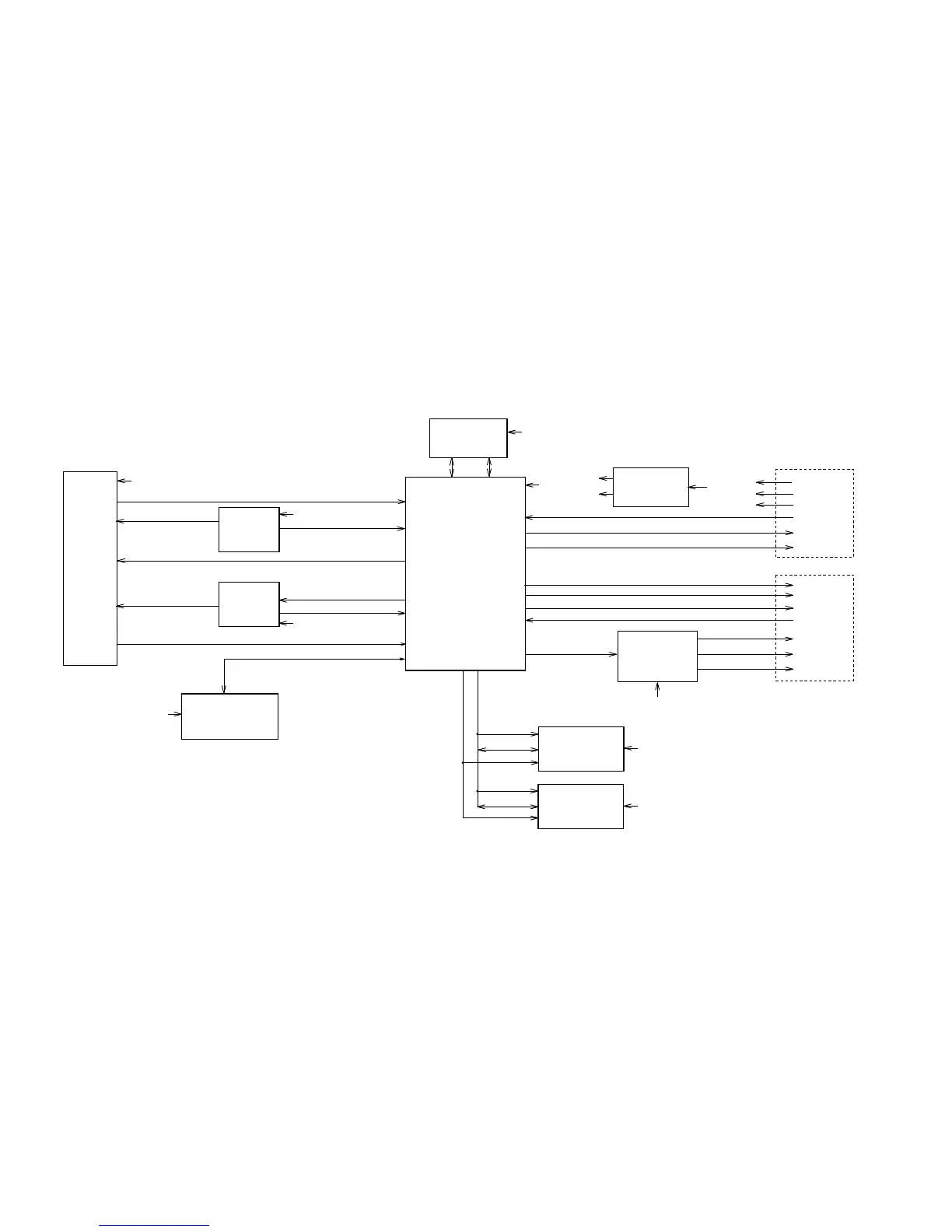

DVD BLOCK DIAGRAM
HA0~A19,
HD0~D15,
MEMCS0, RD, WR
SD_A0~A10
SD_D0~D15
16M SDRAM
IC4009
K4S161622H-UC60
SD_A0~A10
SD_D0~D15
16M SDRAM
IC4008
K4S161622H-UC60
A
A
A
+3.3V, 1.9V REG
IC4003
BA33E00WHFP-TR
VCR BLOCK
CD4002
TX
RX
SPDIF
DVD RESET
AUDIO L
AUDIO R
ZERO
STEREO DAC
IC8102
PCM1753DBQR
C
Y
A
B
ML, MC, MD,
AMCLK, ABCLK,
ALRCLK, ASDATA0
D
E-1
A---3.3V
B---1.8V
D
E-2
ADCIN_5, 6, 7
RAMDQM, CLK2, CKE, WE#, CAS#, RAS#, CS0#, CS1#, SD_BA0
CVBS
CP8101
UNREG+3.8V
C
C
D
E
P.CON+5V
P.CON+9V

Toshiba MW24F11 Specifications

General

Brand	Toshiba
Model	MW24F11
Category	TV DVD Combo
Language	English
