MICON
Y/C_VIDEO_Y
SW_C

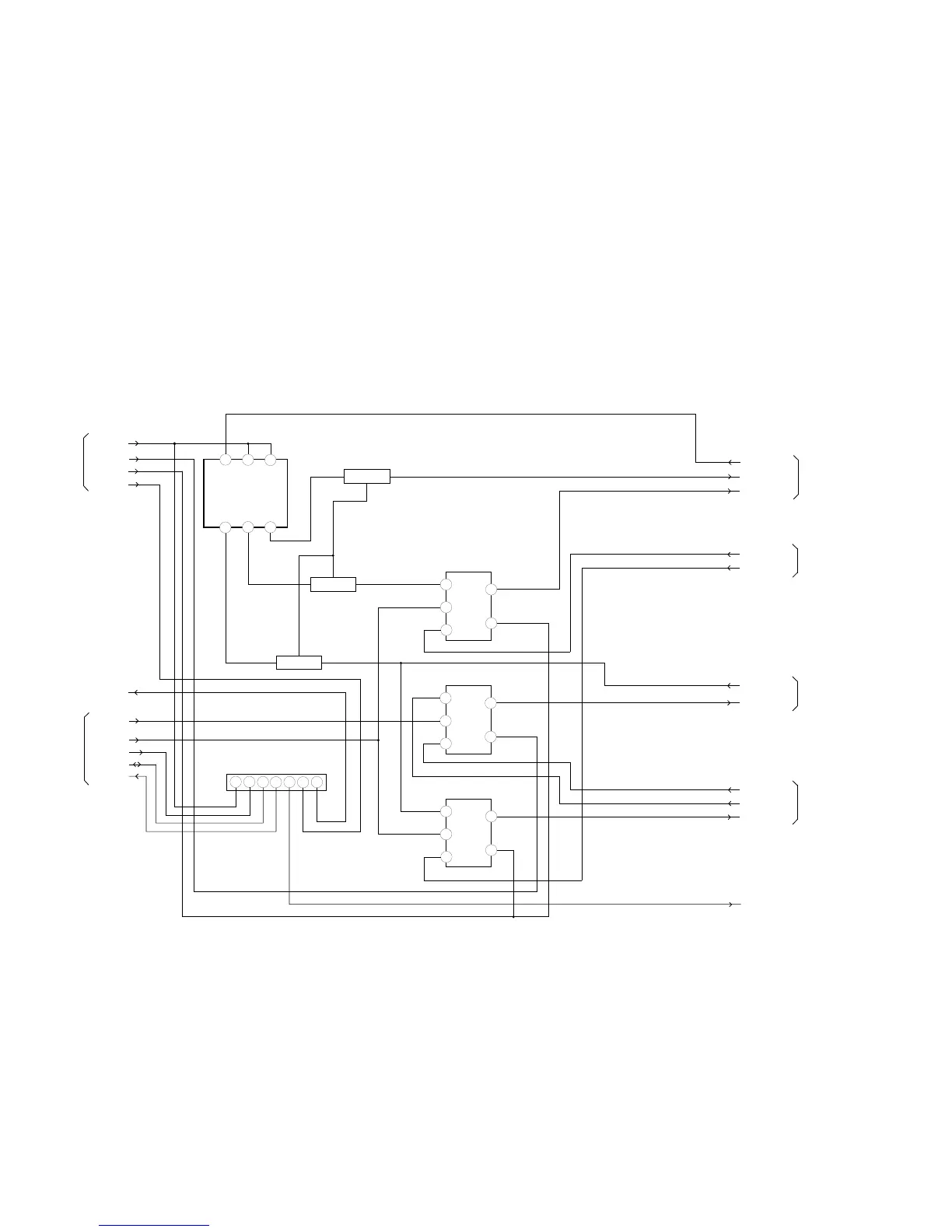

DIGITAL COMB FILTER BLOCK DIAGRAM
AV_SW1
AV_SW2
DVD_Y/C-C
DVD_VIDEO
JACK_OUT
AUX_V[F/R]
Y/C_VIDEO
REAR_V_IN
FRONT_V_IN
REGULATOR
CHROMA/IF
DIGITAL COMB FILTER
IC
IC1501
TC90A45FG
13
15
16
8
4
10
AV SW IC
IC1502 MM1501XNRE
2
6
1
4
3
AV SW IC
IC1504 MM1501XNRE
2
6
1
4
3
VIDEO OUT SW IC
IC1505 MM1504XNRE
2
6
1
4
3
BUFFER
Q1501
COMB_FSC
BUFFER
Q1503
P.CON+5V
P.CON+12V
BUFFER
Q1502
DVD IN/OUT
Y/C/AUDIO/
HEAD AMP
IN/OUT
P.CON+8V
3
10
11
TU001
115-V-KA35ARB
12
14
15
17
SCL
SDA
TUNER_AUDIO
Hi-Fi/
DEMODULATOR
TUNER VIDEO
AFT
AT+30V
Y/C/AUDIO/
HEAD AMP
E-15
E-16
59
61
Table of Contents
Service Manual
1
Caution
2
Servicing Notices on Checking
3
How to Order Parts
3
Important Safeguards
4
When Replacing DVD Deck
7
Tape Removal Method at no Power Supply
8
Disc Removal Method at no Power Supply
8
Parental Control Rating Level
9
Tray Lock
9
ABOUT LEAD FREE SOLDER (Pbf)
10
Table of Contents
11
General Specifications
12
Disassembly Instructions
20
Removal of Mechanical Parts and P.C. Boards
20
Removal of Vcr Deck Parts
23
Removal of DVD Deck Parts
29
Removal of Anode Cap
33
Removal and Installation of Flat Package IC
34
Key to Abbreviations
36
Service Mode List
38
Confirmation of Hours Used
39
Preventive Checks and Service Intervals
39
When Replacing Eeprom (Memory) IC
41
Servicing Fixtures and Tools
42
Preparation for Servicing
42
Mechanical Adjustments
43
Electrical Adjustments
47
Purity and Convergence
51
DVD
53
Micon
54
Y/C/Audio/Head Amp
54
Chroma/If
55
Hi-Fi/Demodulator
55
Sound Amp/Surround
55
Digital Comb Filter
59
DVD In/Out
60
Regulator
61
Printed Circuit Boards
64
DVD
64
Vcr
65
Mpeg/Micon/Dsp/Rf_Amp
86
Memory
86
Y/C/Audio/Head Amp
86
Micon
87
Chroma/If
87
Sound Amp/Surround
87
Deflection
87
Waveforms
88
Mechanical Exploded Views
89
Chassis Exploded Views
92
DVD Deck Exploded Views
94
Mechanical Replacement Parts List
95
Chassis Replacement Parts List
97
DVD Deck Replacement Parts List
98
Electrical Replacement Parts List
99
