P9 ASD Installation and Operation Manual 19

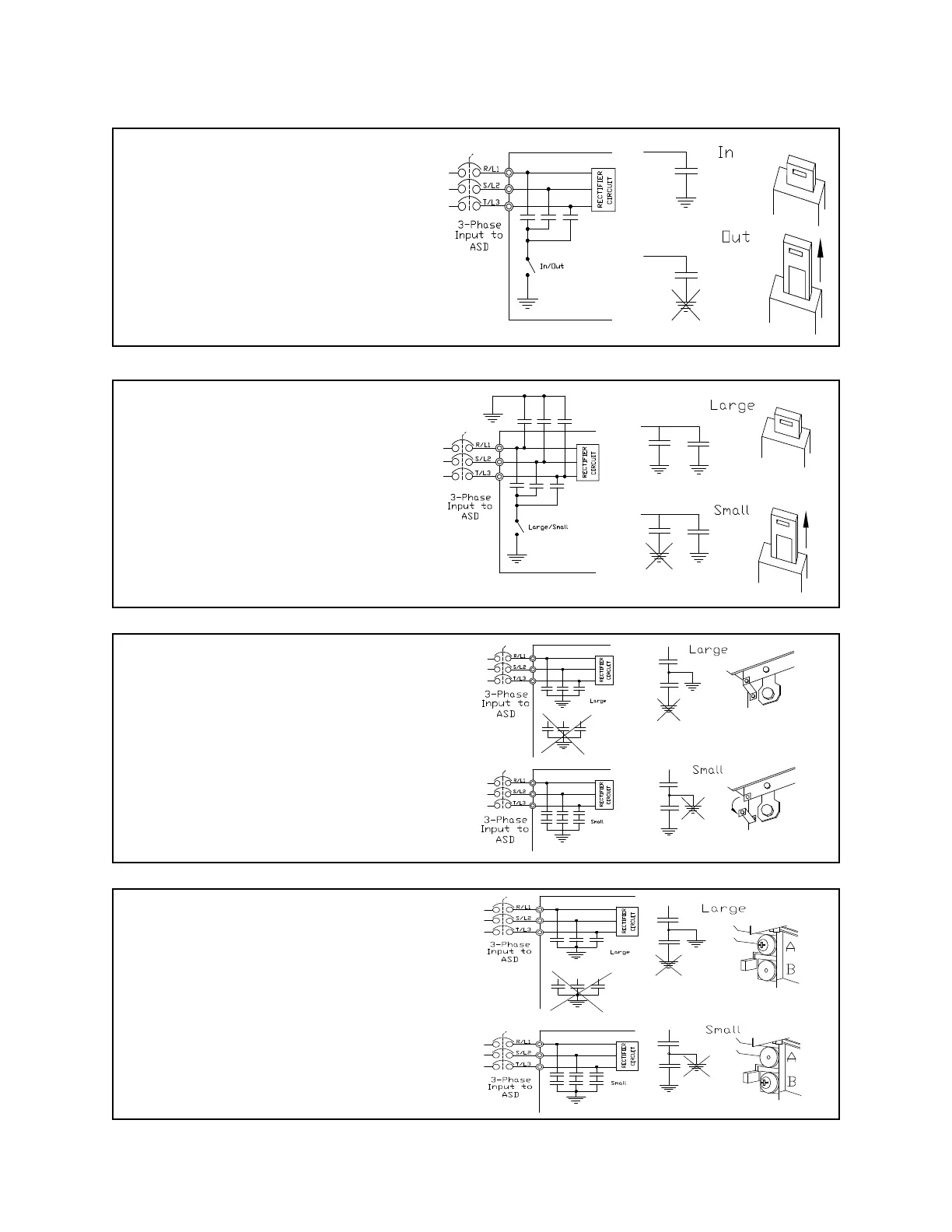

Figure 4. The Grounding Capacitor
Switch is used on typeforms 230-volt
0.75 HP to 10 HP and the 25 and 30 HP/
460-volt 1.0 HP to 25 HP.
The value may be set to Maximum
(default setting) or to Zero by pushing or
pulling the switch actuator, respectively.
Figure 5. The Grounding Capacitor
Switch is used on typeforms 230-volt
15 HP and 20 HP and the 40 HP to 60
HP/460-volt 30 HP to 100 HP.
The value may be set to Large
(default setting) or Small by pushing
or pulling the switch actuator,
respectively.
Figure 6. The Grounding Capacitor
Bar is used on typeforms 230-volt 75
HP to 125 HP/460-volt 125 HP and
the 150 HP.
The value may be set to Large or
Small (default setting) by connecting
or disconnecting the switching bar,
respectively.
Figure 7. pg. 19The Grounding
Capacitor Screw is used on
typeforms 460-volt 200 HP and
above.
The value may be set to Large or
Small (default setting) by placing the
screw in the A position or by placing
the screw in the B position,
