T1/T1S User’s Manual
1. System Configuration

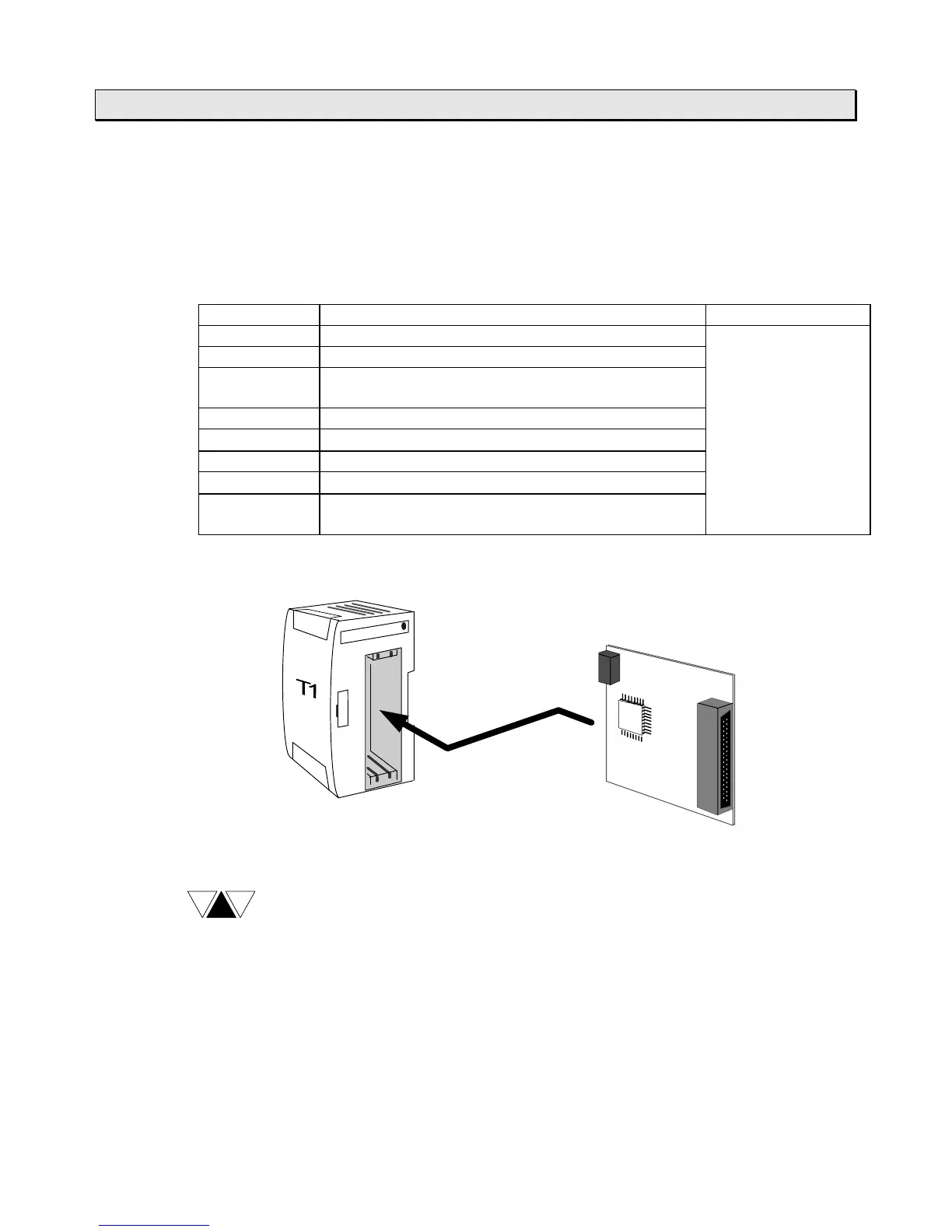

1.5.2 Option cards
The T1-40/T1-40S can hold up to two option cards for expanding I/O points, etc.
The following eight types of the option cards are available.
For details of the option cards, refer to the separate manual “T1/T1S User’s Manual
-
Expansion I/O
-
“.
Type Description Power supply
DI116 16 points input, 24 Vdc - 5 mA Supplied from the
DO116 16 points output, 24 Vdc - 100 mA basic unit (5 Vdc)
DD116 8 points input, 24 Vdc - 5 mA
+ 8 points output, 24 Vdc - 100 mA
AD121 1 channel analog input, 0 to 5 V / 0 to 20 mA
AD131
1 channel analog input,
±
10 V
DA121 1 channel analog output, 0 to 20 mA
DA131
1 channel analog output,
±
10 V
FR112 TOSLINE-F10 remote station,
1 word input + 1 word output
NOTE
T1-40
or
T1-40S
Option card
The TOSLINE-F10 remote card (FR112) can be used with other cards.
However two FR112s cannot be used together.
