2-6 User’s Manual
The Grand Tour
Back side

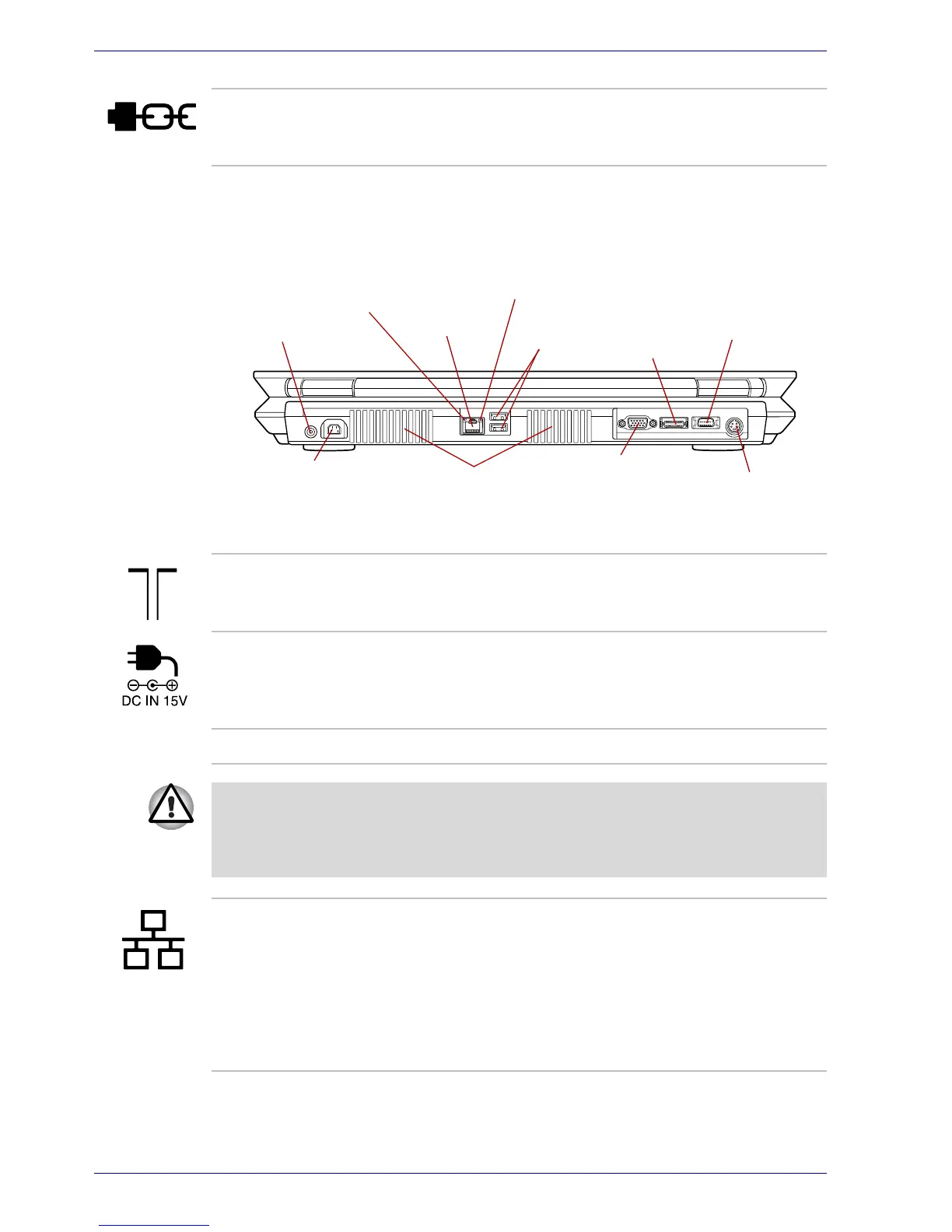

Figure 2-4 shows the computer’s back side.
Figure 2-4 The back side of the computer
Security lock slot A security cable attaches to this slot. The
optional security cable anchors your computer to
a desk or other large object to deter theft.
D-Video out port
S-Video out port
DC IN 15V jack
TV antenna port
LAN jack
USB ports
Cooling vents
External monitor port
HDMI out port
LAN active indicator
(orange)
Link indicator (green)
TV antenna port TV antenna port is provided with some models.
Connect the antenna adaptor to this port to watch
TV programs on your computer or record them.
DC IN 15V jack The AC adaptor connects to this jack. Use only
the model of AC adaptor that comes with the
computer. Using the wrong adaptor can damage
your computer.
Cooling vents Cooling vents help CPU keep from overheating.
Do not block the cooling vents. Never allow metal objects, such as screws,
staples and paper clips, to enter the PC or keyboard. Foreign metal objects
can create a short circuit, which can cause PC damage and fire, possibly
resulting in serious injury.
LAN jack This jack lets you connect to a LAN. The adaptor
has built-in support for Ethernet LAN (10
megabits per second, 10BASE-T), Fast Ethernet
LAN (100 megabits per second, 100BASE-TX)
and Gigabit Ethernet LAN (1000 megabits per
second, 1000BASE-T). The LAN has two
indicators. Refer to Chapter 4, Operating Basics,
for details.
