INTERFACE MANUAL

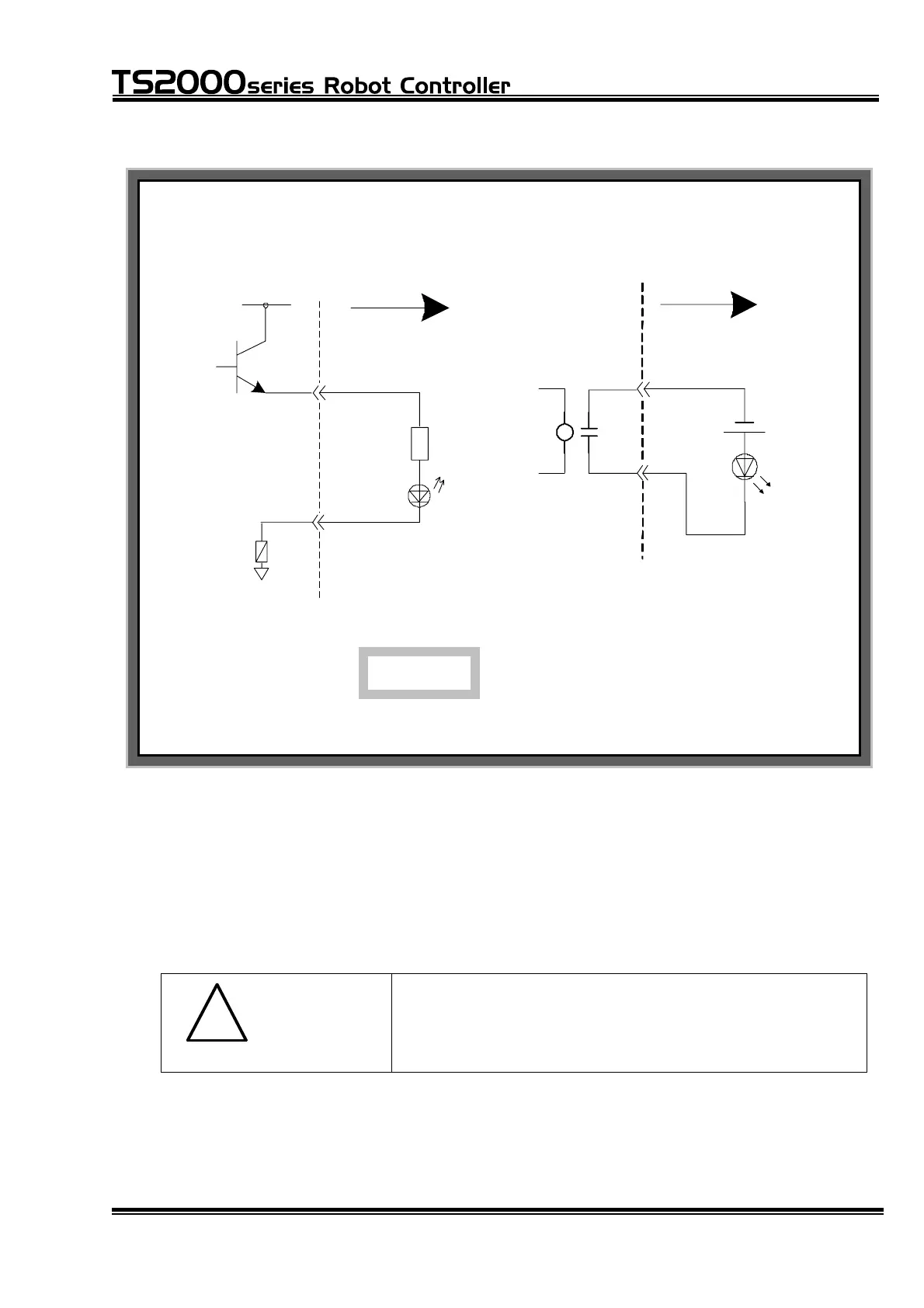

(1) Transistor output
(2) Relay contact output
* The above figure exemplifies a
normal open contact output
structure.
The servo ON contact output is of a
normal open contact type and the
emergency stop contact output is o
a normal close contact type. Take
utmost care when using.
When Type P is selected (when X8HI printed board is used)
User side
External
power
supply
User side
P24V
P24G
[ Source Type (" +" common) ]
●
Type P
• Transistor specification
Rated voltage: DC 24 V
Rated current: 100 mA max.
• Relay contact specification
Maximum rating: AC125 V, 0.5 A / DC60 V, 1.0 A
!
CAUTION
If the current which exceeds the rated output current is
supplied, the output device may be damaged or the
printed board may be burnt. To avoid this, be sure to
use within the rated output current.
STE 71367
– 67 –
