INTERFACE MANUAL
• User parameter setting procedures
* To designate the slave station number of the TS2000/TS2100, observe the
following steps. Under [U12] of the USER.PAR (user parameter) file, you can
find the following parameter setting related to the extension input and output.
[U12] Extend I/O setting
{Use/Not Use} (0: Not Use, 1: Use)
{Not Use}
{Not Use}
= 0
28 20 → Corresponds to station 0.
= 0
28 20 → Corresponds to station 1.
If you wish to use only station 0 (i.e., one (1) TR48DIOCN/TR48DIOC module),
for instance, change the underlined bit corresponding to station 0 to "1".
= 1
28 20
= 0
28 20
After saving the parameter file, turn off the controller power and on again.
Then the above parameter becomes effective.
If you wish to use both stations 0 and 1 (i.e., two (2) TR48DIOCN/TR48DIOC
modules), specify as follows and perform the same operation as above to make
the parameter valid.
= 1
28 20
= 1
28 20

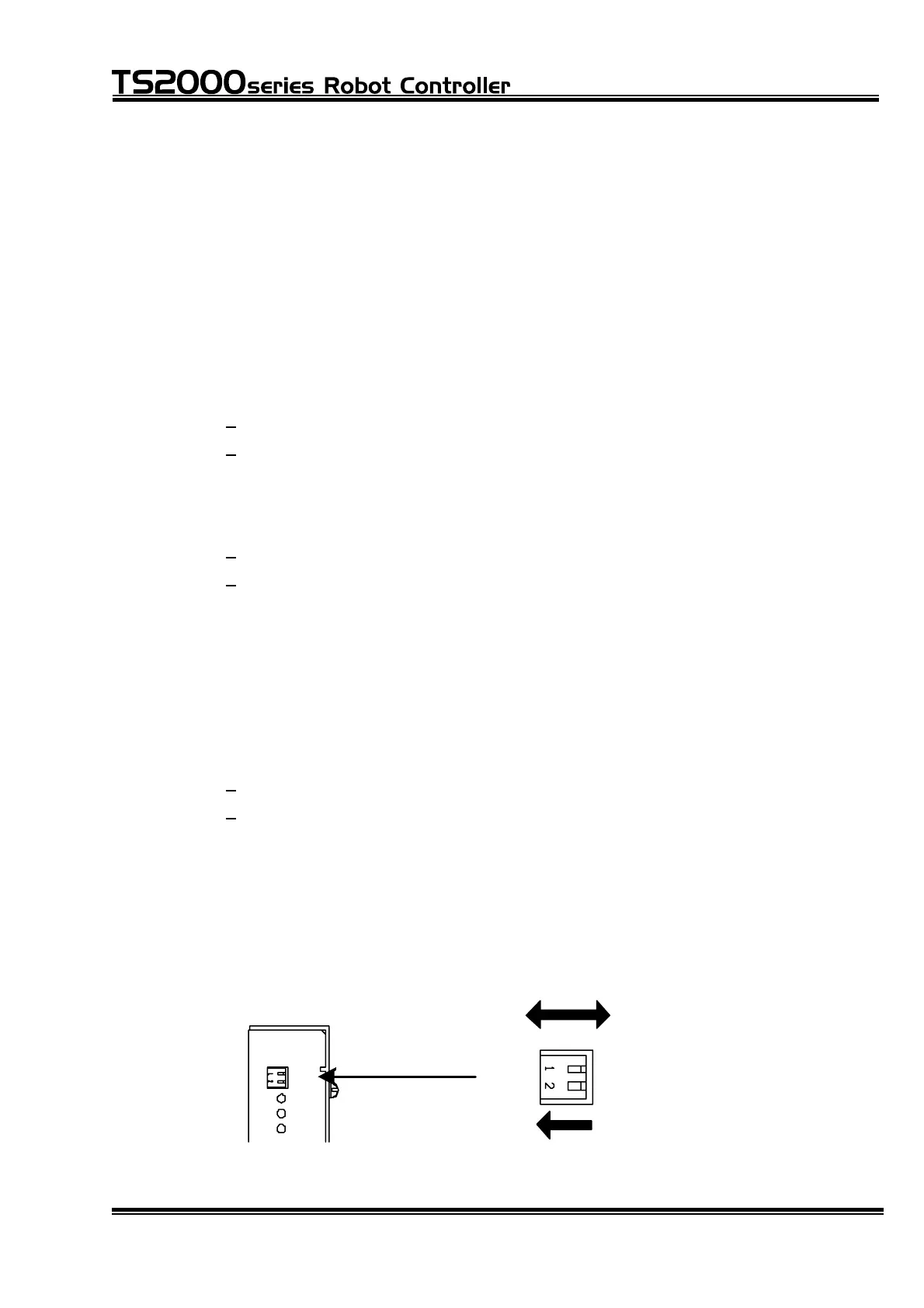

• Station number and terminator setting
The switches (2 pins) provided on the front upper side of the
TR48DIOCN/TR48DIOC module represent pin 1 (upper) for slave station number
setting and pin 2 (lower) for terminator setting.
Terminator ON direction
Setting of slave
station 1
TR48DIOC
Setting of slave
station 0
1
ON
0
POWER
CH
T.R.
RUN
ERROR
OFF
1
ON
0
OFF
CH
T.R.
STE 71367
– 95 –
