model 3000 DeviceNet Module Manual (DN311/DN311A)
Chapter 3 Preparations for Operation (Hardware)
3

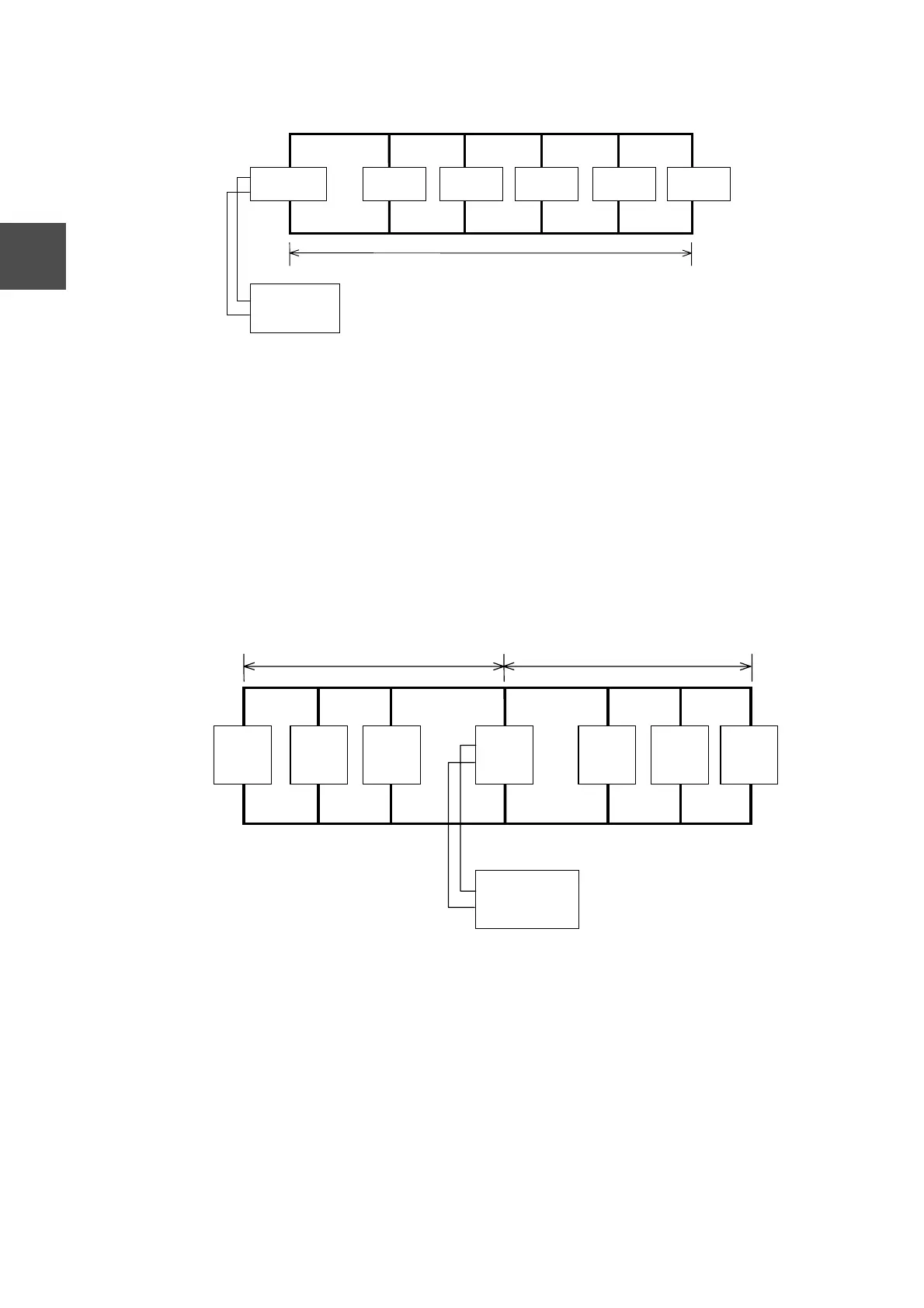

Figure 3-11 Example of Single Power Terminal Connection
(4) Single Power Unit Central Connection
Shown below is an example of configuration where a network power unit is installed
at the center of a trunk line (thick cable) 240 meters in overall length. The current
consumption of each node is shown in the figure below.
The central location of the network power unit permits supply of the maximum current
in all directions of the network.
Figure 3-12 Example of Single Power Unit Central Connection
(a) Total current consumption of section 1
(a’) Total current consumption of section 2
(b) Overall power cable length of section 1 = Overall power cable length of section 2
= 120 m
(c) Maximum current that can be supplied to the cables based on Figure 3-10 =
About 2.56 A (Obtained by linear approximation of 100 to 150 m)
(d) Since the total current consumption is smaller than the maximum current, power
can be supplied to all the nodes by single power unit central connection.
(e) Install a network power unit with a rated current capacity of 0.65 A or more.
(Select one with an adequate capacity, considering the conditions of use.)
