4.3 Requests to the DN311
4
4.3.3 Parameter setting request (local node)
(1) Function
This request is used to set the local node parameters of the DN311. This request can
be issued only when the DN311 is in standby mode.
After setting the local node parameters and slave device parameters, set the DN311
in run mode (transmission enabled) by following 4.3.5 Operation mode control
request. If the slave device parameters have already been set in the non-volatile
memory of the DN311, set only the local node parameters, then set the DN311 in run
mode by an operation mode control request. (Local node parameters cannot be set
in the non-volatile memory.)

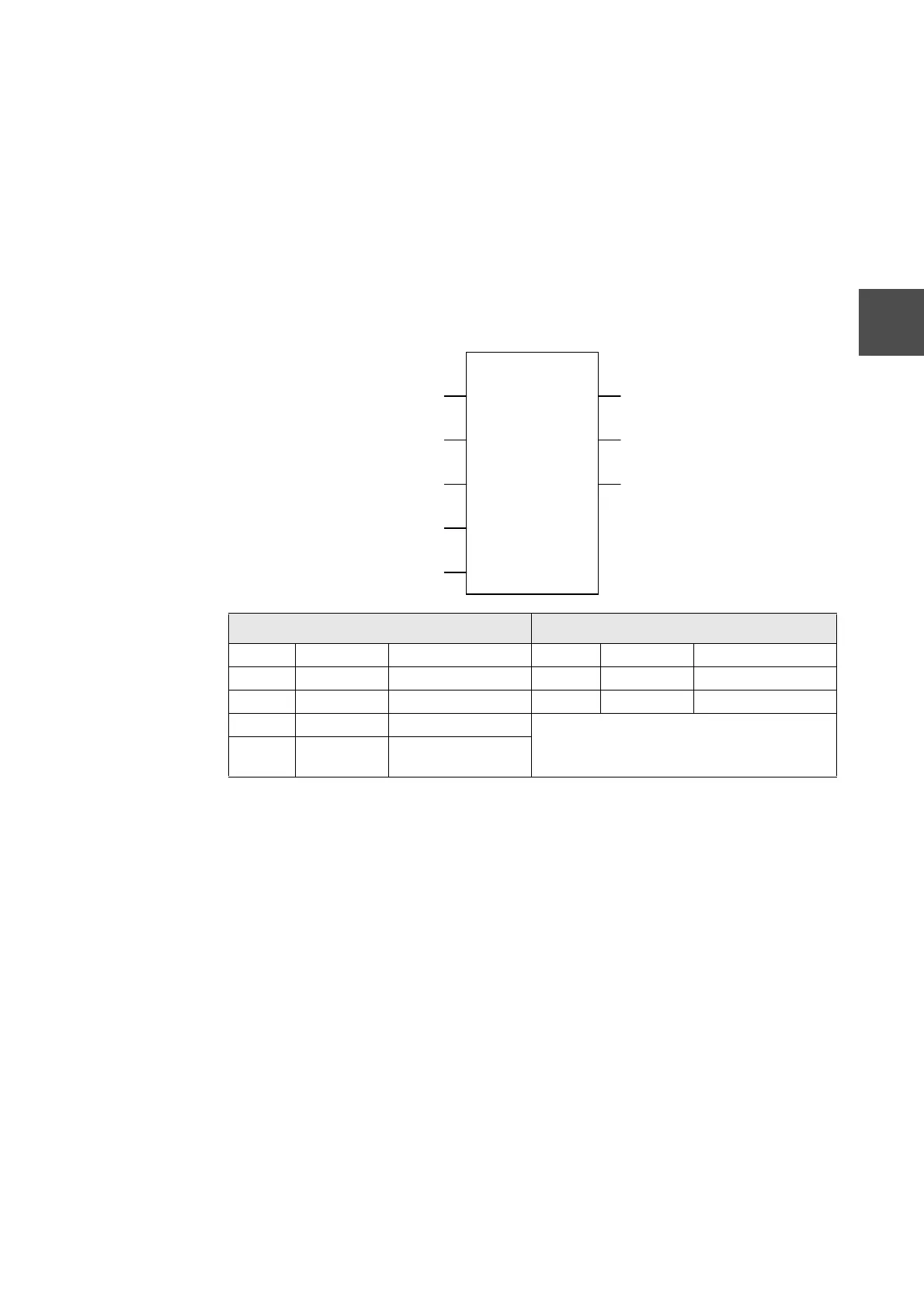

(2) Diagrammatic representation (Function block)
(3) Description of operation
(a) When REQ is TRUE, the local node parameter setting request for the module
specified by CH, UNIT, and SLOT is processed.
(b) PARA_LOCAL is explained in the next item.
(c) After processing the local node parameter setting request, DONE is turned
TRUE.
(d) If the local node parameter setting request is not completed in 2 seconds or more
due to an error or the like, ERR and DONE are turned TRUE.
(e) Completion status is output to STATUS.
(f) If REQ is FALSE, both DONE and ERR turn FALSE.
(g) When this function block is started (when REQ is turned TRUE), keep REQ
TRUE till DONE becomes TRUE.
Input Argument Output Argument
REQ BOOL type Execution enabled DONE BOOL type Completed
CH WORD type Channel No. ERR BOOL type Error
UNIT WORD type Unit No. STATUS WORD type Completion status
SLOT WORD type Slot No. For description of completion status, see
Section 4.5.
PARA_
SLAVE
Structural
data type
DN311 parameter set
values
DN_LOCALSET
CH
REQ
DONE
UNIT
SLOT
ERR
PARA_LOCAL
STATUS
