- 10 - tousek / E_PULL-T24-T24speed_49002410 / 06. 08. 2019
signal lamp
230V, 100W
power supply 230V a.c.
violet
input switch-mode power supply
violet 230V a.c.
Contact for photocell
Common PHC-contact
Power supply photocell receiver
Power supply photocell transmitter
common photocell
Main safety sensing edge
Side safety sensing edge
common contact safety edge
Pedestrian-switch
CLOSE-switch
common
Impulse-switch
STOP-contact

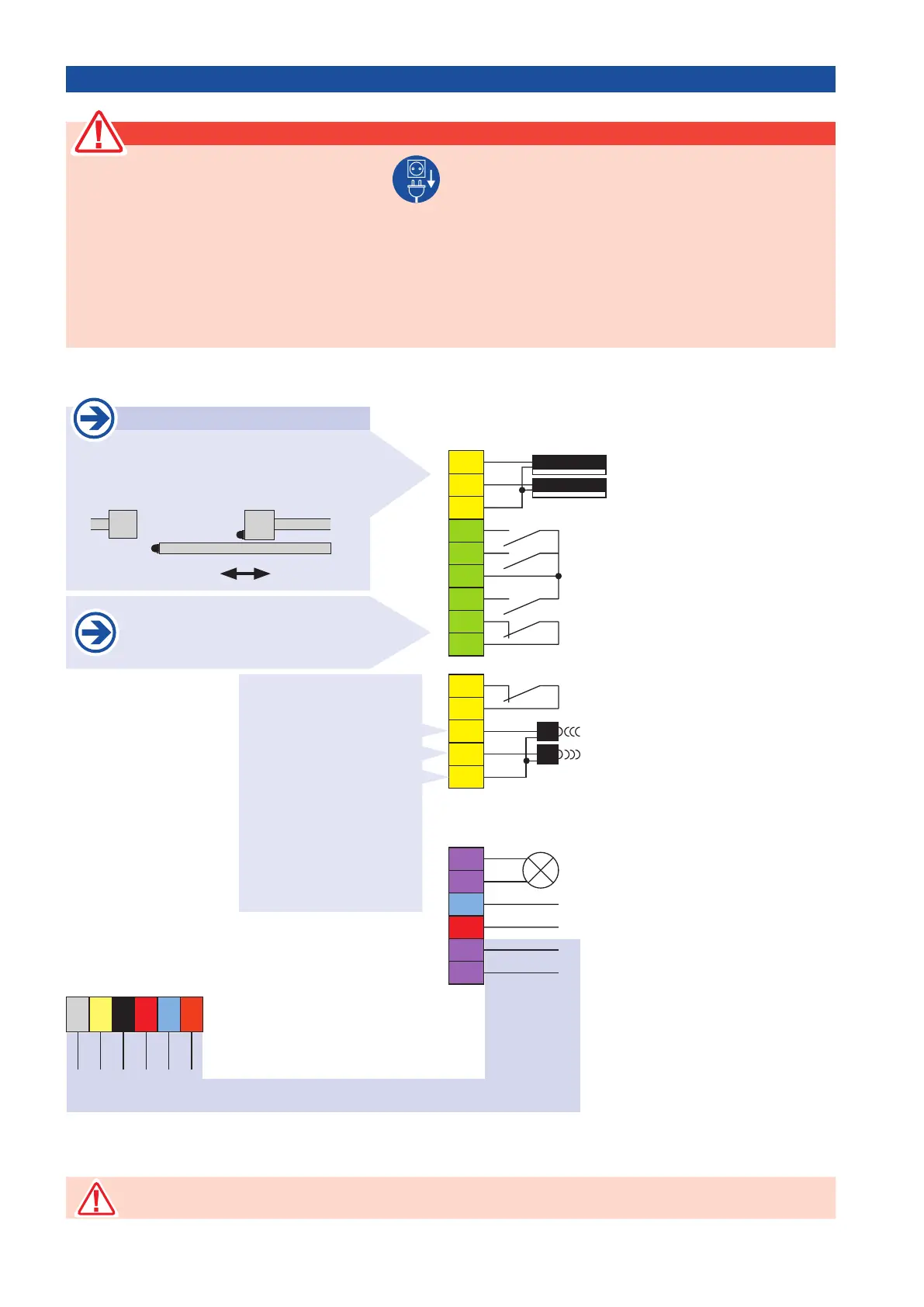

3.1 Terminal assignment Sliding gate operator PULL T24, -T24speed
Attention
• Before taking o the control cover, the
mains switch must be turned o!
• If the control is power supplied, its inner part is under
tension.
• In order to avoid electrical strokes, the safety regula-
tions have to be kept.
• The device may only be connected by trained profes-
sionals
• The product is not suitable for installation in explosion-
hazardous areas.
• An all-pole disconnecting mains switch with a contact
opening gap of min. 3 mm has to be foreseen. The
gate facility has to be secured according to the valid
safety regulations!
• IMPORTANT: The control lines (buttons, radio, pho-
tocells, etc.) have to be laid separately from the 230V
lines (supply line, motors, signal lamp).
grey
battery connection 24Vd.c. (optional)
yellow
black
motor 24V
red
blue
Connection block supply and
orange
supply max. 24Vd.c., 5W
(accessory)
pre-wired
40
41
43
45 46
3137 32 30 33 34
525150
1
14 10
15 11
L
N
8.k2
8.k2
85
84
16
19
18
17
–
+
–
+
L
N
–
+
-
-
+
24V
=
24V
=
Terminals 40/41 and 40/43
in gate position CLOSE
(ready for use) are in eco
mode (= without tension).
Important: no external ac-
cessories are allowed on
these terminals!
N
The stop input has no emergency stop function! - In order to ensure the emergency stop function, provide
the supply line with an all-pole disconnecting emergency stop switch, that locks after actuation!
Safety sensing edges
Function main safety sensing edge (MCE):
Safety during closing
Function side safety sensing edges (SE):
Safety during opening
MCE
SE
CLOSE OPEN
If no stop switch is connected, termi-
nals 31/37 have to be wire-bridged.
