2.5 Dismantling
The dismantling of motor is made the other way around of mounting.
Before dismantling please plug o power supply of motor !

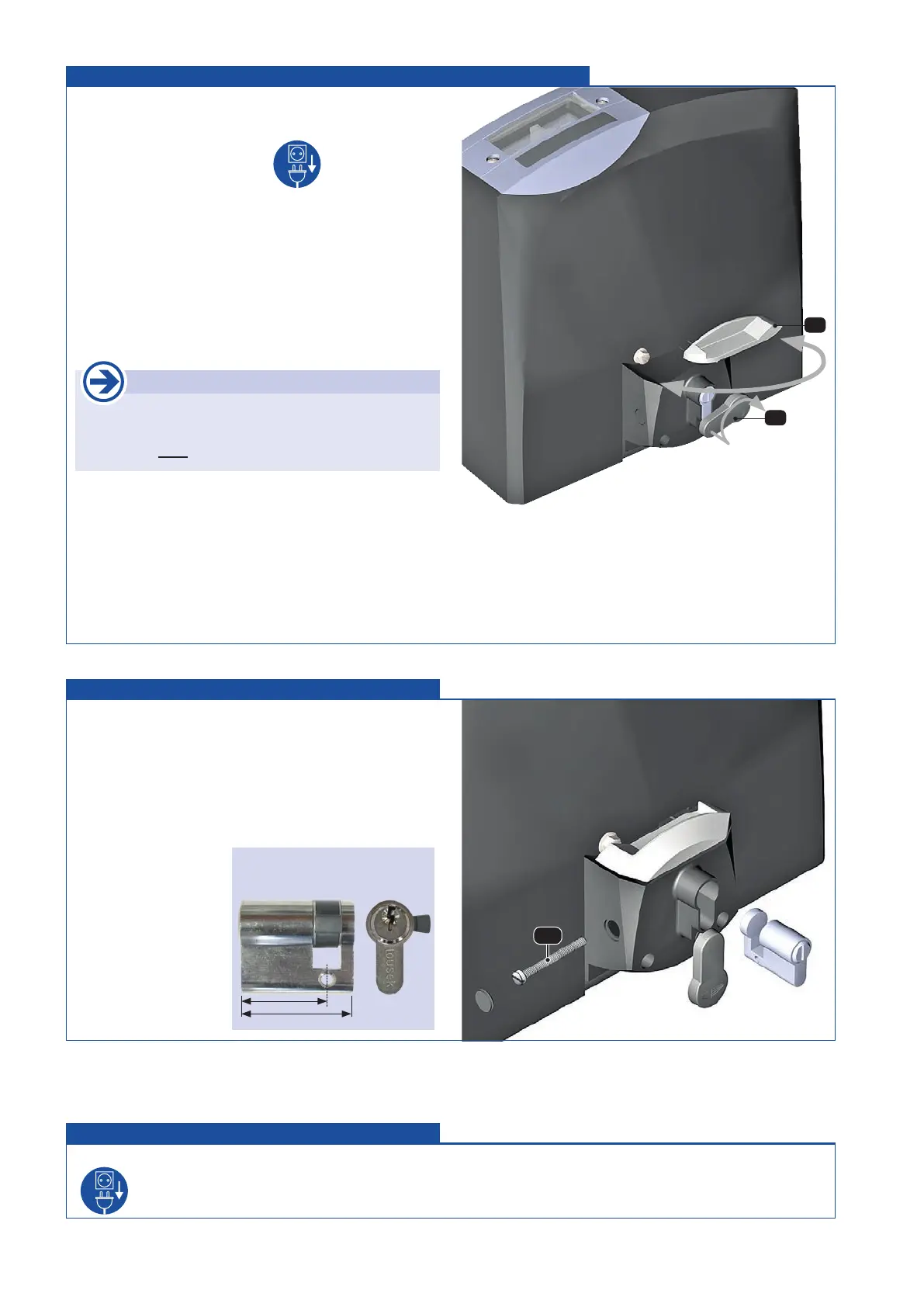

Handle in picture shows unlocked position
In case of a power failure or other defect the drive pinion
can be disengaged from the gearmotor as follows:
• Switch o power supply
• Slide key-cover (A) slightly to the front and turn it away.
Insert the key and turn it clockwise to its limit stop (the
emergency release mechanism can be key-locked both
in the engaged and in the disengaged position).
• Turn the handle 180° counter-clockwise (viewed from
above). The gate can now be manually opened or closed.
Re-engaging the emergency release mechanism:
To return to normal motor operation please turn the handle
back to its original position (i.e. 180° clockwise)
Important
• after the handle is back in normal position, slowly
move the gate manually in its travel direction until
you can hear that the gearing has re-engaged!
Then lock it again and remove the key.
With next command the motor searches the open position (a
new learning of end positions is not necessary).
H
A
• Remove the screw protection cap and turn out the
screw (S).
• Turn the cylinder protection cap down, insert the key,
turn it approx. 90° clockwise, and pull out the cylinder.
• To re-insert the cylinder please carry out the above
steps in the reverse order
S
40
30
Lock half cylinder (PHZ) with
3 keys (product code: 13300220)
2.4
Exchanging the lock half cylinder
Sliding gate operator PULL T24, -T24speed
