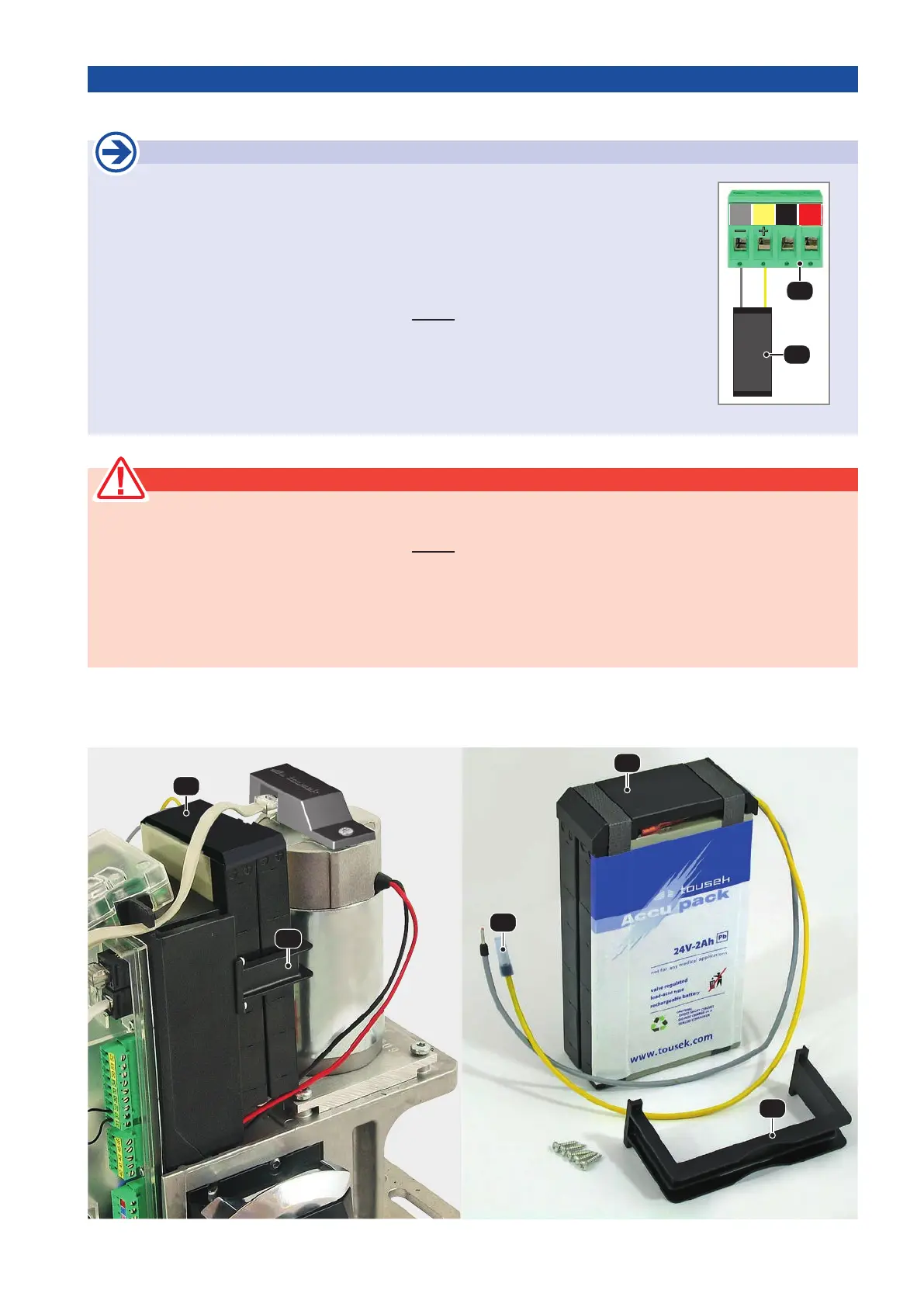

5.1 Battery connection Sliding gate operator PULL T24, -T24speed
B
S
NB
NB
B
Important for use with emergency battery
• The motor can be equipped with an additional optional battery (NB),
which can be integrated into the operator and can be xed with boltable bracket (B).
IMPORTANT BEFORE CONNECTION OF BATTERY:
• Mount the operator completely.
• Make the electric wiring incl. 230V connection.
• Make sure that there is a 230V power supply before connecting the battery.
• Disconnect the 4pol. clamp block (KL).
• Grey battery cable (- Pol) → connect to control terminal 18.
• Remove protection tube (S) of yellow battery cable.
• Yellow battery cable (+ Pol) → connect to control terminal 19.
• Connect the 4pol. clamp block (KL) again.
IMPORTANT
• Make the battery connection with great care, so that there is no short-circuit (the battery is pre-loaded !)
• Make sure that there is a 230V power supply before connecting the battery
• For repair and maintenance works please remove rst the clamp block/terminal (KL) and then turn o󰀨 the
230V power supply !
• When reconnecting again rst turn on the 230V power supply and then attach the clamp block/terminal (KL).
grey yellow
NB
1918 8584
KL
–
+
