tousek PULL T24 - Diagnosis

tousek / E_PULL-T24-T24speed_49002410 / 06. 08. 2019 - 23 -
Note: The factory settings of the single menu
points are marked with in this manual.
The mechanical stops have to be placed so
that possibly existing safety contact edges
can not be triggered, as this would lead to
an error message.

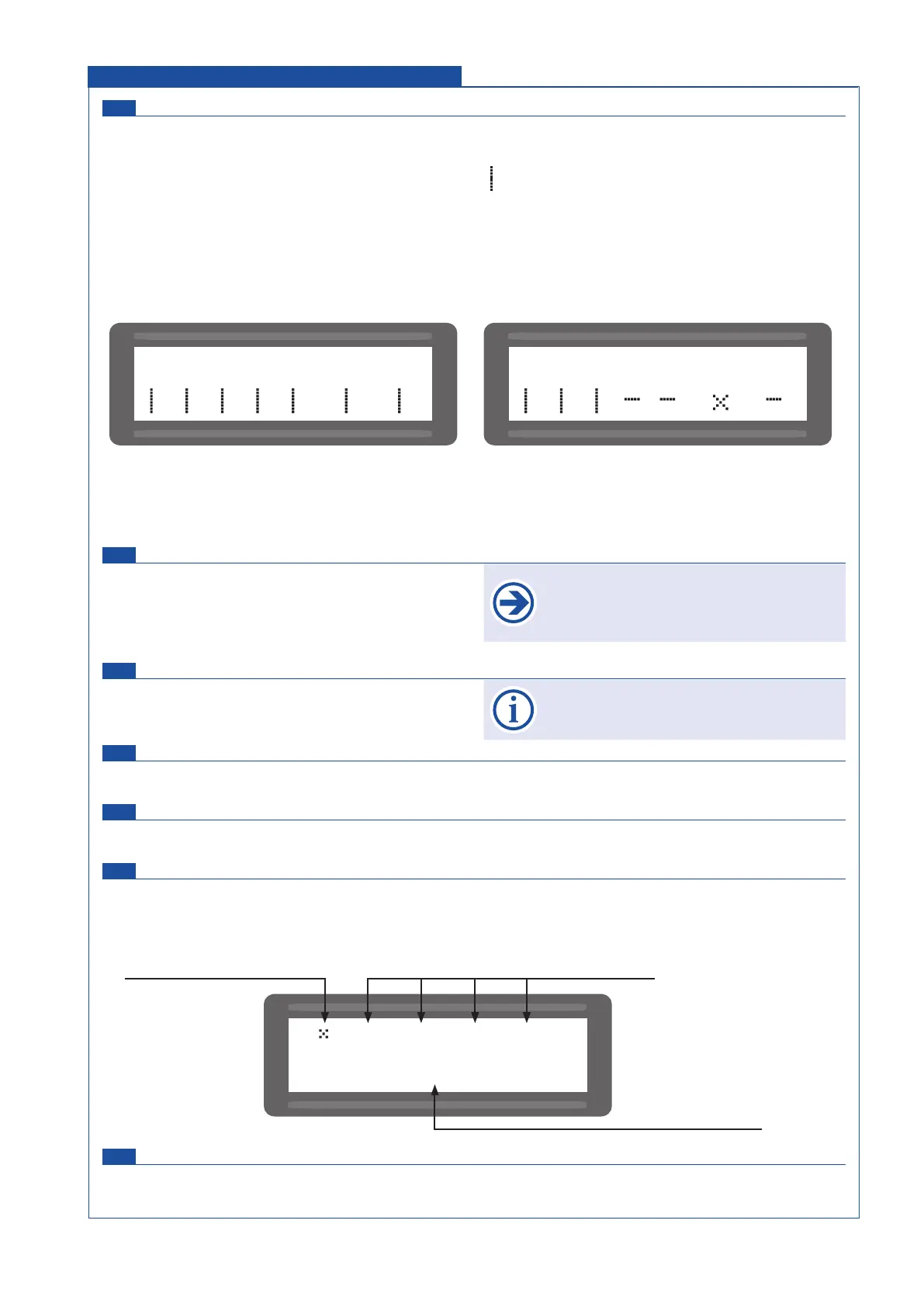

Status display Diagnose
 Status display for inputs as photocell, safety sensing edges, stop button, impulse switch ....
I Impulse-button
P pedestrian entry
C CLOSE-button
S STOP-button
Ph photocell contact
ME main safety edge
SE side safety edge
Delete position Diagnosis
 NO: does not delete the end positions “gate closed”
and “gate open”
 YES: the determined end positions are beeing deleted.
Note: the end positions will be determined after new impulse.
Factory setting Diagnosis
 NO: no reset back to factory settings
 YES: reset back to factory settings
Software version Diagnosis
 shows the software version on display
Serial number Diagnosis
 shows the serial number on display
Protocol Diagnosis
 shows the protocol list on display: all events that take plce are protocolled in this list -
with the buttons + and - the single events can be seen:
Status Sensor Diagnosis
 Degree and signal strenght of rotation speed sensor is shown on display.
All inputs okay.
for example
Diagnosis Connections and adjustments
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
I P C S PH ME SE
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
I P C S PH ME SE
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
T -00 00:00:00.0
Event
With
*
the protocol beginning
hence the end is shown
Type of event
Time since the last event:
DAYS HOURS : MINUTES : SECONDS
Impulse-, pedestrian - and close button not triggered.
STOP-button and photocell are triggered.
Contact strip (main closing edge) not connected or defect.
contact strip (side closing edge) triggered.
$
Status: not triggered
$-
Status: triggered
$x
Status: contact strip not connected or defect
$o
Status: contact strip or photocell deactivated in menu
