tousek PULL T24 - 3 Control Unit, Overview

tousek / E_PULL-T24-T24speed_49002410 / 06. 08. 2019 - 9 -
ground
connection
Grounding
The grounding connection is made
on the operator housing with the
designated grounding screw!
K
F
FE
ZM
S
D

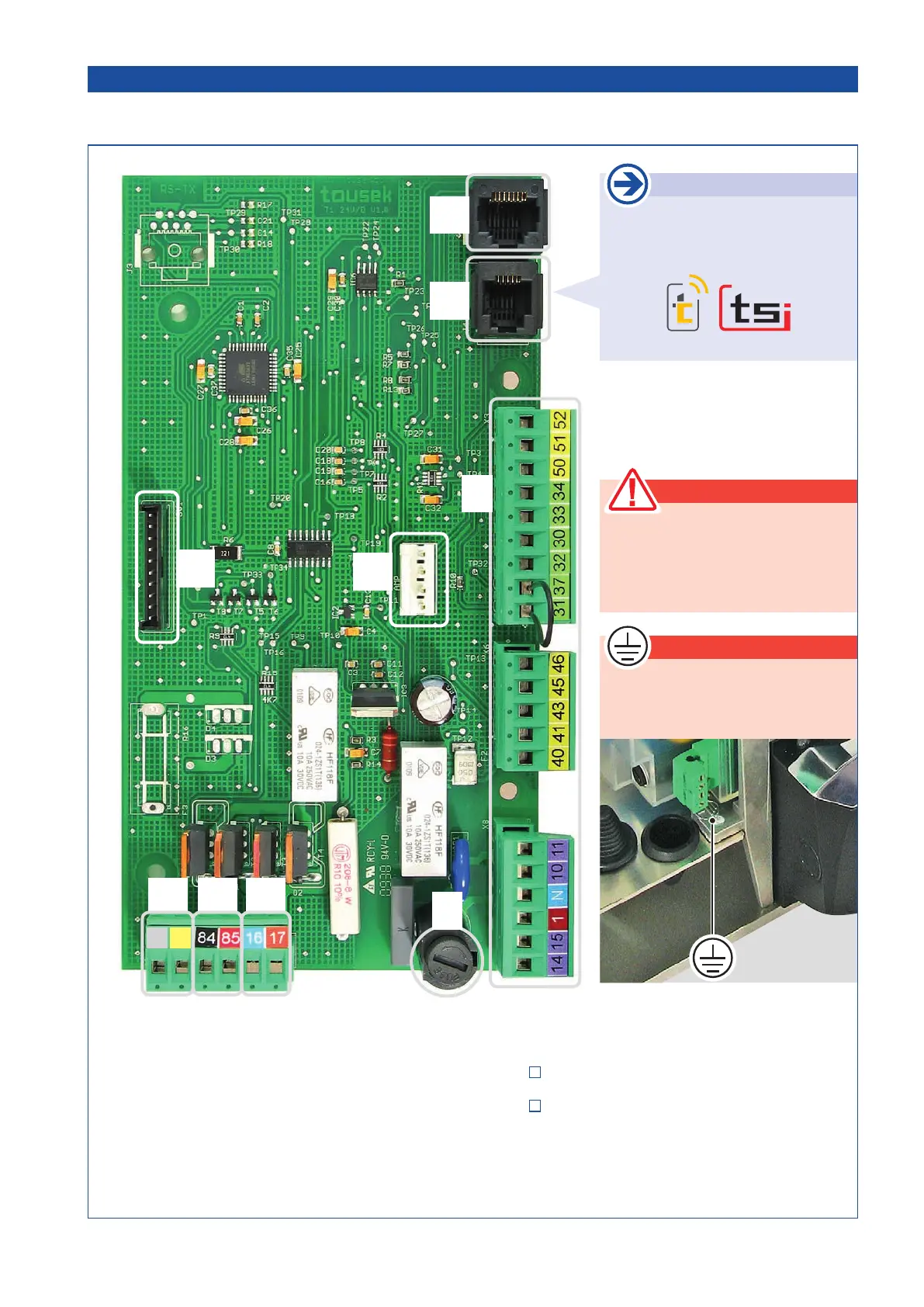

Elements of control board
(K) Terminal blocks
(KE) Connector for battery 24Vd.c. (optional)
(KM) Motor clamps
(KN) Power supply low tension 24Vd.c.
(S) Sensor plug
(D) Display plug
(FE) Slot for optional radio receiver
(

page 24 for connection)
(ZM) Connection slot for optional module
(

page 22)
(F) Safety fuse T 4A
1918
KE
– +
KM
– +
KN
– +
3. Control board Sliding gate operator PULL T24, -T24speed
Attention
During connection, adjustment and
maintenance works please take care,
that the electronic circuit board won´t
be damaged by moisture (rain).
Important
The optional „tousek-connect“ or the
„tousek service interface“ must
be connected with socket (D)!
Overview of the control unit
