tousek PULL T24 - 5 Initial Operation

tousek / E_PULL-T24-T24speed_49002410 / 06. 08. 2019 - 25 -
Important: preparation works
• Connect control panels, safety devices to the motor in compliance with the safety regulations.
Attention: if no stop switch is connected then the terminals 31/37 have to be bridged.
•
The mechanical limits have to be placed so that contact edges are not triggered, as this would lead to an error message.
• Unlock emergency release of operator and set gate to half-opened position. Then lock the operator again.
• Switch on the system (assuming proper connection).
• Important: Putting into operation in Impulse mode (standard setting) and not in dead man mode.
• During initial operation the choice of language is made rst, then in the “Basic settings” the adjustment of most impor-
tant operator settings and after the system test, the automatic detection of limit positions of gate is made.
Note: during operation with the basic setting for limit positions OPEN/CLOSE (=-5), the limit stops will not be
reached (only with adjustment = 0)

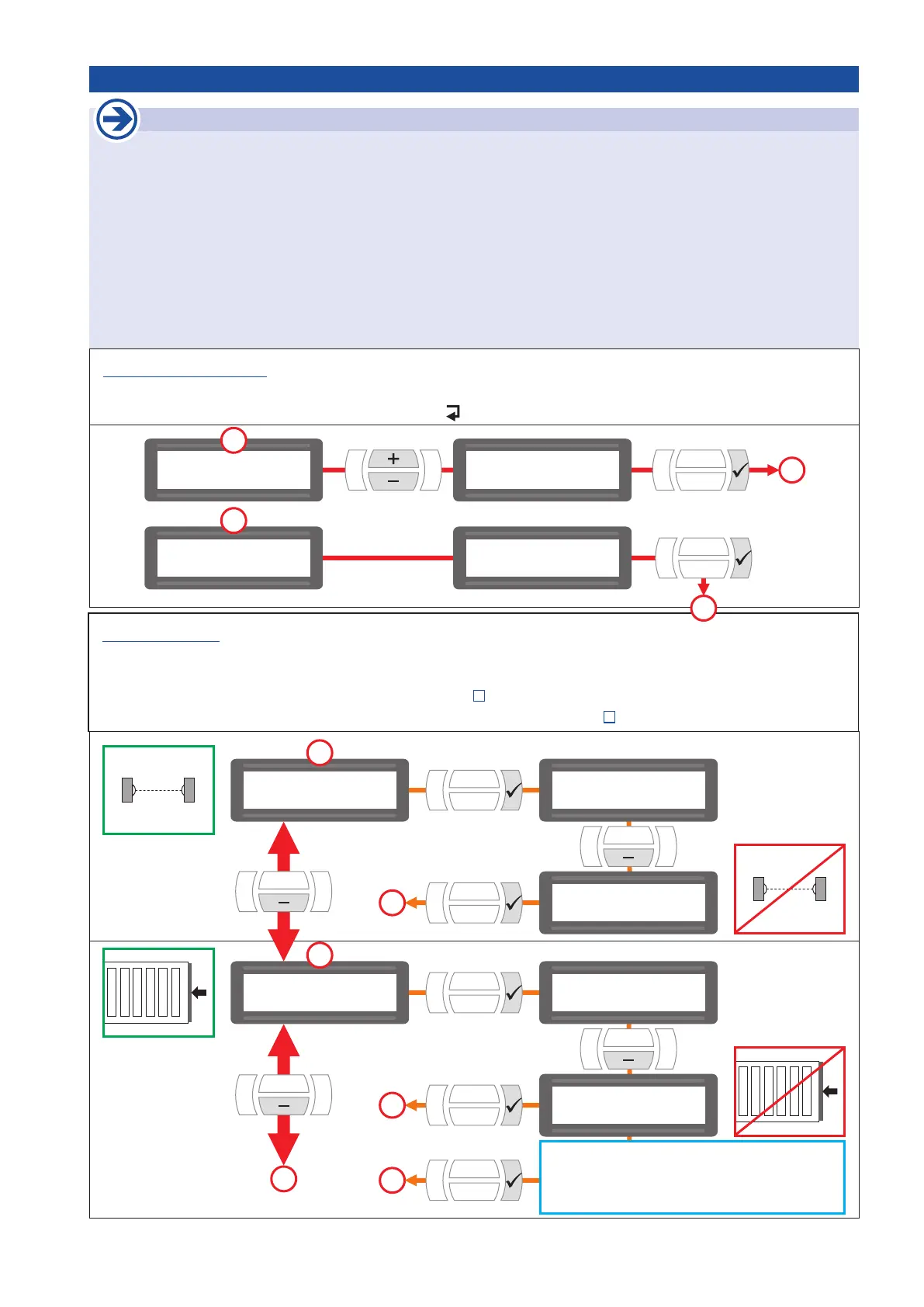

5. Putting into operation Sliding gate operator PULL T24, -T24speed
BASIC SETTINGS
• For setting the most important adjustments for initial operation of motor.
• Can be selected during initial operation (hence when restoring the factory setting).
• All safety devices are activated when leaving factory (

page 12).
• The next programming adjustments are made in the main settings menu (

page 11, 12).
LANGUAGE SELECTION
• Can be selected during initial operation (hence after reset to factory settings).
• Can be also chosen by pressing the ESC button
( ) for 5s, from any position in menu.
4
conrm
additional options (with „-“ button):
 radio ege TX
 TX 400
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
photocell
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
main safety edge
3
3
4
4
5
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
photocell
active
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
main safety edge
active
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
photocell
not active
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
main safety edge
not active
conrm
conrm
change ? YES
change ? YES
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
Tousek Vx.x
2
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
basic settings
conrm
3
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
Sprache-language
Deutsch
2
1
scroll conrm
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
Sprache-language
English
