tousek ST 63 - 5.3 STA 11 Connections and Adjustments; Induction Loop Connections for STA 11; Impulse Switch Connections for STA 11; STA 11 Limit Switch Input

- 36 - tousek / EN_ST-63_02 / 25. 03. 2020
Induction loops
• For the use of induction loops (for Green/Opening command) the I-loop slot (ISD) of the tra󰀩c light board
STA 11 has to be equipped with an optional avalaible I-loop detector ISD 6 (2-channels). (

page 38)
Adjustments
• The functions of the tra󰀩c light control is determined by the settings of the connected operator control board.
These relate to the duration of the green phase and the clearance time, the tra󰀩c light at the closed door position
(whether or continuous red) and the tra󰀩c light logic (both sides / one side green).

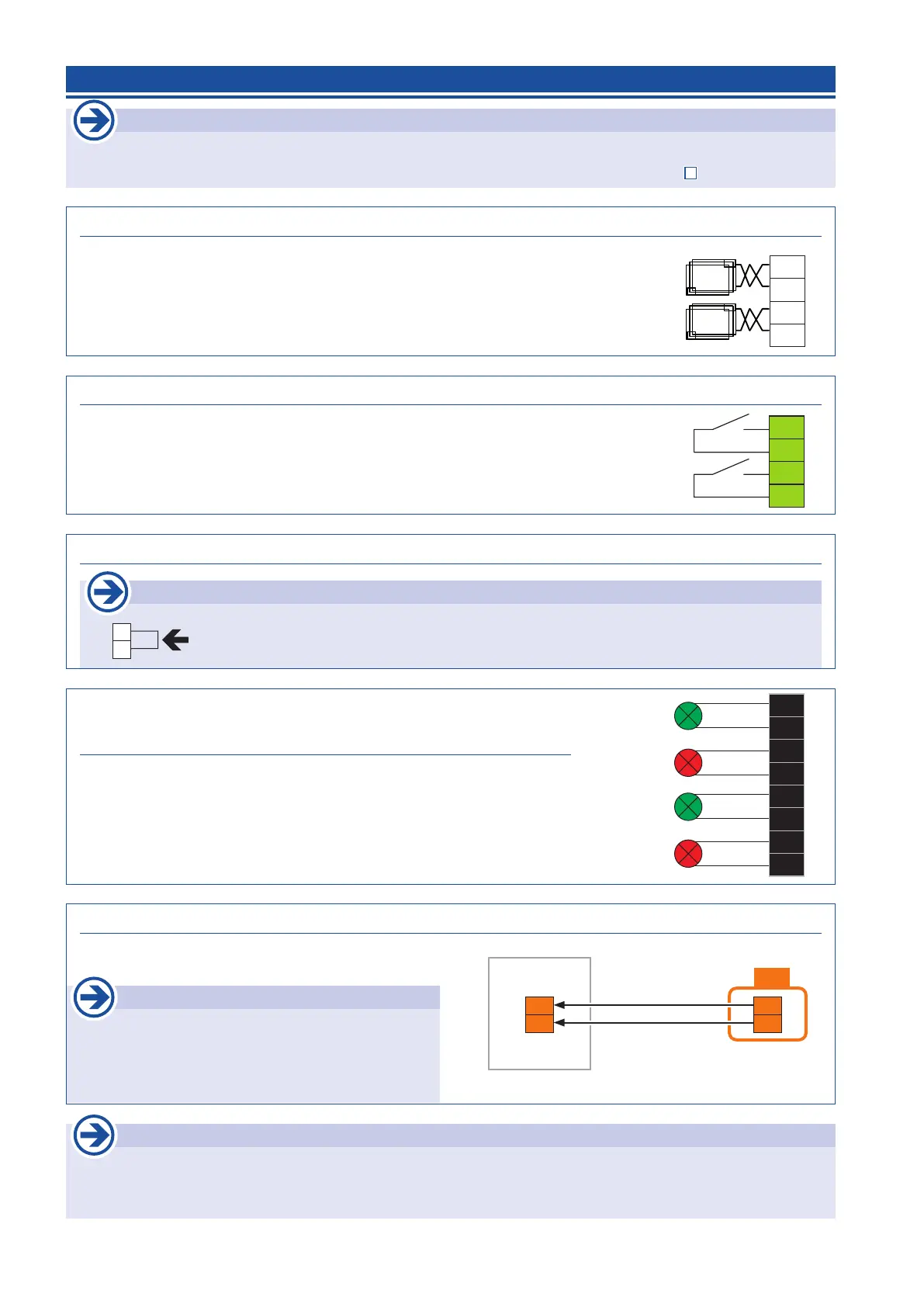

5.3 Connections and adjustments Tra󰀩c light control unit STA 11
9/1
9/2
9/3
9/4
induction loop
outside
induction loop
inside
Induction loop input (outside: term. 9/1+9/2, inside: term.9/3+9/4) Connections
• For the connection of induction loops to give an impulse to the green request.
• With the 2-channel I-loop detector ISD 6 both loops (inside/outside) can be
evaluated.
STA 11
Impulse switch (outside: term. 38/30, inside: term. 32/30) Connections
• For the connection of impulse switches on the inside and outside to give
an impulse for the green request. The impulse is also possible via an
optional, plug-in radio receiver.
• The green switching for one or both sides is dependent on the adjustment
of the tra󰀩c light logic of the operator control board (see according manual).
38
30
32
30
impulse switch
outside
impulse switch
inside
STA 11
Tra󰀩c light outputs
outside: GREEN: term. 97/6, RED: term. 99/6
inside: GREEN: term. 96/6, RED: term. 98/6)
Connections
• on the described terminals Red/Green tra󰀩c lights (230V max. 60W) can be
connected for inside and outside location.
97
6
99
6
96
6
98
6
GREEN
outside
RED
outside
GREEN
inside
RED
inside
230V max. 60W
STA 11
B
operator control unit
Bus
High
Bus
Low
88
89
88
89
STA 11
ST 63
Important
• Max. cable length between automation and tra󰀩c
light control is 25m.
• Cable type e.g.: shielded control cable
YSLY 2 x 1mm
2
oder gleichwertig.
Connection tra󰀩c light board with operator control board (term. 88/89) Connections
• Via the bus system (see pic.) the tra󰀩c light control board
is connected with the operator control board.
Important
60
61
STA 11
With the control unit ST REX no limit switch connection at the tra󰀩c control unit
STA 11 is necessary, instead the terminals 60/61 must be wire bridged!
Limit switch input (term. 60/61) Connections
