tousek ST 63 - 5.4 Optional Radio Receiver for STA 11; Radio Receiver Installation and Usage Notes

tousek / EN_ST-63_02 / 25. 03. 2020 - 37 -
Important
• With the use of the 2-channel-receiver the rst chan-
nel takes over the function of the impulse button
outside and the second the function of the impulse
button inside.
• For programming of receiver please see manual for
radio receiver.
FE
E
STA 11
FE
STA 11
5.4 Radio receiver (optional) Tra󰀩c light control unit STA 11
Important
• When using a radio receiver in tra󰀩c light mode, the receiver is not to plugged into the slot of the ST 63, but
into the slot of the tra󰀩c light control STA 11 !
• Disconnect the power supply.
• Open tra󰀩c light control housing

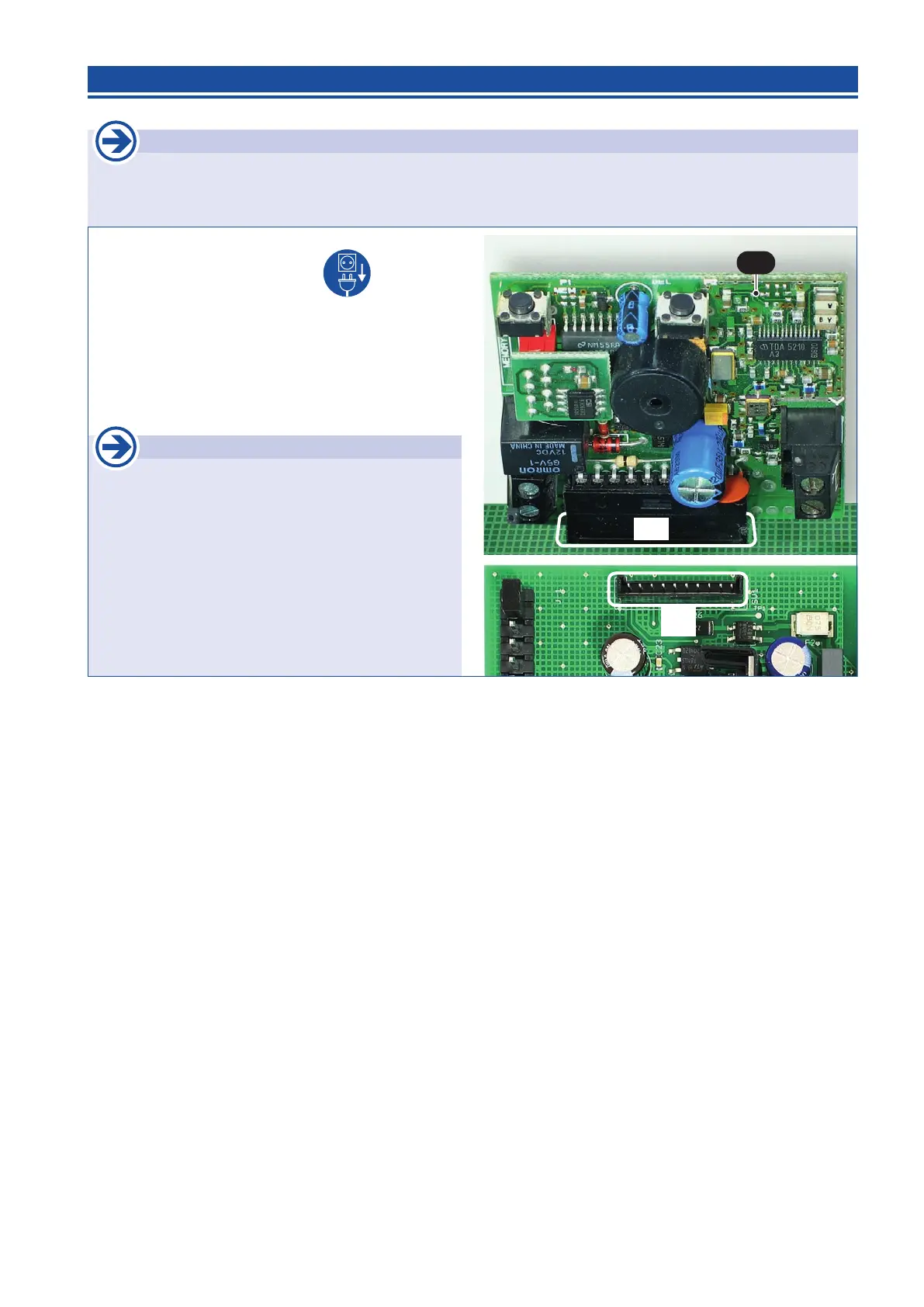

• Plug-in the receiver printed circuit board (E) RS433/868-
STN1 (1 channel) or RS433/868-STN2 (2 channels)
into the corresponding slot (FE) as shown in the picture.
• For range extension an external antenna FK433 or FK868
can be connected.
