5.11 Emergency Release of the winch
To lower the lifting platform in the event of a radio remote control failure, it can be manually
switched to the power supply. The power supply is plugged behind the e-cube.
1. Turn o the aircraft tug by pressing the two battery disconnect switches (e-Stops)
2. Remove the winch cover and the emergency cover underneath.
3. Pull the marked plug and put it in the free position on the opposite side. It is important to
pay attention to the correct, colored marking.
4. Now, the winch can be supplied with power via the left battery disconnect switch in the
direction of travel. Care must be taken to press the battery disconnect switch (e-Stop) (-) in
good time to disconnect the power supply. It is essential to ensure that the emergency
disconnect switch is disconnected or the e-Stop is pressed as soon as the turntable is
lowered.
5. After the lifting platform has been lowered, the power supply of the winch must be
returned to the standard position.
ATTENTION: The direct connection of the winch to the power supply bypasses
the limit switches. It is essential to ensure that the winch is switched o in su-
cient time. Otherwise the steel cable guide may be damaged.
ATTENTION! After this emergency procedure has been carried out, an in-depth
inspection of the steel cable is required! If power is not disconnected in time
there is a possibility of the cable unwinding!
ATTENTION! Electric hazards are present with the covers removed. This pro-
cedure requires special care. Failure to do so may result in personal injury and
property damage!
ATTENTION! There is a risk of crushing during this process.

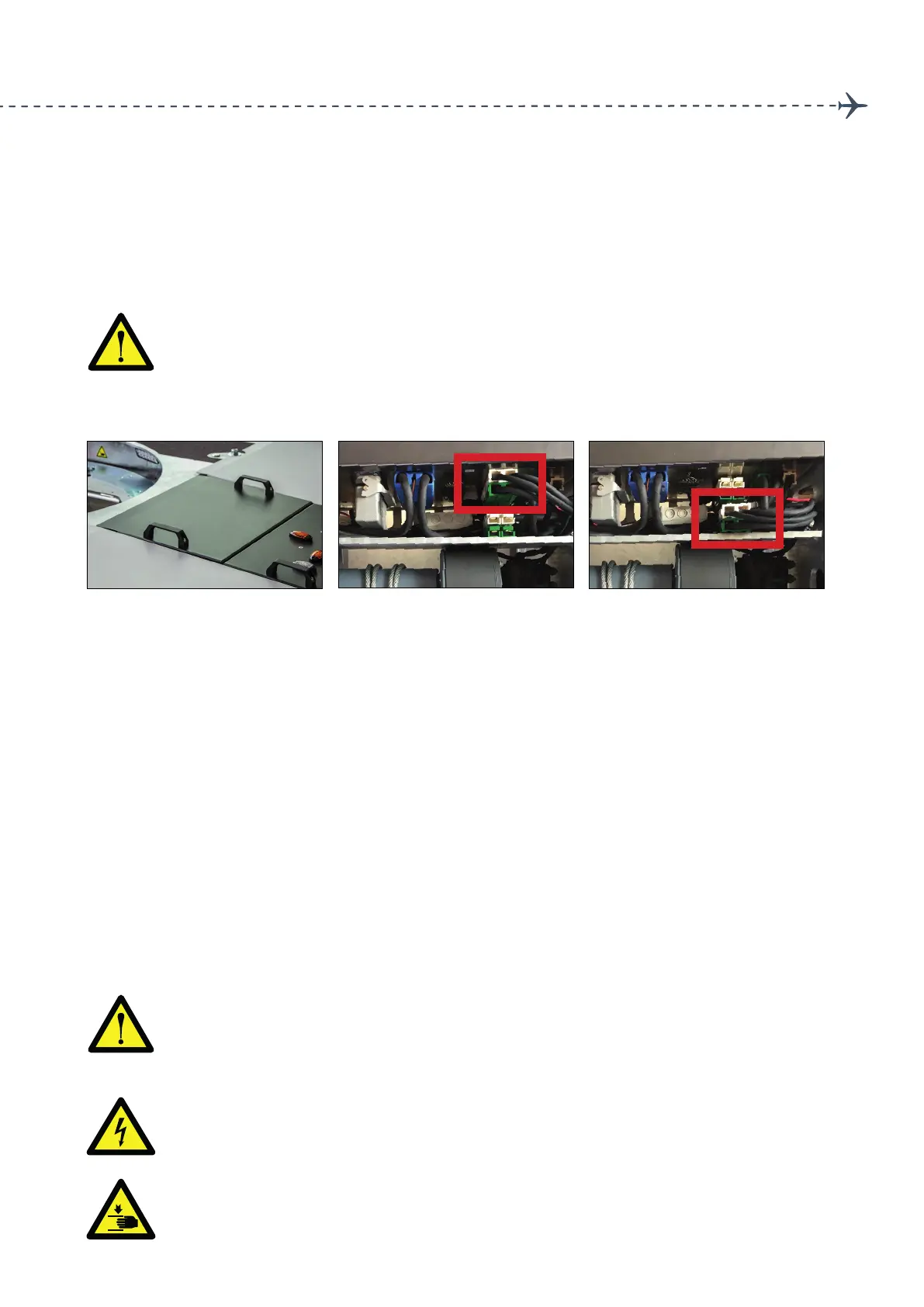

Default Position Position for the Emergency ReleaseCover of the Winch
