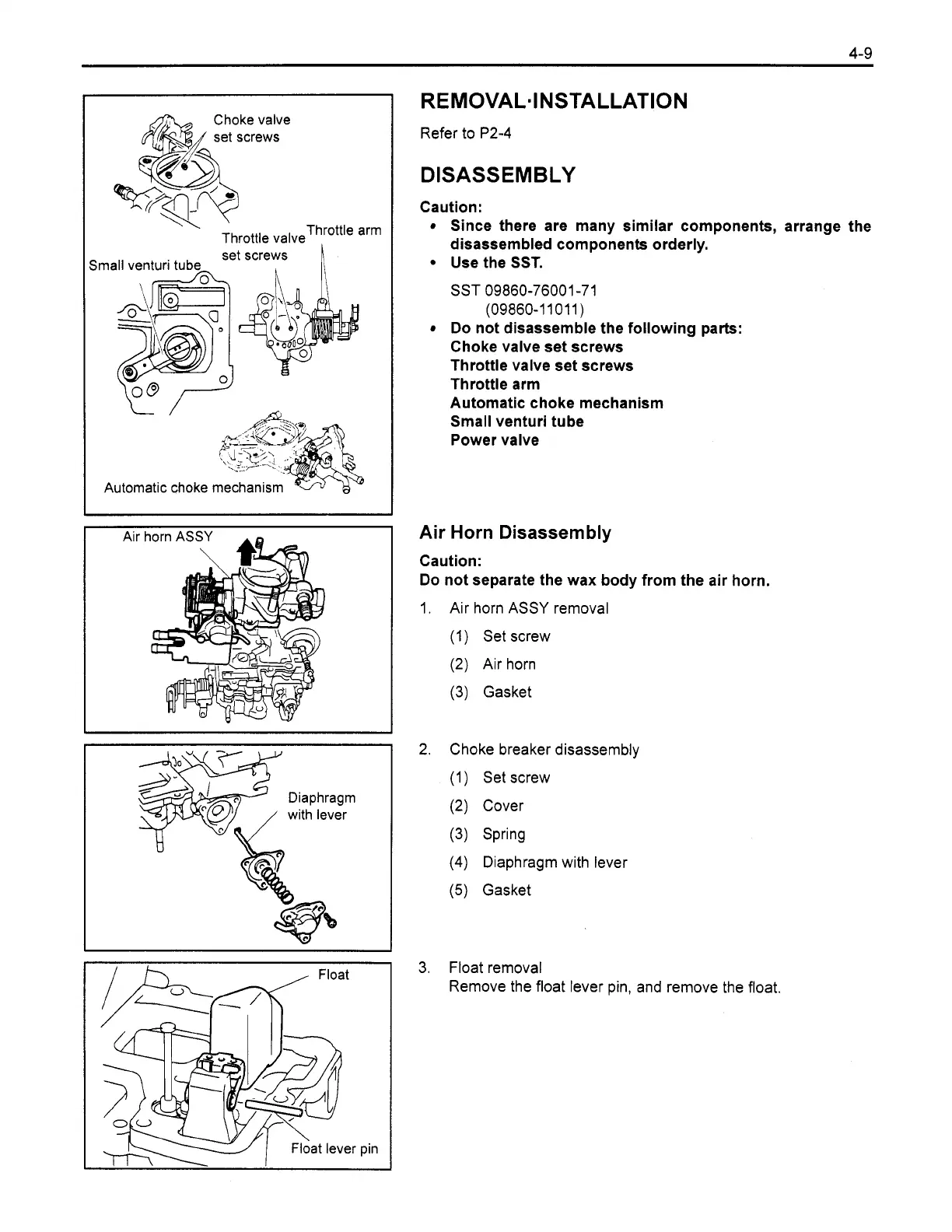

Choke valve
set screws
Throttle arm
Throttle valve
Automatic choke mechanism
Air
t
1
I--,
,
Float
Refer to P2-4
DISASSEMBLY
Caution:
Since there are many similar components, arrange the
disassembled components orderly.
Use the SST.
SST 09860-76001 -71
(09860-11011)
Do not disassemble the following parts:
Choke valve set screws
Throttle valve set screws
Throttle arm
Automatic choke mechanism
Small venturi tube
Power valve
Air
Horn Disassembly
Caution:
Do not separate the wax body from the air horn.
Air horn ASSY removal
(1) Set screw
(2) Air horn
(3) Gasket
Choke breaker disassembly
(1) Set screw
(2)
Cover
(3) Spring
(4)
Diaphragm with lever
(5)
Gasket
Float removal
Remove the float lever pin, and remove the float.
4Y-E Repair
Section 1.1.4
