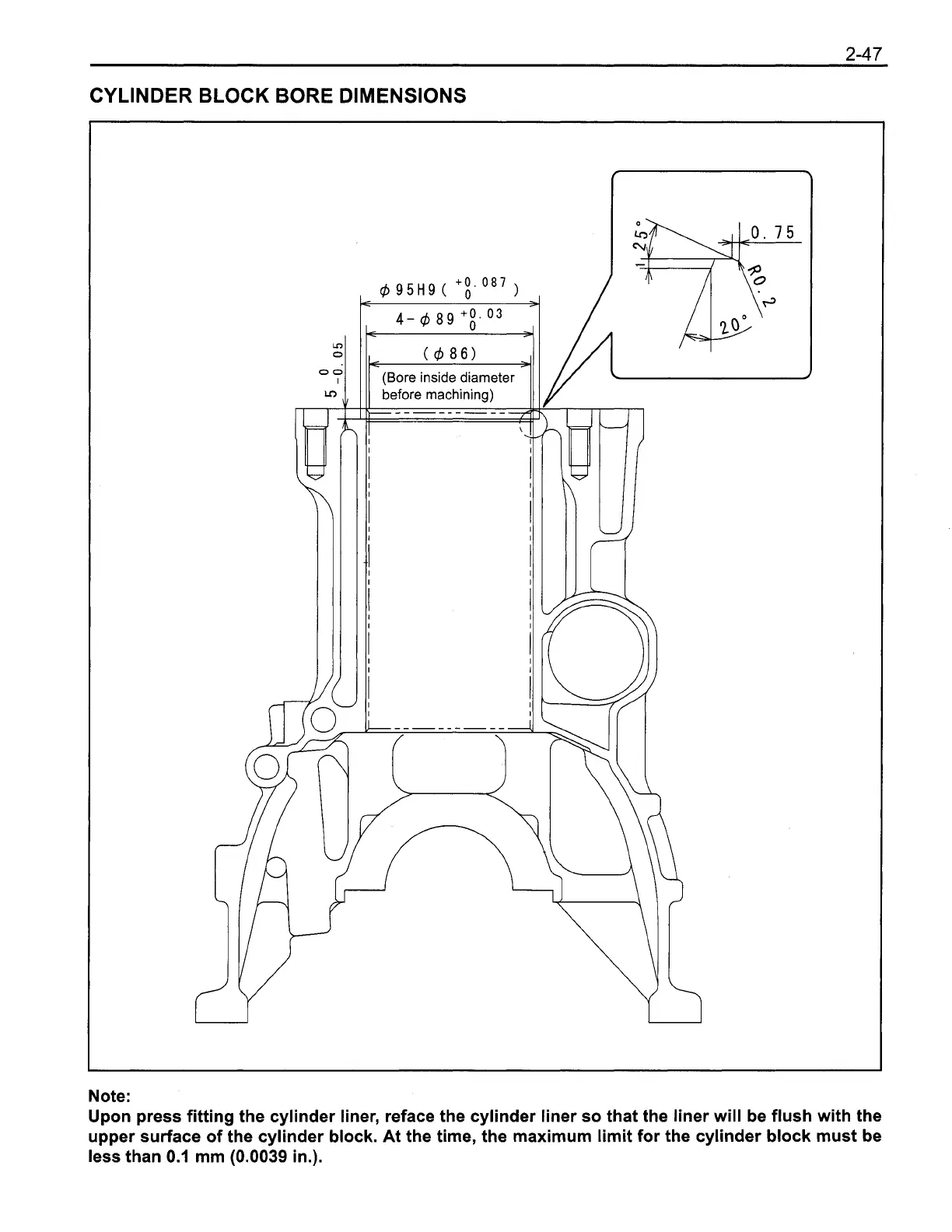

CYLINDER BLOCK BORE DIMENSIONS
(@ 86)
(Bore inside diameter
Note:
Upon press fitting the cylinder liner, reface the cylinder liner so that the liner will be flush with the
upper surface of the cylinder block. At the time, the maximum limit for the cylinder block must be
less than
0.1 mm (0.0039 in.).
1DZ-II Repair
Section 1.2.2

Toyota 8FDU32 Specifications

General

Model	8FDU32
Fuel Type	Diesel
Transmission	Automatic
Tire Type	Pneumatic
Rated Capacity	3200 kg
Load Capacity	3200 kg
Load Center	500 mm
Lift Height	3000 mm
Mast Type	Triple
Overall Length	2470 mm
Overall Width	1150 mm
Overall Height	2070 mm
