1-17

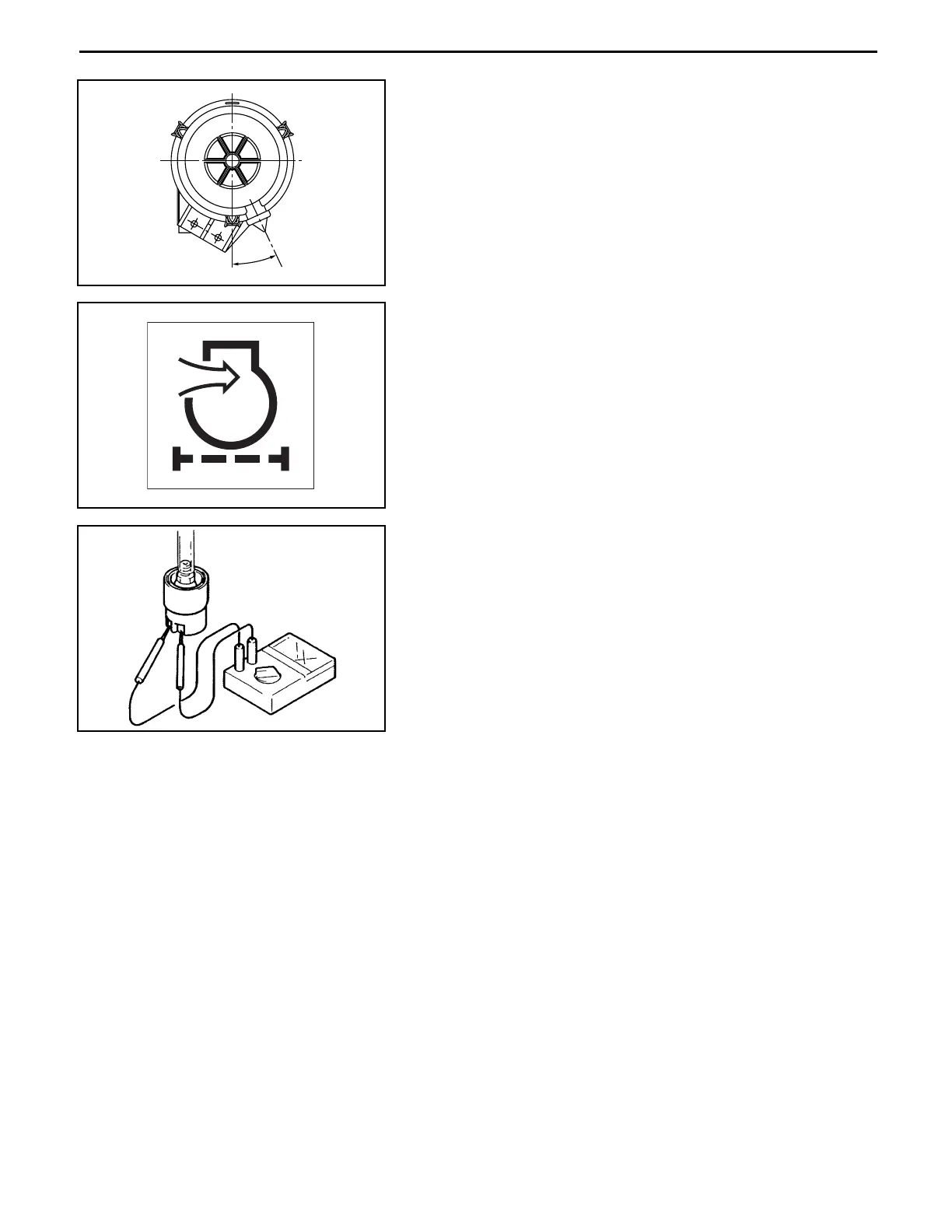

7. Install the element.
Install the evacuator valve in the illustrated direction.
CLOGGING WARNING SYSTEM
INSPECTION (OPT)
1. Warning lamp inspection
(1) Check that the air cleaner warning lamp comes on when
the ignition key switch is turned ON and goes out when
the engine starts.
2. Individual inspection
(1) Use a mity vac to apply a negative pressure to the
vacuum switch, and inspect for continuity.
Standard
4Y engine vehicle
2630~3218 Pa (270~330 mmAq) (19.9~24.3 mmHg):
continuity exists
1DZ-II engine vehicles
6904~8042 Pa (704~820 mmAq) (51.7~60.3 mmHg):
continuity exists
25°
Engine
Section 1

Toyota 8FDU32 Specifications

General

Model	8FDU32
Fuel Type	Diesel
Transmission	Automatic
Tire Type	Pneumatic
Rated Capacity	3200 kg
Load Capacity	3200 kg
Load Center	500 mm
Lift Height	3000 mm
Mast Type	Triple
Overall Length	2470 mm
Overall Width	1150 mm
Overall Height	2070 mm
