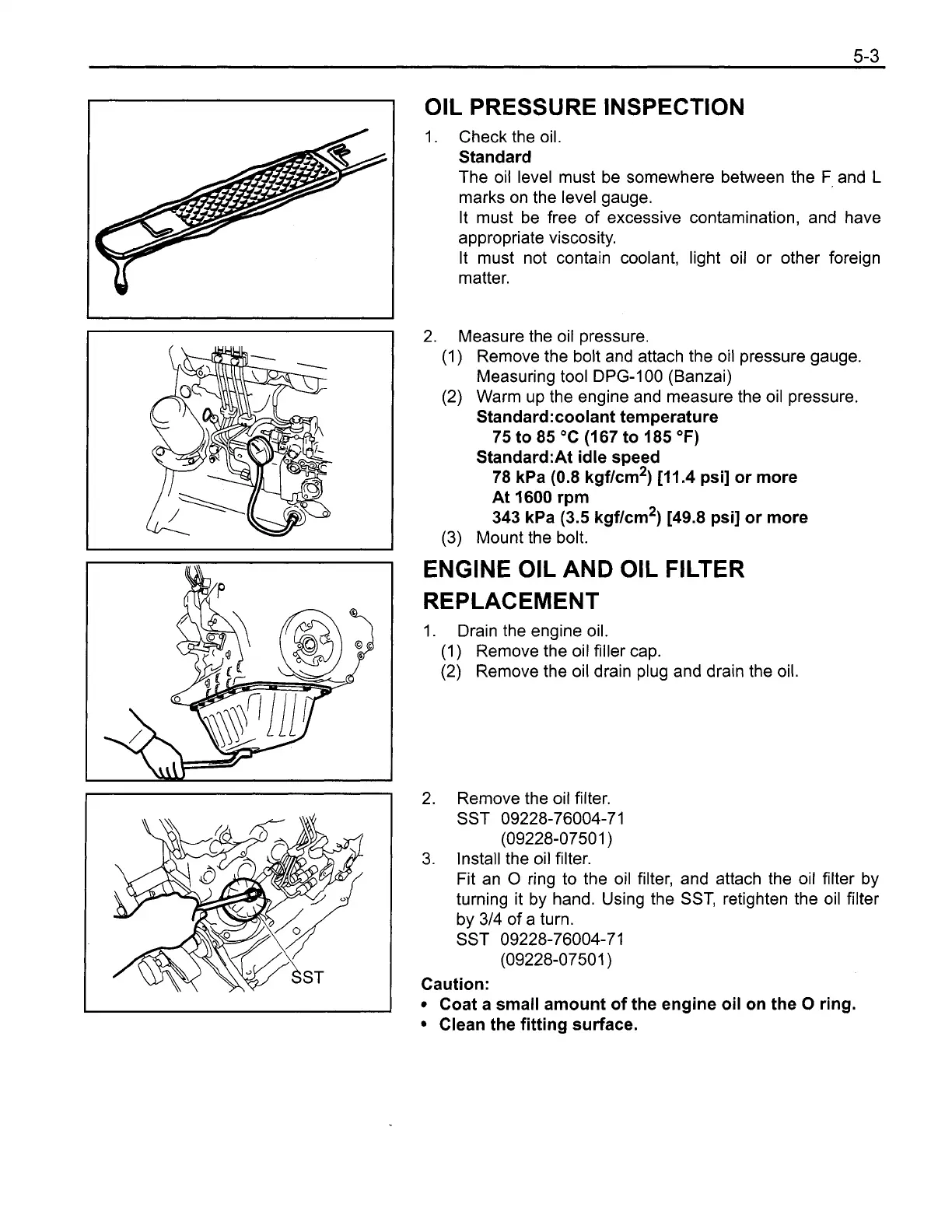

OIL PRESSURE INSPECTION
1. Check the oil.
Standard
The oil level must be somewhere between the
F
and
L
marks on the level gauge.
It must be free of excessive contamination, and have
appropriate viscosity.
It must not contain coolant, light oil or other foreign
matter.
2. Measure the oil pressure.
(1) Remove the bolt and attach the oil pressure gauge.
Measuring tool DPG-100 (Banzai)
(2) Warm up the engine and measure the oil pressure.
Standard:coolant temperature
75 to 85 OC (1 67 to 185 OF)
Standard:At idle speed
78 kPa (0.8 kgflcm2) [11.4 psi] or more
At 1600 rpm
343 kPa (3.5 kgflcm2) [49.8 psi] or more
(3) Mount the bolt.
ENGINE OIL AND OIL FILTER
REPLACEMENT
1. Drain the engine oil.
(1) Remove the oil filler cap.
(2) Remove the oil drain plug and drain the oil.
2. Remove the oil filter.
SST 09228-76004-71
(09228-0750 1
)
3. Install the oil filter.
Fit an
0
ring to the oil filter, and attach the oil filter
by
turning it by hand. Using the SST, retighten the oil filter
by 314 of a turn.
SST 09228-76004-71
(O9228-O75OI
)
Caution:
Coat a small amount of the engine oil on the
0
ring.
Clean the fitting surface.
