Archer C50 AC1200 Wireless Dual Band Router
- 97 -

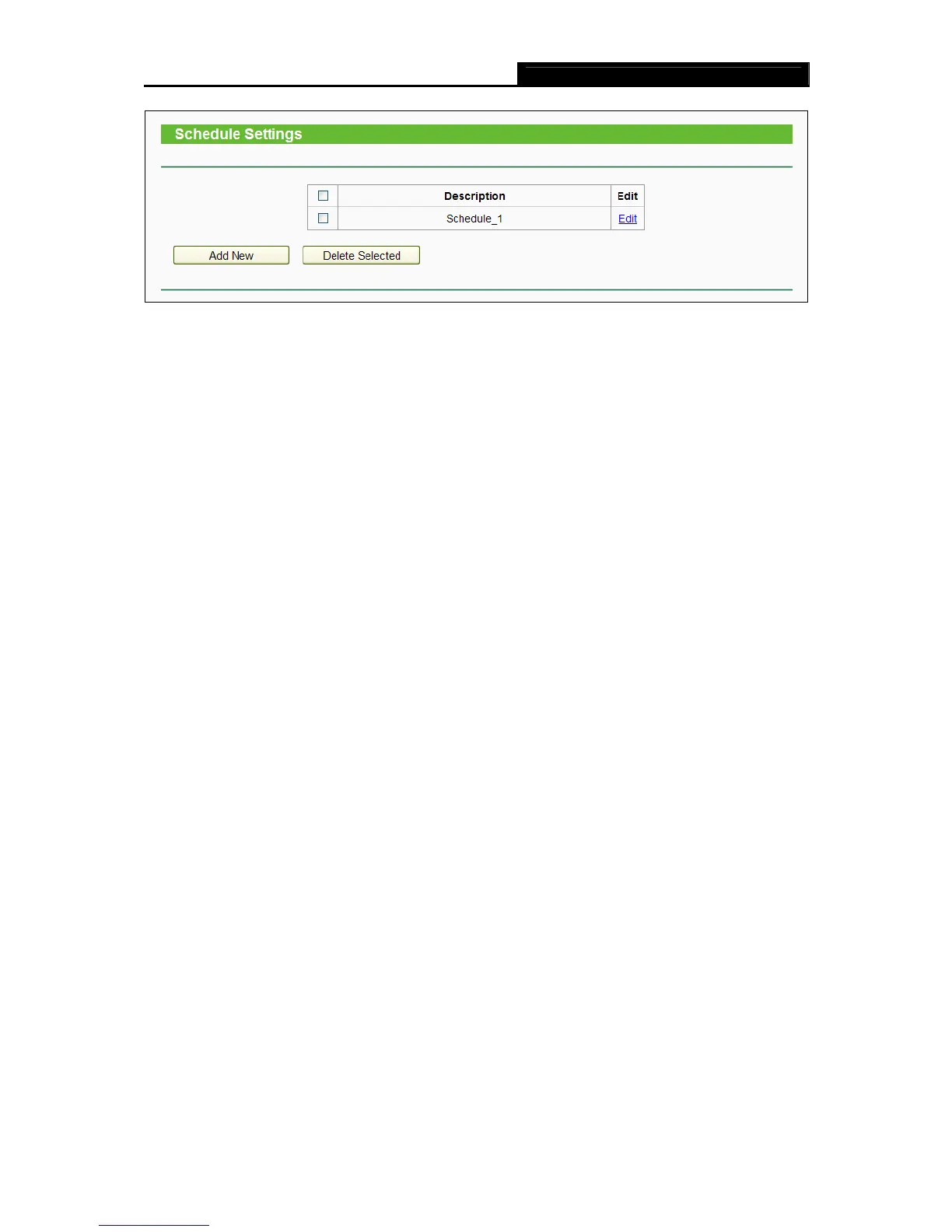

Figure 4-85 Schedule Settings
Description - Here displays the description of the schedule and this description is unique.
Edit - Here you can edit or delete an existing schedule.
To add a new schedule, follow the steps below:
1. Click Add New button shown in Figure 4-85 and the next screen will pop-up as shown in
Figure 4-86.
2. In Description field,
create a unique description for the schedule (e.g. Schedule_1).
3. Select the Day or days from the drop-down list. And then select the Start Time and Stop
Time from the drop-down list. Click Add to save the entry.
4. Click Save to complete the settings.
Click the Delete Selected button to delete selected entries in the table.
