Archer C50 AC1200 Wireless Dual Band Router
- 14 -

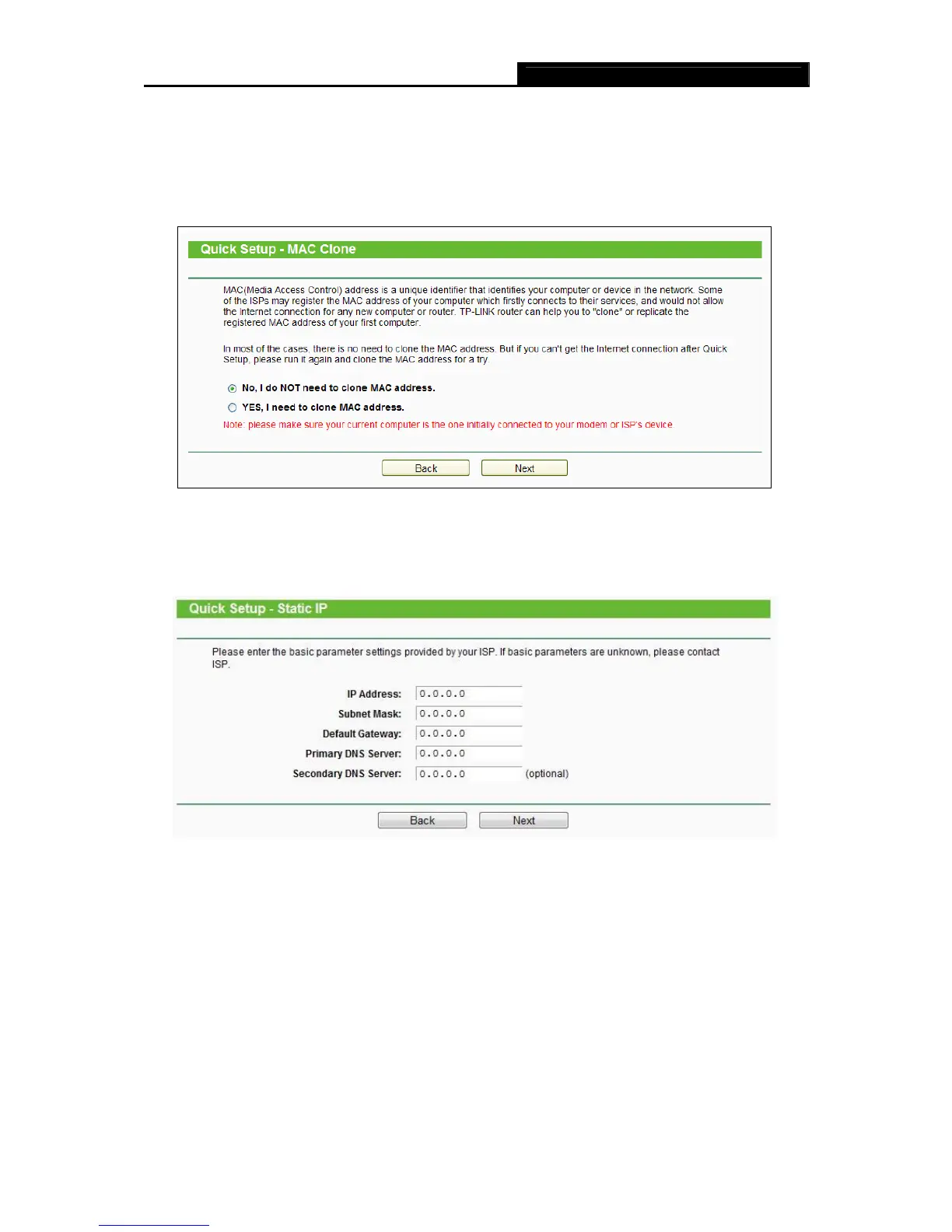

1) If the connection type detected is Dynamic IP, there will appear the MAC Clone page (as
shown in Figure 3-7). In most cases, there is no need to clone the MAC address. You can
select “No, I do NOT need to clone MAC address” and then click Next. If it is necessary
in your case, please select “Yes, I need to clone MAC address” and then click Next.
Figure 3-7 Quick Setup – MAC Clone
2) If the connection type detected is Static IP, the next screen will appear as shown in
Figure 3-8. Configure the following parameters and then click Next to continue.
Figure 3-8 Quick Setup - Static IP
IP Address - This is the WAN IP address as seen by external users on the Internet
(including your ISP). Your ISP will provide you with the IP address you need to enter
here. Enter the IP address into the field.
Subnet Mask - The Subnet Mask is used for the WAN IP address. Your IPS will provide
you with the subnet mask which is usually 255.255.255.0.
Default Gateway - Your ISP will provide you with the Gateway address which is the ISP
server’s address. Enter the gateway IP address into the box if required.
Primary DNS Server - Enter the DNS Server IP address into the box if required.
