1. 2. 2. Ports and Antennas

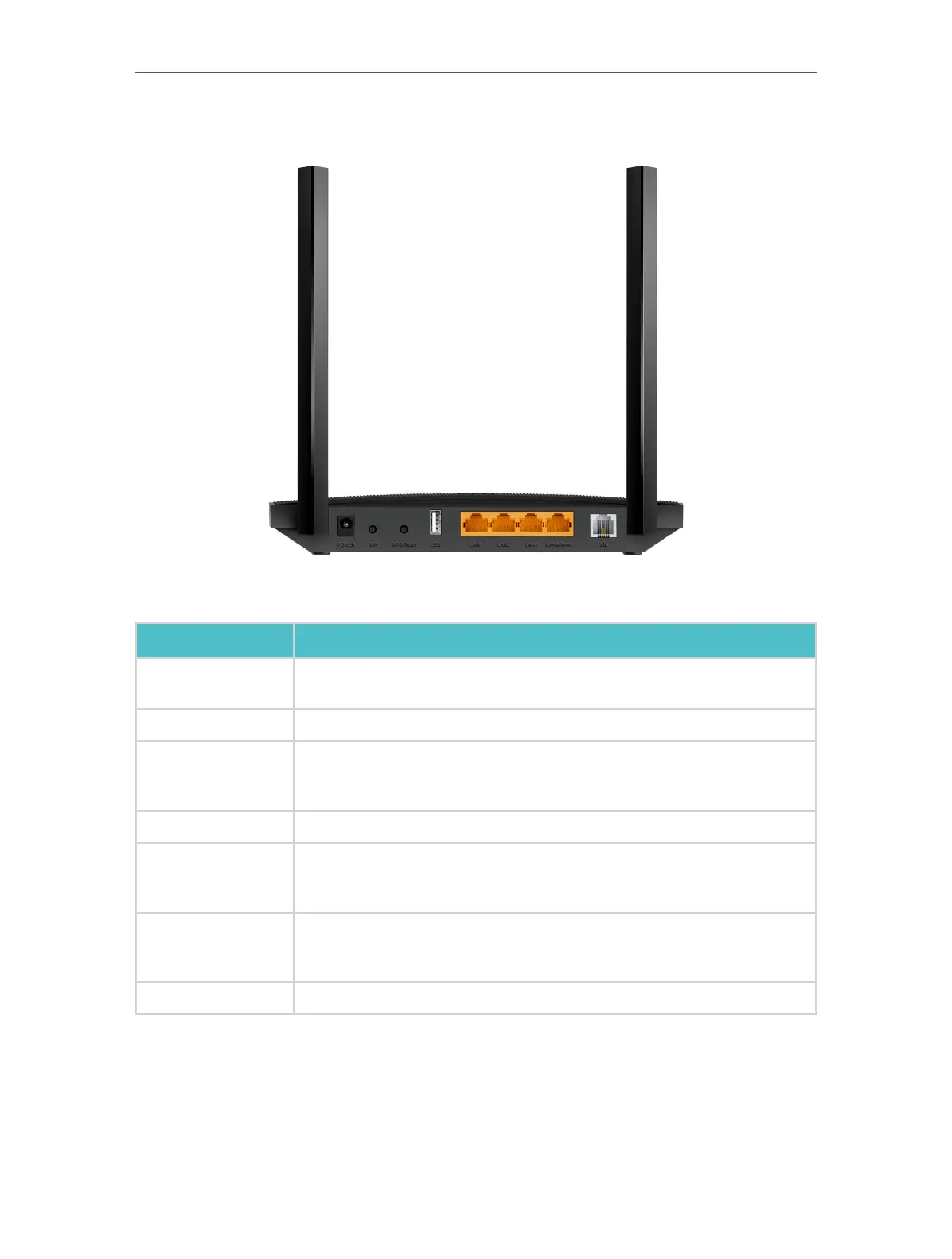

The modem router’s back panel shows the connection ports, buttons and antennas.
Refer to the following for detailed instructions.
Item
Description
Power Port
For connecting the modem router to power socket via the provided
power adapter.
WiFi Button Press to turn Wi-Fi on or off.
WPS/Reset Button
Press for 1 second to start a WPS synchronization.
Press and hold for at least 5 seconds until all LEDs turn on momentarily
to reset the modem router to factory default settings
.
USB Port For connecting to USB modems.
LAN1, LAN2, LAN3,
and LAN4/WAN
Ports
For connecting to your PCs or other Ethernet network devices.
In wireless router mode, the LAN4/WAN port is used for connecting to
a Cable/FTTH/VDSL/ADSL device.
DSL Port
For connecting the modem router to the Internet. Connect the port to
the splitter or directly connect the port to the phone jack via a phone
cable. For details, please refer to Connect Your Modem Router.
Antennas Used for wireless operation and data transmission.
