Chapter 2

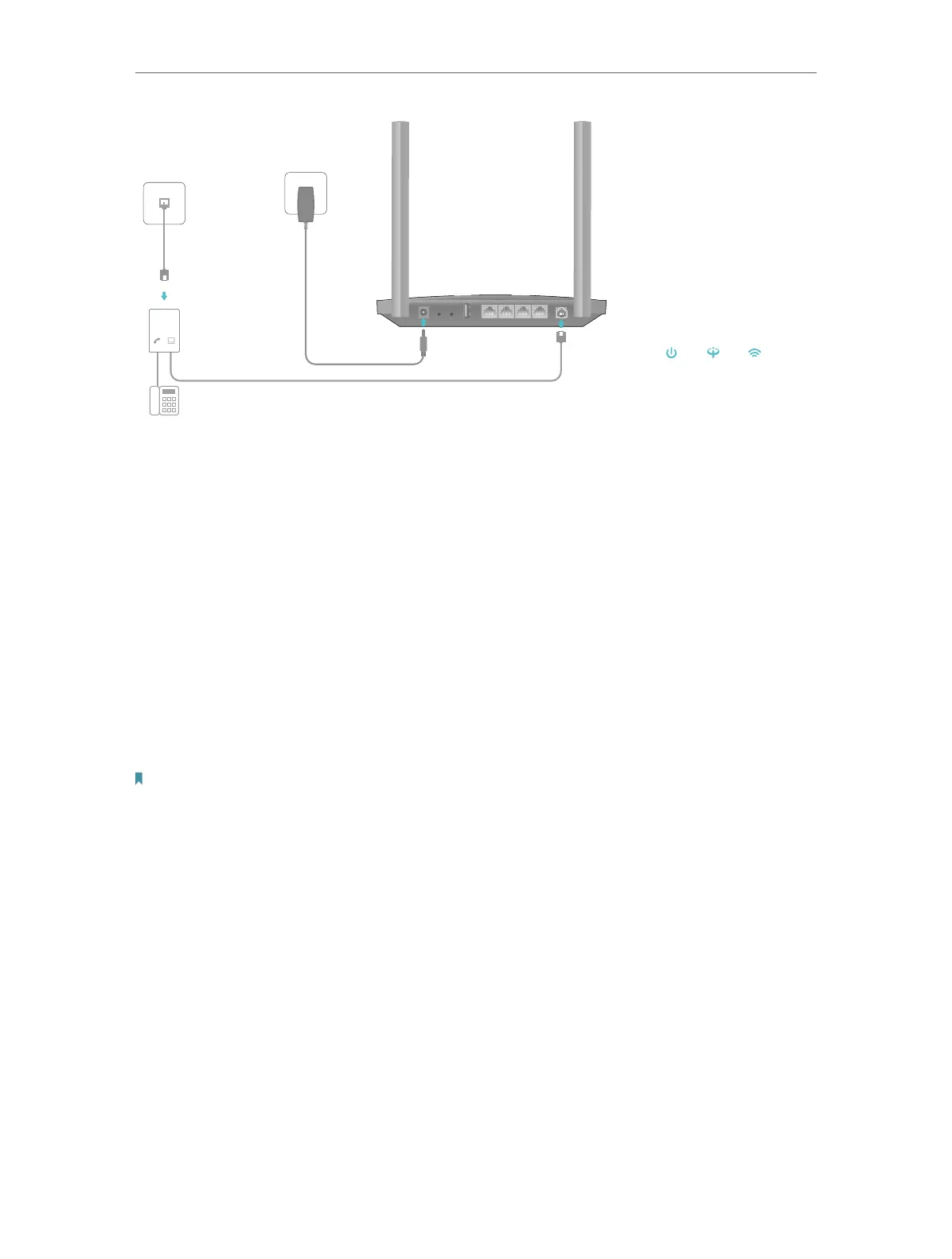

Phone Cable
Phone Jack
Phone Cable
DSL Splitter
Phone (Optional)
Modem Router
Power Adapter
1
Note: The DSL LED takes about 1 to 2
minutes to stabilize.
Power On DSL On
If you don’t need the phone service, just directly connect the modem router to the phone jack
with the provided phone cable, then follow steps 3 and 4 to complete the hardware connection.
3
Verify that the following LEDs turn
stable before continuing with the
conguration.
4
PHONE
LINE
MODEM
Wi-Fi On
WPS�Reset
USB LAN1 LAN2 LAN3
LAN4�WAN
2
2. Connect your computer to the modem router.
Method 1: Wired
Connect your computer’s Ethernet port to the LAN port on the modem router via the
Ethernet cable.
Method 2: Wirelessly
Use the default SSID (Wireless Network Name) and Wireless Password printed on the
product label of the modem router to connect wirelessly.
Method 3: Use the WPS button
Wireless devices that support WPS, including Android phones, tablets, most USB
network cards, can be connected to your router through this method. (WPS is not
supported by iOS devices.)
Note:
The WPS function cannot be configured if the wireless function of the router is disabled. Also, the WPS function will be
disabled if your wireless encryption is WEP. Please make sure the wireless function is enabled and is configured with the
appropriate encryption before configuring the WPS.
1 ) Tap the WPS icon on the device’s screen.
2 ) Immediately press the WPS button on your modem router.
3 ) The WPS LED flashes for about two minutes during the WPS process.
4 ) When the WPS LED stabilizes and remains on, the client device has successfully
connected to the modem router.
