Chapter 2 Introduction
2.1 Overview of the EAP
EAP series products provide wireless coverage solutions for small-medium business. They can
either work independently as standalone APs or implement centralized management, providing
a flexible, richly-functional but easily-configured enterprise-grade wireless network for small and
medium business.
“Celling lamp” appearance and easily mounting design with chassis make EAP easy to be
installed on a wall or ceiling and blend in with most interior decorations. EAP115 can be powered
via a PSE* device or the provided power adapter.
With two built-in omnidirectional antennas, EAP115 works within the 2.4GHz frequency band. It
applies 802.11n standards and 2*2MIMO technology, allowing packet transmission at up to
300Mbps.
*PSE: Power Sourcing Equipment, a device (switch or hub for instance) that will provide power
in a PoE setup.
2.2 Appearance Description
2.2.1 Top View

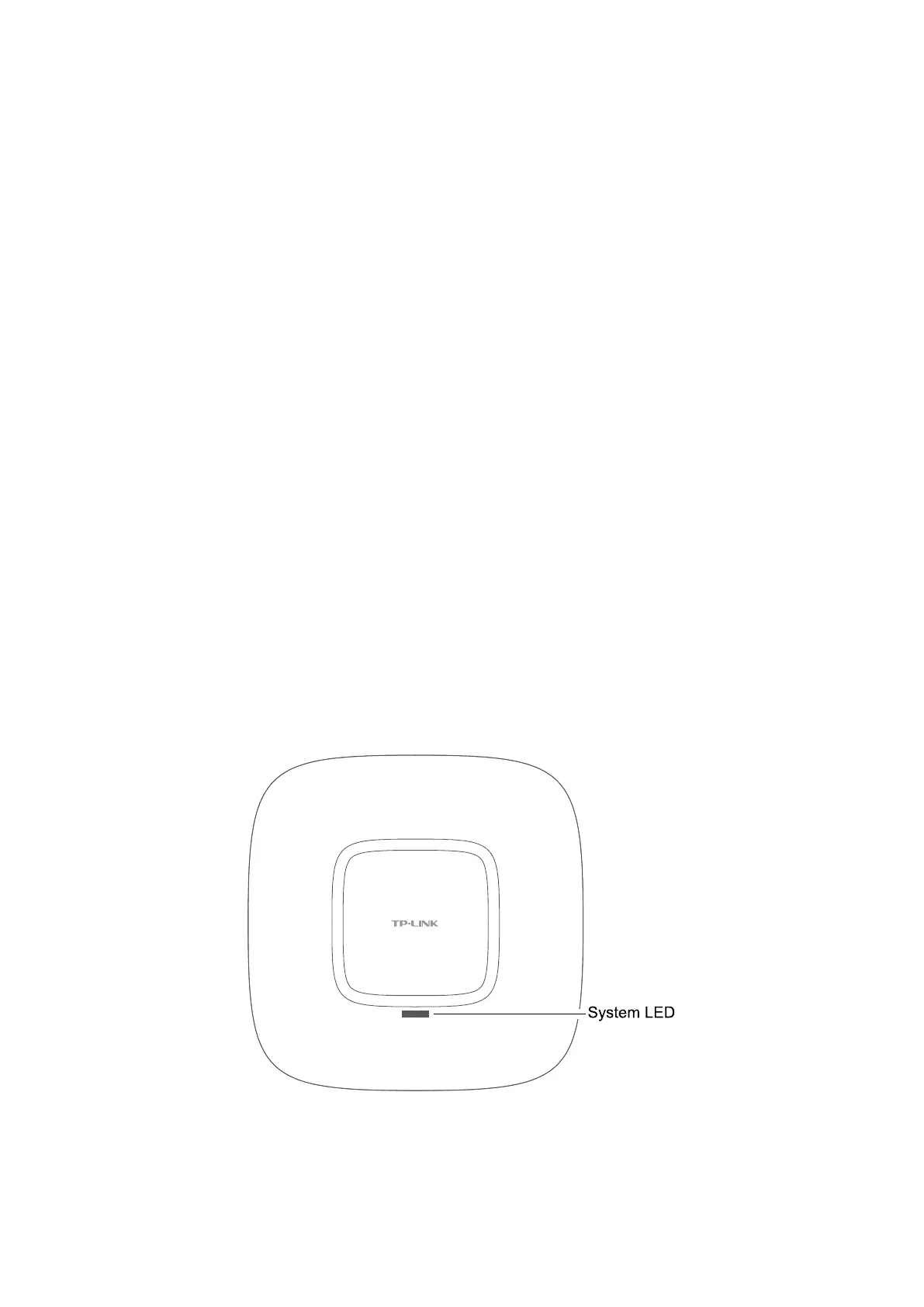

The top view of EAP115 is shown as the following figure.
Figure 2-1 Top View of the EAP
