90

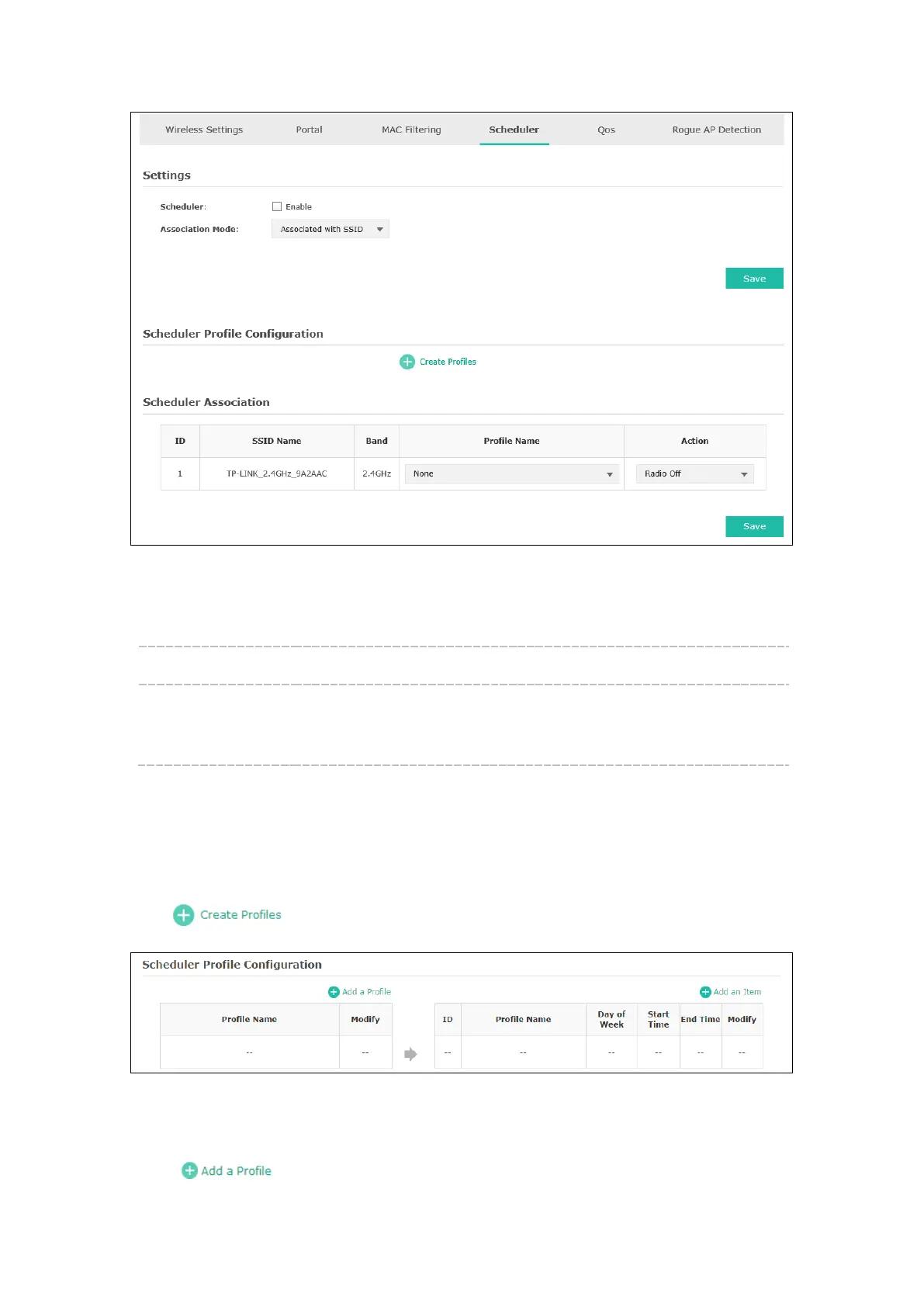

Figure 7-24 Scheduler Page
Settings
Scheduler:
Check the box to enable Scheduler.
Association Mode: Select Associated with SSID/AP, you can perform configurations on the
SSIDs/AP. The display of Scheduler Association is based on your option
here.
Scheduler Profile Configuration
Follow the steps below to add rules.
Step 1:
Click , two tables will be shown.
Figure 7-25 Scheduler Profile Configuration
Step 2:
Click and input a profile name for the rule.
