Chapter 2 Hardware Installation
2.1 The Front Panel

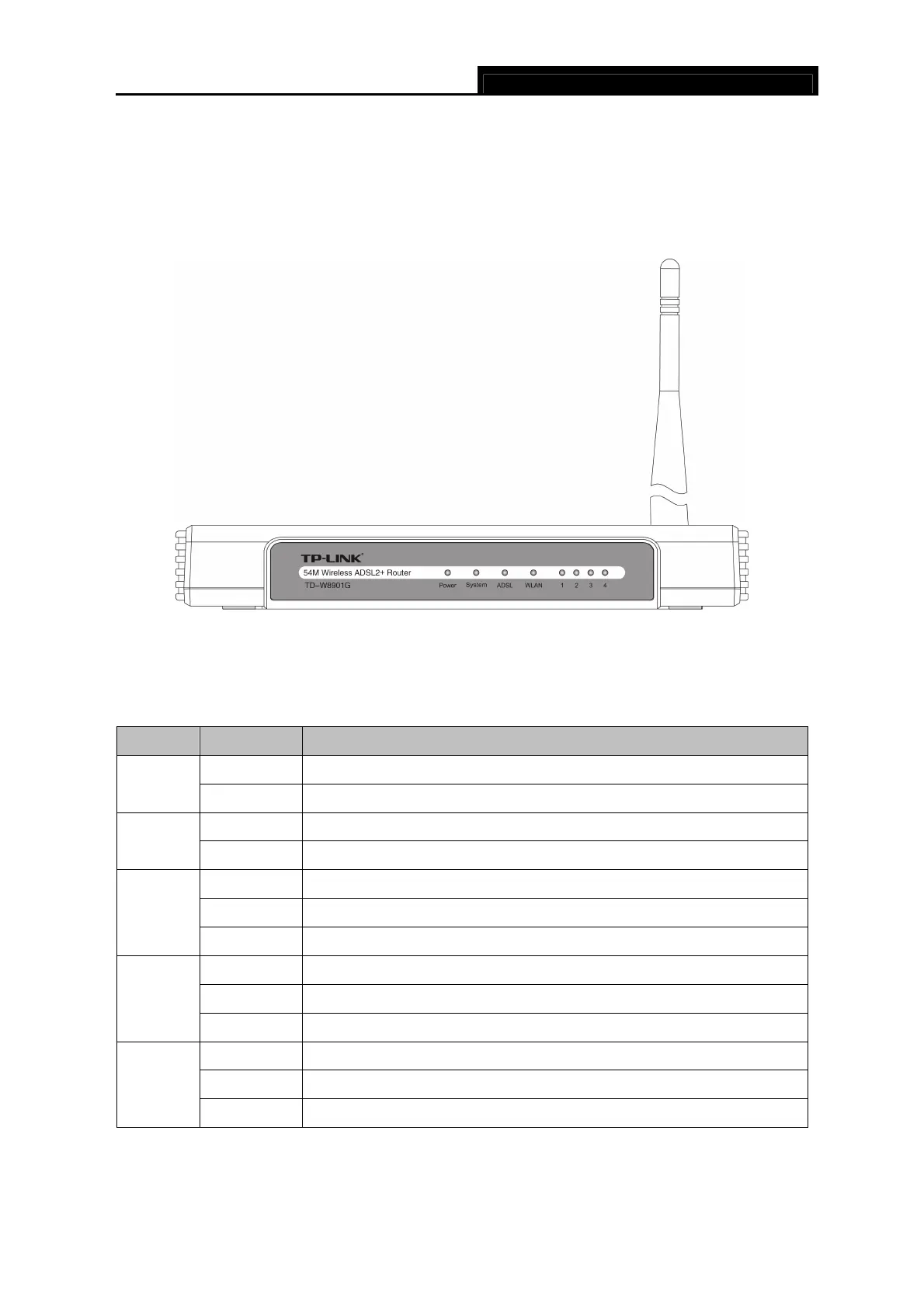

Figure 2-1
The LEDs locates on the front panel, they indicate the device’s working status. For details, please
refer to LED Explanation.
LED Explanation:
Name Status Indication
Off No Power
Power
On Power on
Off No data transmitting or receiving on WAN port
System
Quick Flash There is data transmitting or receiving on WAN port
Slow flash Connection to telecom network is abnormal
Quick flash Connecting to the telecom network
ADSL
On Connection to telecom network is OK
Off The Wireless function is disabled
Slow flash The Wireless function is enabled
WLAN
Quick flash Sending or receiving data over wireless network
Off There is no device linked to the corresponding port
On Connected to a device through the corresponding port
LAN(1-4)
Flashing Sending or receiving data over corresponding port

TP-Link TD-W8901G Specifications

General

Wireless Speed	Up to 54Mbps
Frequency Band	2.4GHz
ADSL Speed	Downstream: up to 24Mbps, Upstream: up to 3.5Mbps
Wireless Standards	IEEE 802.11g, IEEE 802.11b
ADSL Standards	ITU-T G.992.1 (G.dmt), ITU-T G.992.2 (G.lite), ITU-T G.994.1 (G.hs)
Ports	4 x 10/100Mbps LAN, 1 x RJ-11 ADSL
Antenna	1 x Fixed
Security	64/128-bit WEP, WPA
Protocols	TCP/IP, PPPoE, PPPoA, DHCP
Weight	0.6 lbs (273g)
