TD-W8901G 54M Wireless ADSL2+ Router User Guide
36

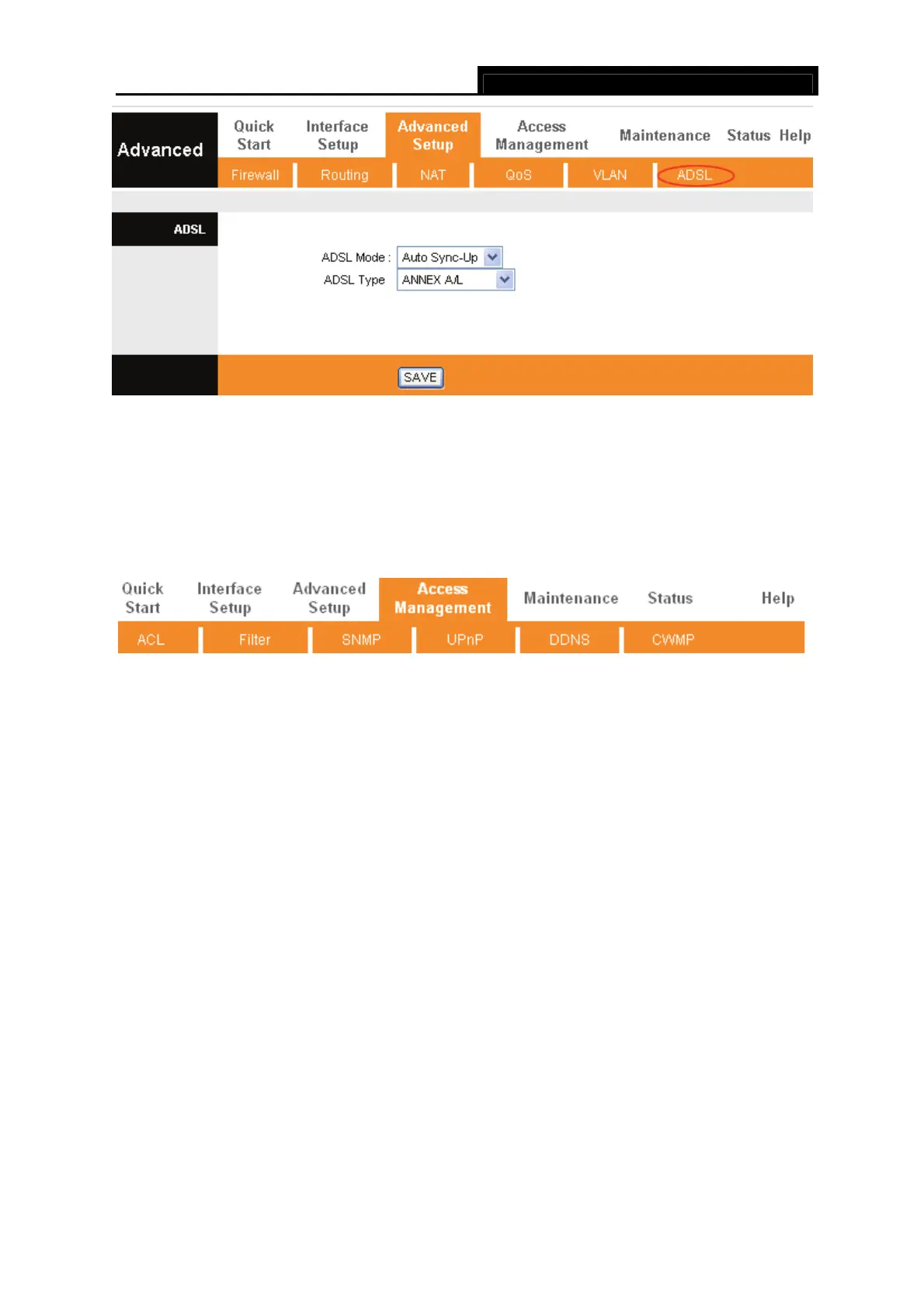

Figure 4-29
¾ ADSL Mode: Select the ADSL operation mode which your ADSL connection uses.
¾ ADSL Type: Select the ADSL operation type which your ADSL connection uses.
4.5 Access Management
Choose “Access Management”, you can see the next submenus:
Figure 4-30
Click any of them, and you will be able to configure the corresponding function.
4.5.1 ACL
Choose “Access Management→ACL”, you can see the next screen (shown in Figure 4-31). You
can specify the client to access the ADSL Router once setting his IP as a Secure IP Address
through selected applications.

TP-Link TD-W8901G Specifications

General

Wireless Speed	Up to 54Mbps
Frequency Band	2.4GHz
ADSL Speed	Downstream: up to 24Mbps, Upstream: up to 3.5Mbps
Wireless Standards	IEEE 802.11g, IEEE 802.11b
ADSL Standards	ITU-T G.992.1 (G.dmt), ITU-T G.992.2 (G.lite), ITU-T G.994.1 (G.hs)
Ports	4 x 10/100Mbps LAN, 1 x RJ-11 ADSL
Antenna	1 x Fixed
Security	64/128-bit WEP, WPA
Protocols	TCP/IP, PPPoE, PPPoA, DHCP
Weight	0.6 lbs (273g)
