TD-W8901G 54M Wireless ADSL2+ Router User Guide
7
Chapter 3 Quick Installation Guide
3.1 Configure PC
After you directly connect your PC to the TD-W8901G or connect your adapter to a Hub/Switch
which has connected to the Router, you need to configure your PC’s IP address. Follow the steps
below to configure it.

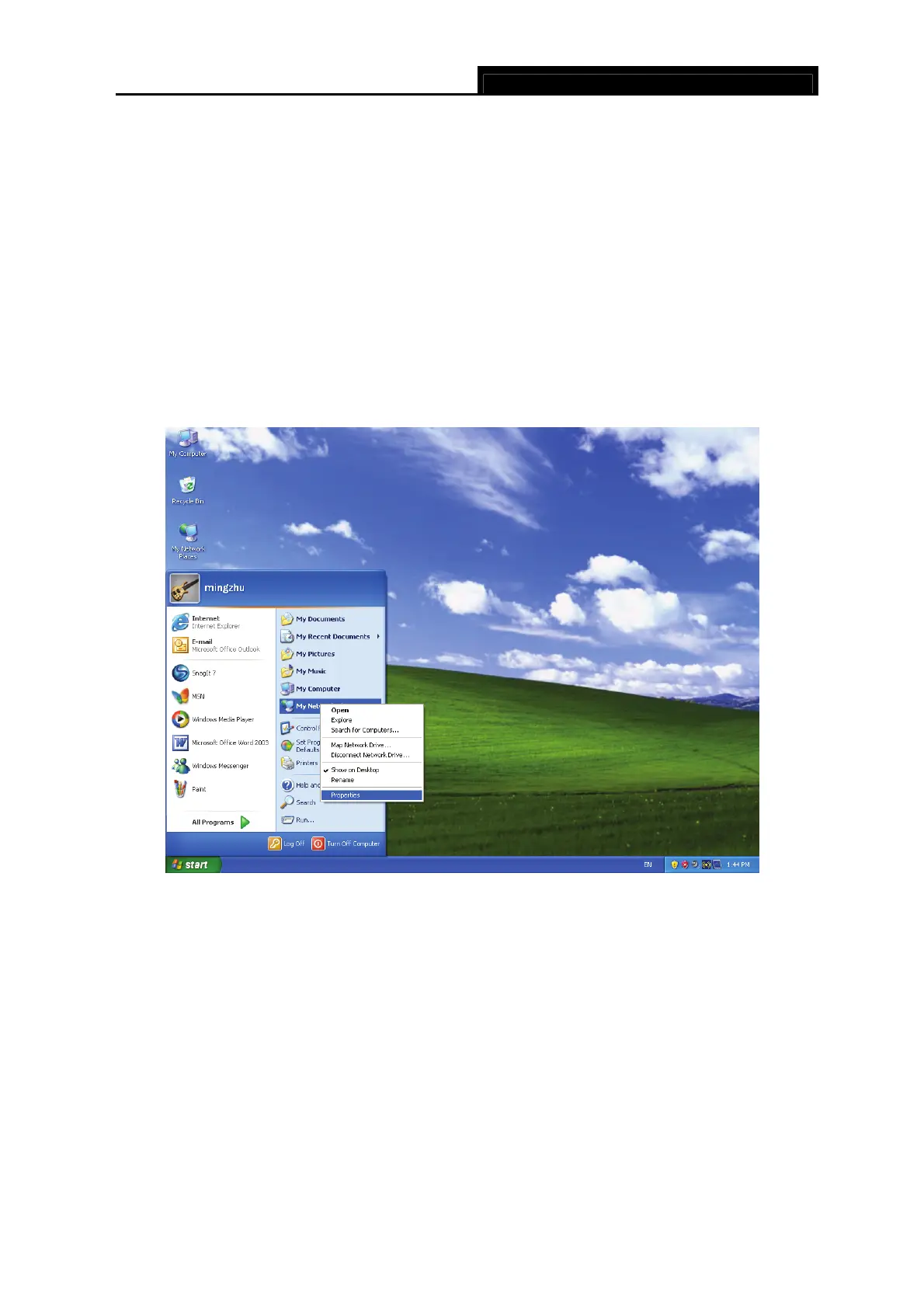

Step 1: Click the Start menu on your desktop, right click My Network Places, and then select
Properties (shown in Figure 3-1).
Figure 3-1
Step 2: Right click Local Area Connection (LAN), and then select Properties.

TP-Link TD-W8901G Specifications

General

Wireless Speed	Up to 54Mbps
Frequency Band	2.4GHz
ADSL Speed	Downstream: up to 24Mbps, Upstream: up to 3.5Mbps
Wireless Standards	IEEE 802.11g, IEEE 802.11b
ADSL Standards	ITU-T G.992.1 (G.dmt), ITU-T G.992.2 (G.lite), ITU-T G.994.1 (G.hs)
Ports	4 x 10/100Mbps LAN, 1 x RJ-11 ADSL
Antenna	1 x Fixed
Security	64/128-bit WEP, WPA
Protocols	TCP/IP, PPPoE, PPPoA, DHCP
Weight	0.6 lbs (273g)
