2.2 The Back Panel

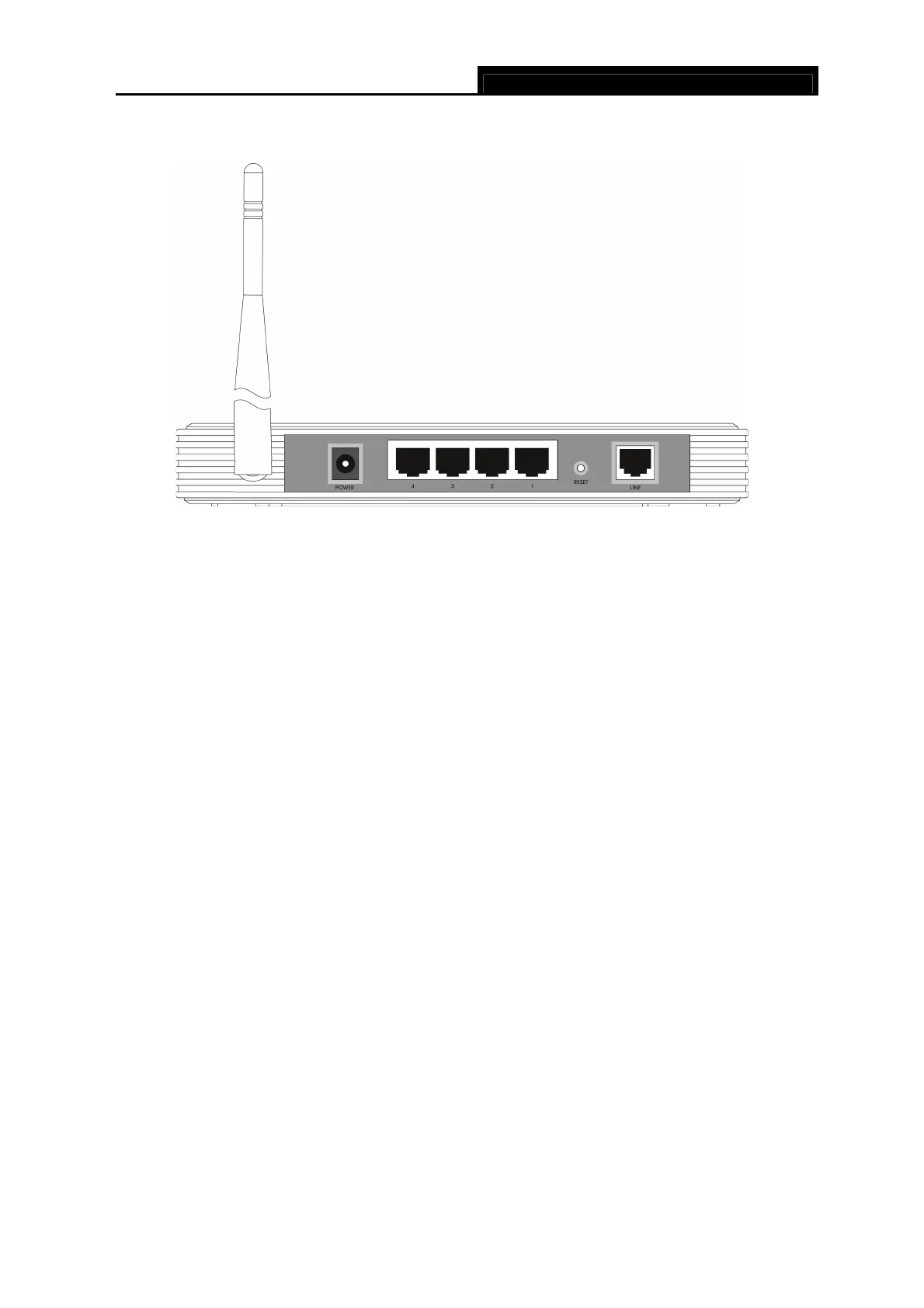

Figure 2-2
¾ POWER: The Power plug is where you will connect the power adapter.
¾ RESET: There are two ways to reset the Router's factory defaults.
Method one: Press the reset button of the Router; keep the reset button pressed down for
more than five seconds.
Method two: Restore the default setting from “Maintenance-SysRestart” of the Router's
Web-based Utility.
¾ 1, 2, 3, 4 (LAN): Through the port, you can connect the Router to your PC or the other
Ethernet network devices.
¾ LINE: Through the port, you can connect the router with the telephone. Or you can connect
them by an external separate splitter. For details, please refer to 2.4.
¾ Antenna: Used for wireless operation and data transmit.
)
Note:
There is an additional printed antenna with 0 dBi gain. Without external antenna, you can also
connect the Router to your PC or the other Ethernet network devices by close quarters.
2.3 Installation Environment
¾ The Product should not be located where it will be exposed to moisture or excessive heat.
¾ Place the Router in a location where it can be connected to the various devices as well as to
a power source.
¾ Make sure the cables and power cord are placed safely out of the way so they do not create a
tripping hazard.
¾ The Router can be placed on a shelf or desktop.
¾ Keep away from the strong electromagnetic radiation and the device of electromagnetic
sensitive.
