TD-W8901G 54M Wireless ADSL2+ Router User Guide
18
3) PPPoA/PPPoE
Select this option if your ISP requires you to use a PPPoE connection. This option is typically
used for DSL services. Select Dynamic PPPoE to obtain an IP address automatically for your
PPPoE connection. Select Static PPPoE to use a static IP address for your PPPoE connection.
Please enter the information accordingly.

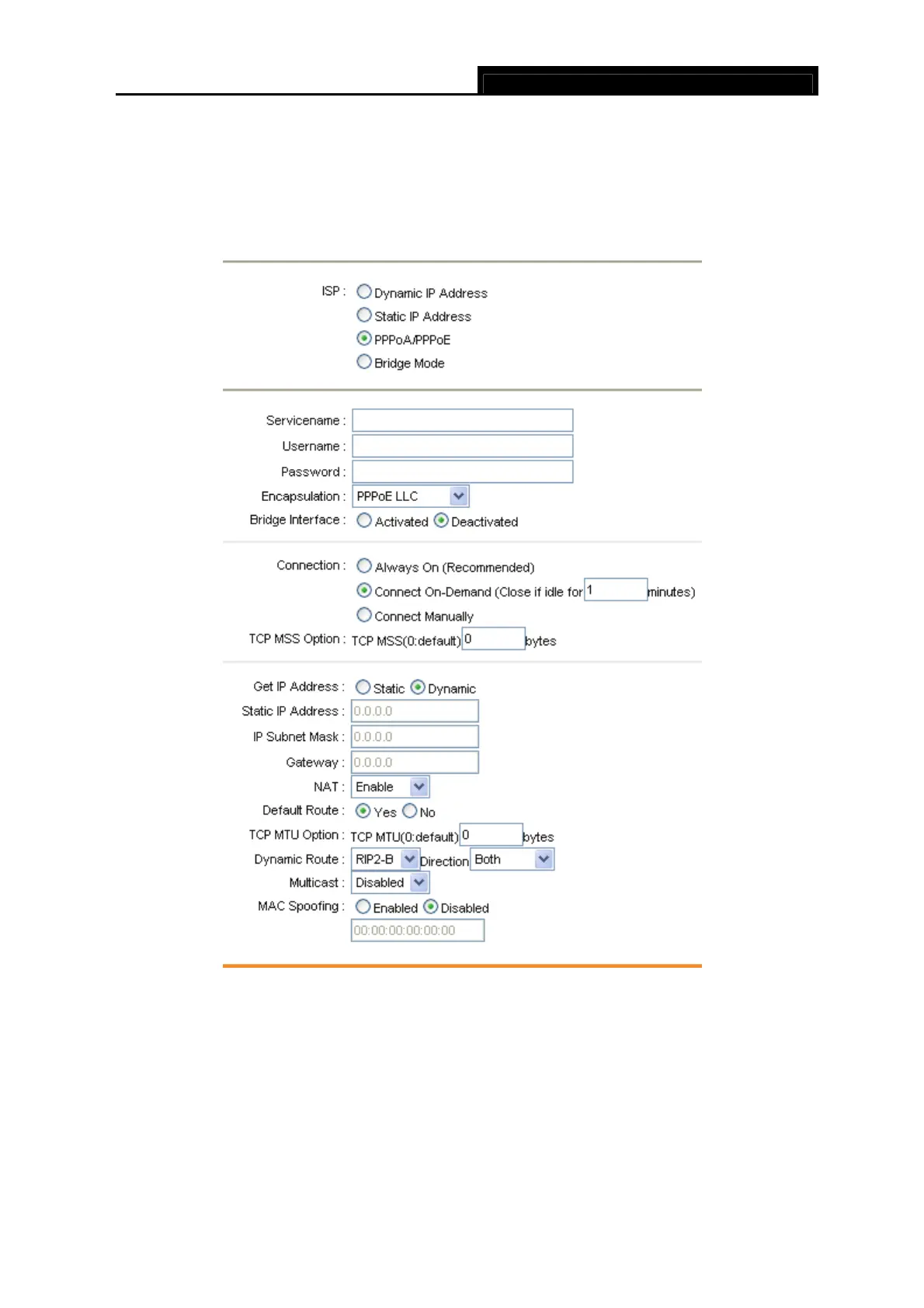

Figure 4-7
¾ Servicename: Enter a name to mark current connection, or you can leave it blank.
¾ Username: Enter your username for your PPPoE/PPPoA connection.
¾ Password: Enter your password for your PPPoE/PPPoA connection.
¾ Encapsulation: For both PPPoE/PPPoA connection, you need to specify the type of
Multiplexing, either LLC or VC Mux.
¾ Bridge Interface: Activate the option, and the Router can also work in Bridge mode.
¾ Connection: For PPPoE/PPPoA connection, you can select Always on or Connect

TP-Link TD-W8901G Specifications

General

Wireless Speed	Up to 54Mbps
Frequency Band	2.4GHz
ADSL Speed	Downstream: up to 24Mbps, Upstream: up to 3.5Mbps
Wireless Standards	IEEE 802.11g, IEEE 802.11b
ADSL Standards	ITU-T G.992.1 (G.dmt), ITU-T G.992.2 (G.lite), ITU-T G.994.1 (G.hs)
Ports	4 x 10/100Mbps LAN, 1 x RJ-11 ADSL
Antenna	1 x Fixed
Security	64/128-bit WEP, WPA
Protocols	TCP/IP, PPPoE, PPPoA, DHCP
Weight	0.6 lbs (273g)
