TP-Link TD-W8901G User Guide

TD-W8901G 54M Wireless ADSL2+ Router User Guide
23

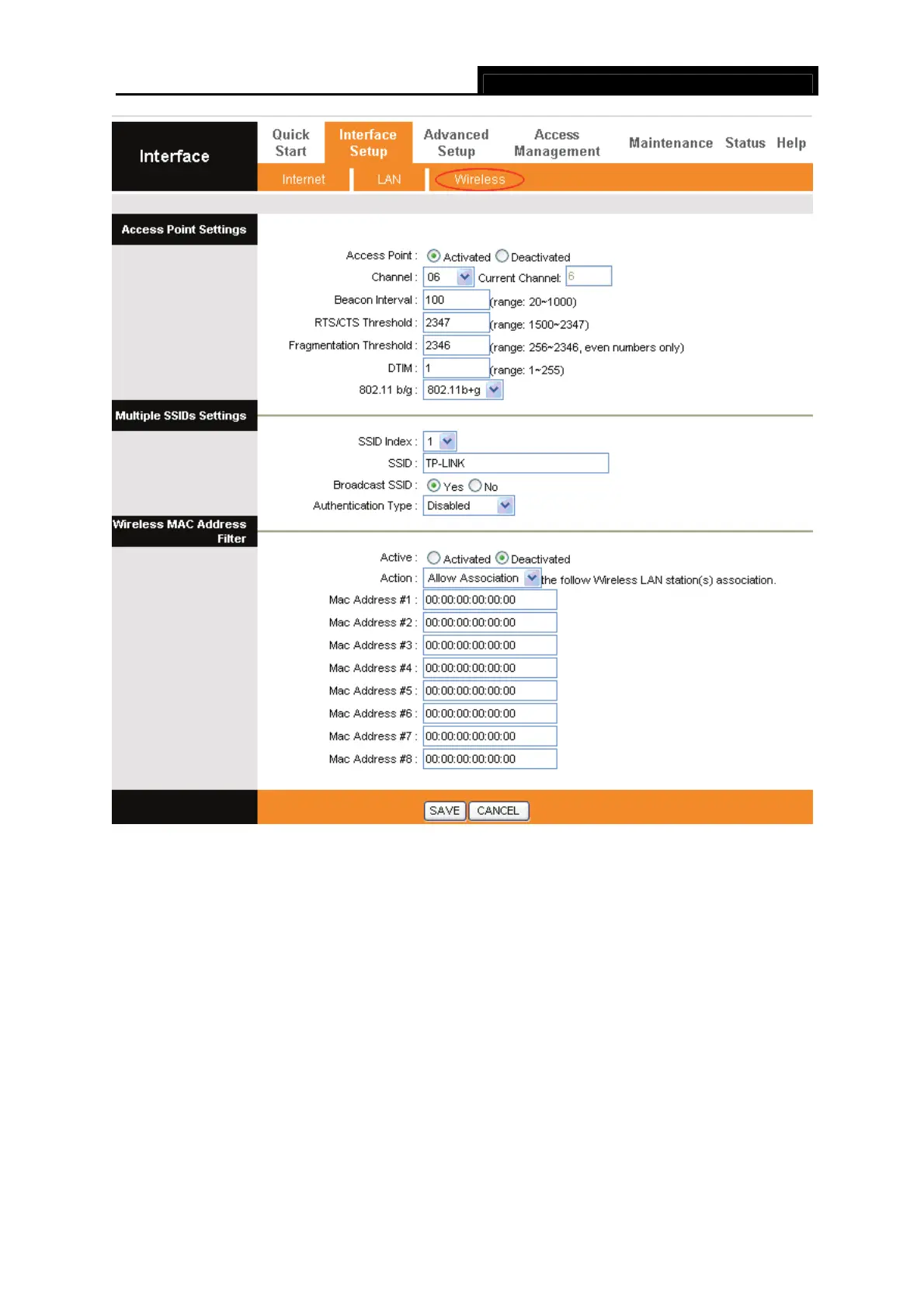

Figure 4-12
¾ Access point Settings: These are the settings of the access point. You can configure the
rules to allow wireless-equipped computers and other devices to communicate with a
wireless network.
• Access point: Select Activated to allow wireless station to associate with the access
point.
• Channel: Select the channel you want to use from the drop-down List of Channel. This
field determines which operating frequency will be used. It is not necessary to change
the wireless channel unless you notice interference problems with another nearby
access point.
• Beacon Interval: Enter a value between 20-1000 milliseconds. The Beacon Interval
value indicates the frequency interval of the beacon. A beacon is a packet broadcast by
the Router to synchronize the wireless network. The default value is 100.
• RTS/CTS Threshold: Should you encounter inconsistent data flow, only minor reduction

TP-Link TD-W8901G Specifications

General

Wireless Speed	Up to 54Mbps
Frequency Band	2.4GHz
ADSL Speed	Downstream: up to 24Mbps, Upstream: up to 3.5Mbps
Wireless Standards	IEEE 802.11g, IEEE 802.11b
ADSL Standards	ITU-T G.992.1 (G.dmt), ITU-T G.992.2 (G.lite), ITU-T G.994.1 (G.hs)
Ports	4 x 10/100Mbps LAN, 1 x RJ-11 ADSL
Antenna	1 x Fixed
Security	64/128-bit WEP, WPA
Protocols	TCP/IP, PPPoE, PPPoA, DHCP
Weight	0.6 lbs (273g)
