TP-Link TD-W8901G User Guide

TD-W8901G 54M Wireless ADSL2+ Router User Guide
25
circumstances, changes may benefit performance. Carefully consider and evaluate any changes
to these wireless settings.
1) WEP-64Bits
To configure WPA-64Bits settings, select the WPA-64Bits option from the drop-down list. The
menu will change to offer the appropriate settings. WPA-64Bits is a data privacy mechanism
based on a 64-bit shared key algorithm, as described in the IEEE 802.11g standard.

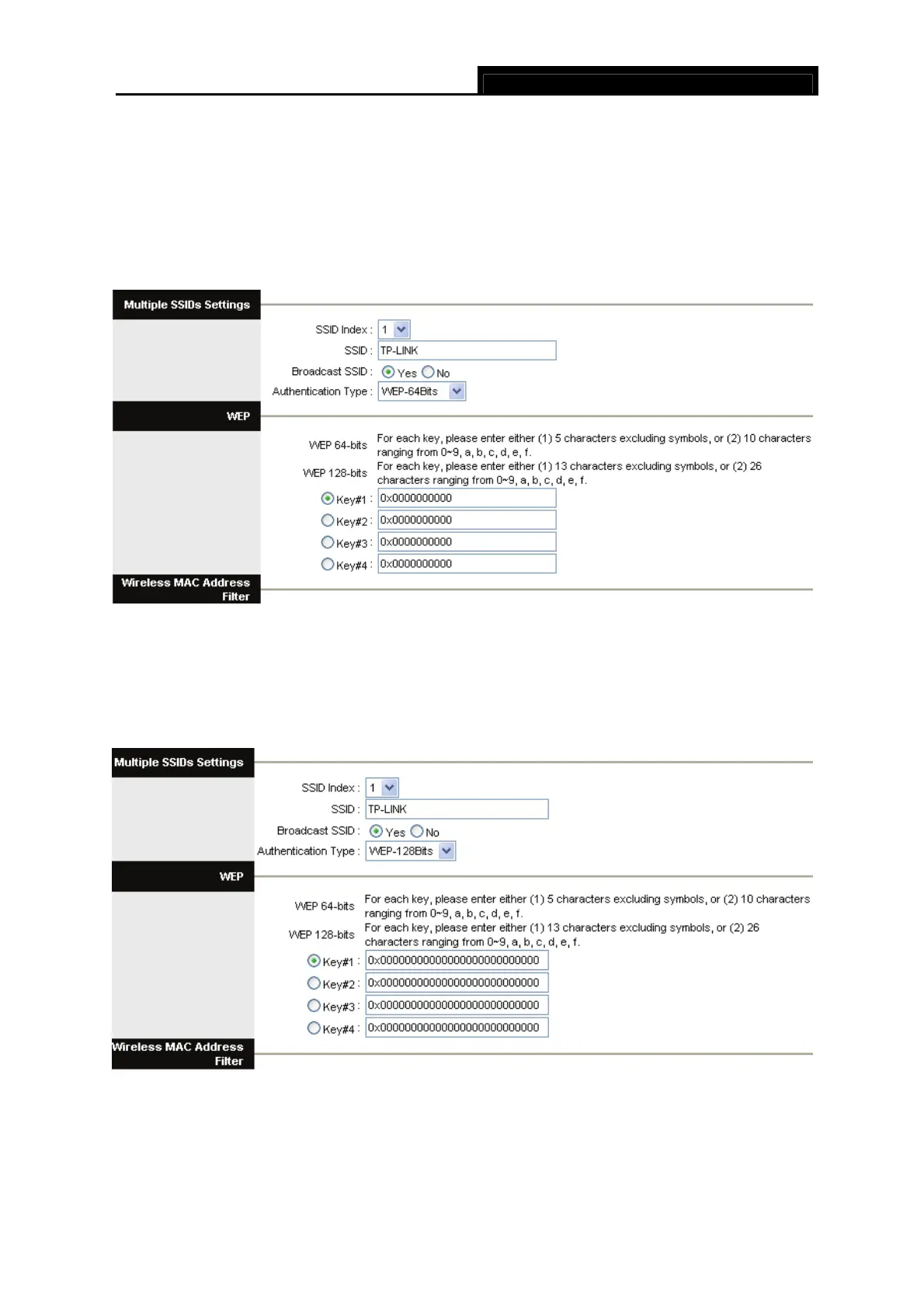

Figure 4-13
2) WEP-128Bits
To configure WPA-64Bits settings, select the WPA-64Bits option from the drop-down list. The
menu will change to offer the appropriate settings. 128-bit is stronger than 64-bit.
Figure 4-14
3) WPA-PSK
To configure WPA-PSK settings, select the WPA-PSK option from the drop-down list. The menu
will change to offer the appropriate settings. WPA-PSK requires a shared key and does not use a

TP-Link TD-W8901G Specifications

General

Wireless Speed	Up to 54Mbps
Frequency Band	2.4GHz
ADSL Speed	Downstream: up to 24Mbps, Upstream: up to 3.5Mbps
Wireless Standards	IEEE 802.11g, IEEE 802.11b
ADSL Standards	ITU-T G.992.1 (G.dmt), ITU-T G.992.2 (G.lite), ITU-T G.994.1 (G.hs)
Ports	4 x 10/100Mbps LAN, 1 x RJ-11 ADSL
Antenna	1 x Fixed
Security	64/128-bit WEP, WPA
Protocols	TCP/IP, PPPoE, PPPoA, DHCP
Weight	0.6 lbs (273g)
