TP-Link TD-W8901G User Guide

TD-W8901G 54M Wireless ADSL2+ Router User Guide
49

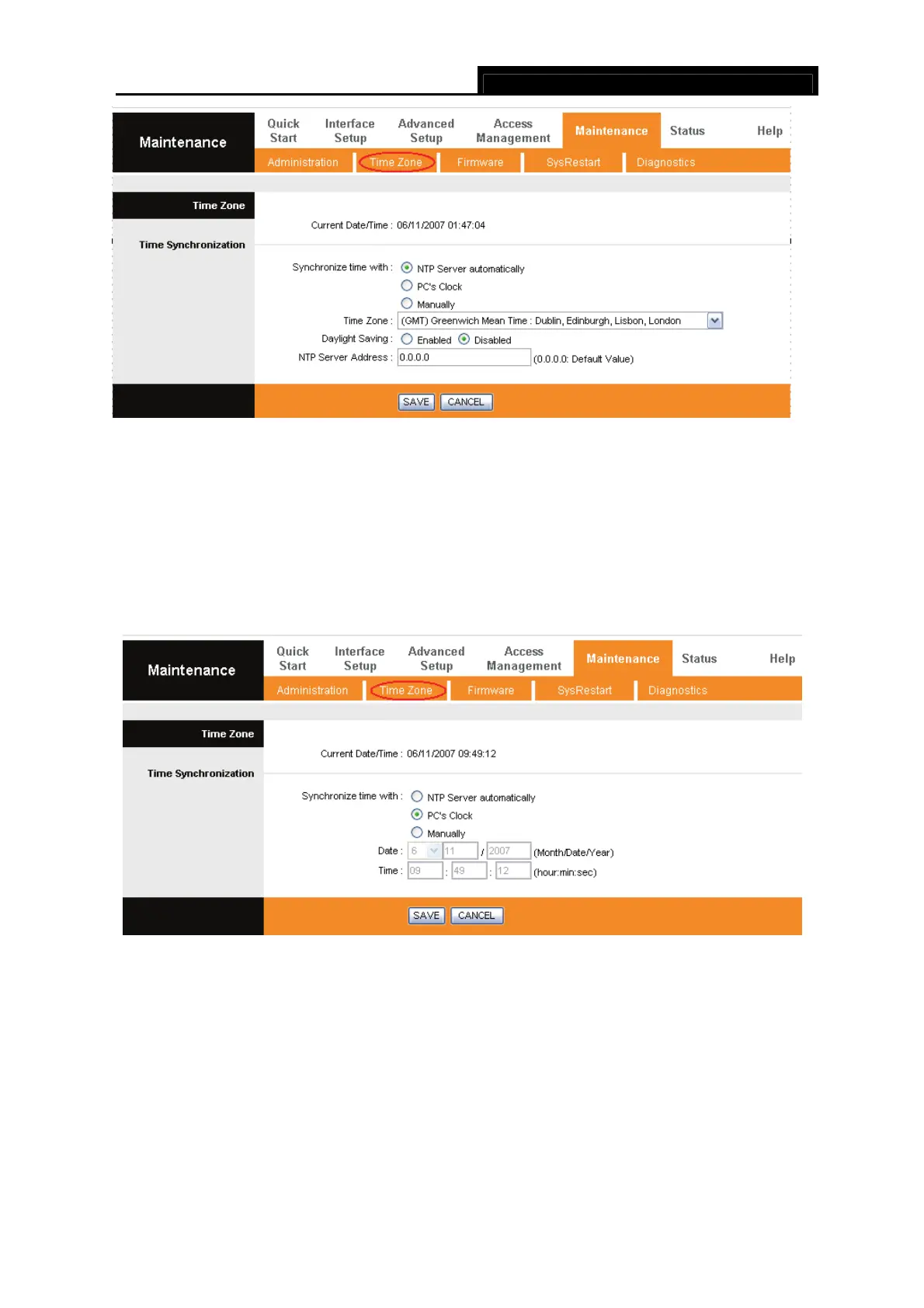

Figure 4-42
)
Note:
The ADSL Router built-in some NTP Servers, when the Router connects to the Internet, the
Router will get the system time automatically from the NTP Server. You can also configure the
NTP Server address manually, and then the Router will get the time from the specific Server firstly.
2) PC’s Clock
Select PC’s Clock as the Synchronize time, you don’t need to set any items.
Figure 4-43
3) Manually
Select Manually as the Synchronize time, you need to set the date and time corresponding to the
current time.

TP-Link TD-W8901G Specifications

General

Wireless Speed	Up to 54Mbps
Frequency Band	2.4GHz
ADSL Speed	Downstream: up to 24Mbps, Upstream: up to 3.5Mbps
Wireless Standards	IEEE 802.11g, IEEE 802.11b
ADSL Standards	ITU-T G.992.1 (G.dmt), ITU-T G.992.2 (G.lite), ITU-T G.994.1 (G.hs)
Ports	4 x 10/100Mbps LAN, 1 x RJ-11 ADSL
Antenna	1 x Fixed
Security	64/128-bit WEP, WPA
Protocols	TCP/IP, PPPoE, PPPoA, DHCP
Weight	0.6 lbs (273g)
