TD-W9980 N600 Wireless Dual Band Gigabit VDSL2 Modem Router User Guide
6
1.3.2 The Back Panel

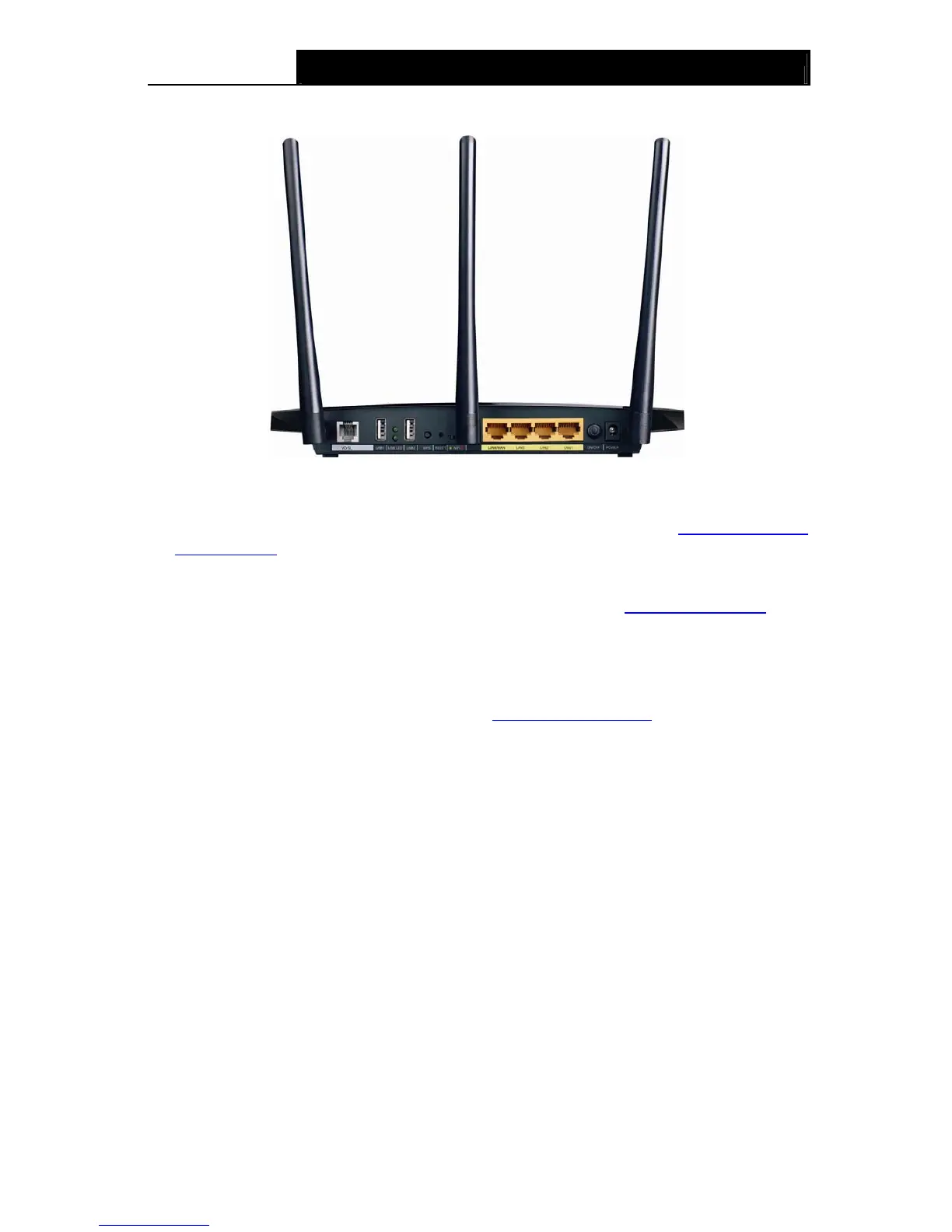

Figure 1-2
VDSL: Through the port, you can connect the modem router with the telephone. Or you can
connect them by an external separate splitter. For details, please refer to 2.3 Connecting the
Modem Router
.
USB1, USB2: The USB port connects to a USB storage device or a USB printer.
WPS: The switch for the WPS function. For details, please refer to 4.8.2 WPS Settings.
RESET: There are two ways to reset the modem router's factory defaults.
Method one: With the modem router powered on, use a pin to press and hold the Reset
button for at least 5 seconds. And the modem router will reboot to its factory default settings.
Method two: Restore the default setting from 4.22.7 Factory Defaults
of the modem router's
Web-based management page.
WiFi: The switch for the WiFi function. Move it to left /right to enable/disable the WiFi function.
LAN4/WAN, LAN3, LAN2, LAN1: Through these ports, you can connect the modem router to
your PC or the other Ethernet network devices. In wireless router mode you will be able to
connect to Cable/FTTH/VDSL/ADSL device.
ON/OFF: The switch for the power.
POWER: The Power plug is where you will connect the power adapter.
Antennas: Used for wireless operation and data transmit.
