TP-Link TL-MR6400 - Network Settings (WAN, LAN, VLAN)

TL-MR6400
300Mbps Wireless N 4G LTE Router
5.6 Network

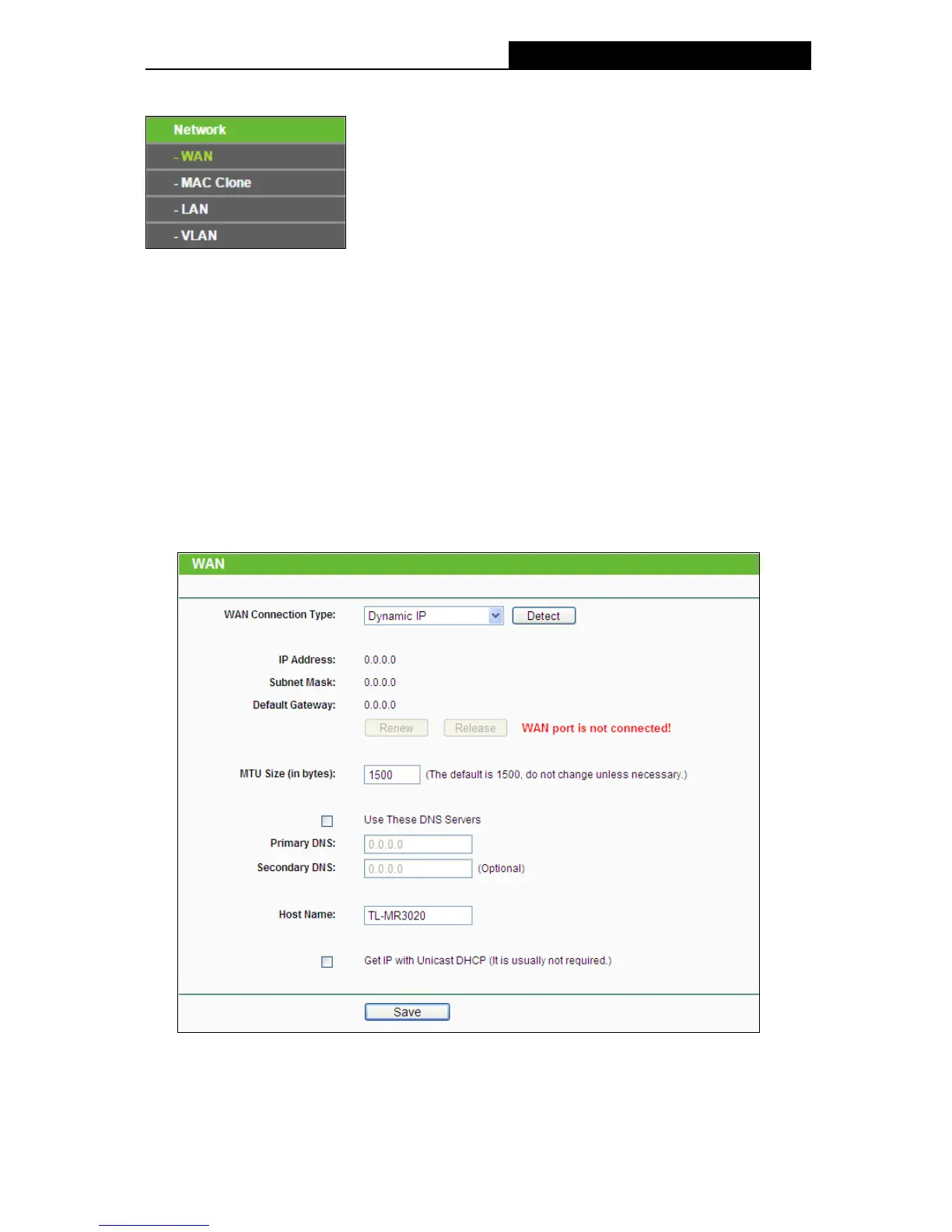

Figure 5-2 the Network menu
There are four submenus under the Network menu (shown in Figure 5-2): WAN, MAC Clone,
LAN and VLAN. Click any of them, and you will be able to configure the corresponding function.
5.6.1 WAN
Choose menu “Network
→
WAN”, and then you can configure the IP parameters of the WAN
on the screen below.
1. If your ISP provides the DHCP service, please choose Dynamic IP type, and the router will
automatically get IP parameters from your ISP. You can see the page as follows (Figure
5-3):
Figure 5-3 WAN - Dynamic IP
-87-
