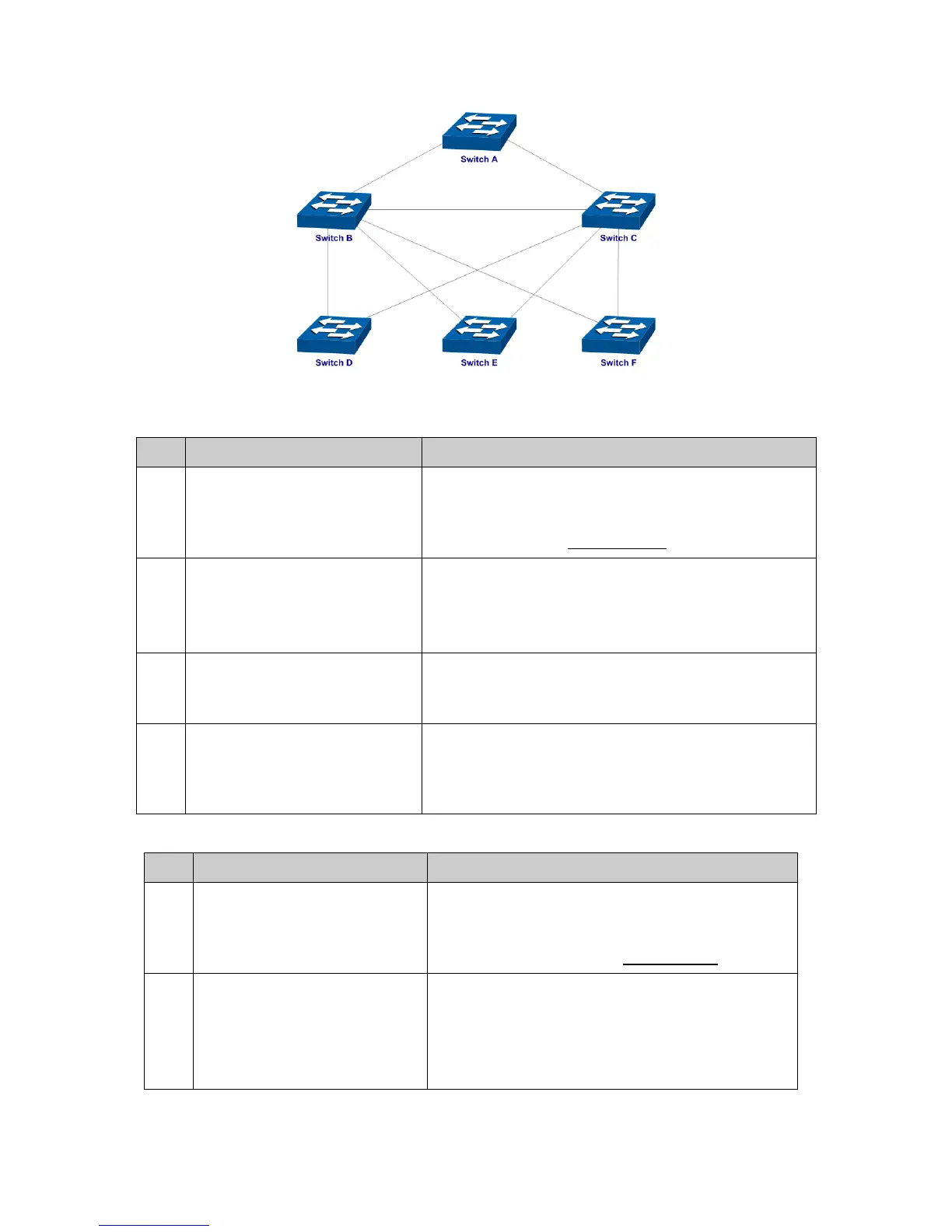

 Network Diagram
 Configuration Procedure
 Configure Switch A:
Step Operation Description
1 Configure ports On VLAN→802.1Q VLAN page, configure the link type
of the related ports as Trunk, and add the ports to
VLAN101-VLAN106
. The detailed instructions can be
found in the section 802.1Q VLAN.
2 Enable STP function On Spanning Tree→STP Config→STP Config page,
enable STP function and select MSTP version.
On Spanning Tree→STP Config→Port Config page,
enable MSTP function for the port.
3 Configure the region name and
the revision of MST region
On Spanning Tree→MSTP Instance→Region Config
page, configure the region as TP-
LINK and keep the
default revision setting.
4 Configure VLAN-to-Instance
mapping table of the MST region
On Spanning Tree→MSTP Instance→Instance
Config page, configure VLAN-to-
Instance mapping
table. Map VLAN 101, 103 and 105 to Instance 1; map
VLAN 102, 104 and 106 to Instance 2.
 Configure Switch B:
Step Operation Description
1 Configure ports On VLAN→802.1Q VLAN page, configure the link
type of the related ports as Trunk, and add the ports
to VLAN101-VLAN106. The detai
led instructions
can be found in the section 802.1Q VLAN.
2 Enable STP function On Spanning Tree→STP Config→STP Config
page, enable STP function and select MSTP
version.
On Spanning Tree→STP Config→Port Config
page, enable MSTP function for the port.
