Link Type:
Displays the Link Type of the port. It can be reset on Port Config
screen.
Egress Rule:
Select the Egress Rule for the VLAN port member. The default
egress rule is UNTAG.
• TAG: All packe
ts forwarded by the port are tagged. The
packets contain VLAN information.
• UNTAG: Packets forwarded by the port are untagged.
LAG: Displays the LAG to which the port belongs.
6.1.2 Port Config
Before creating the 802.1Q VLAN, please acquaint yourself with all the devices connected to the
switch in order to configure the ports properly.
Choose the menu VLAN→ 802.1Q VLAN → Port Config to load the following page.

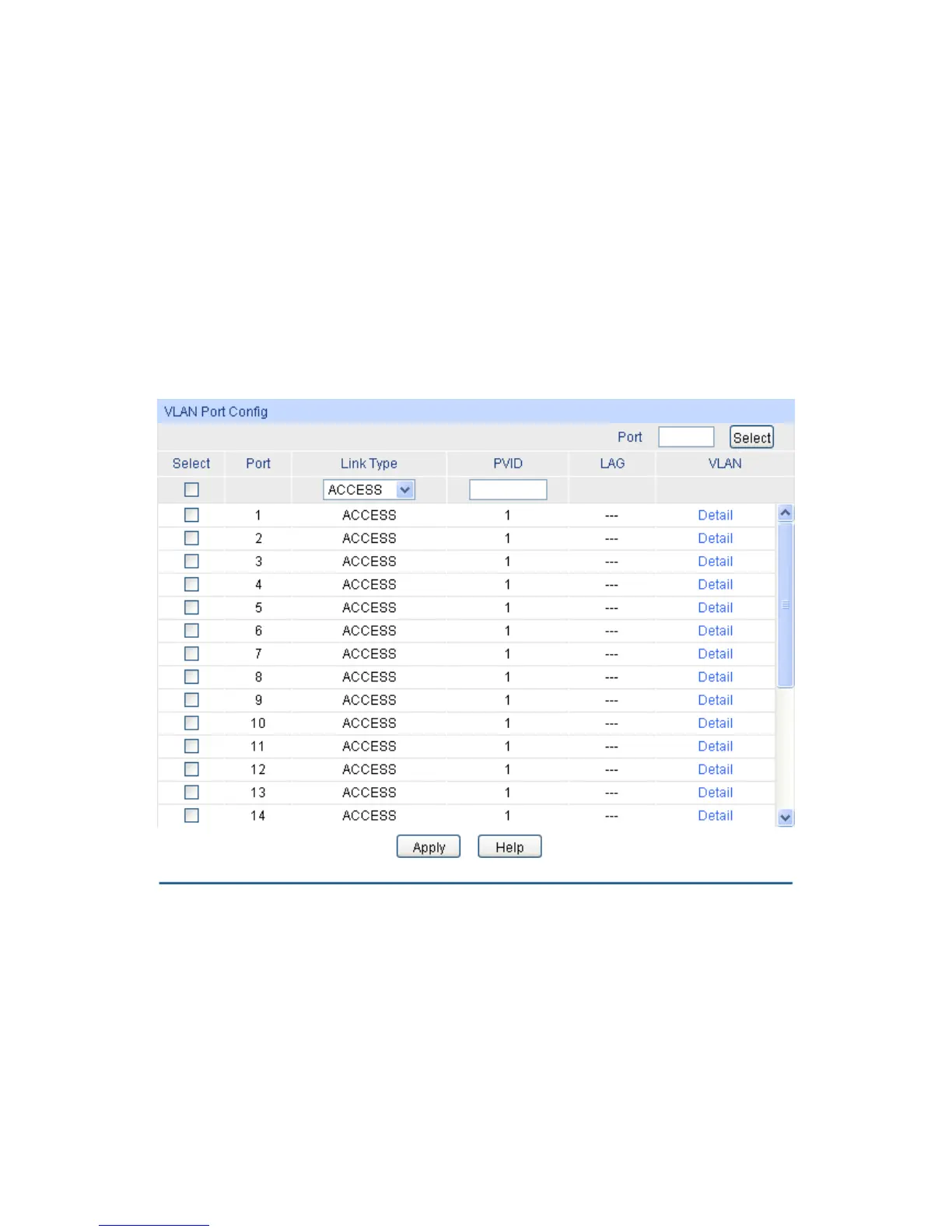

Figure 6-5 802.1Q VLAN – Port Config
The following entries are displayed on this screen:

VLAN Port Config
Port Select: Click the Select button to quick-sel
ect the corresponding entry
based on the port number you entered.
Select:
Select the desired port for configuration. It is multi-optional.
Port:
Displays the port number.
