Click Edit button to modify the settings of the corresponding VLAN. Click Create button to create a
new VLAN.

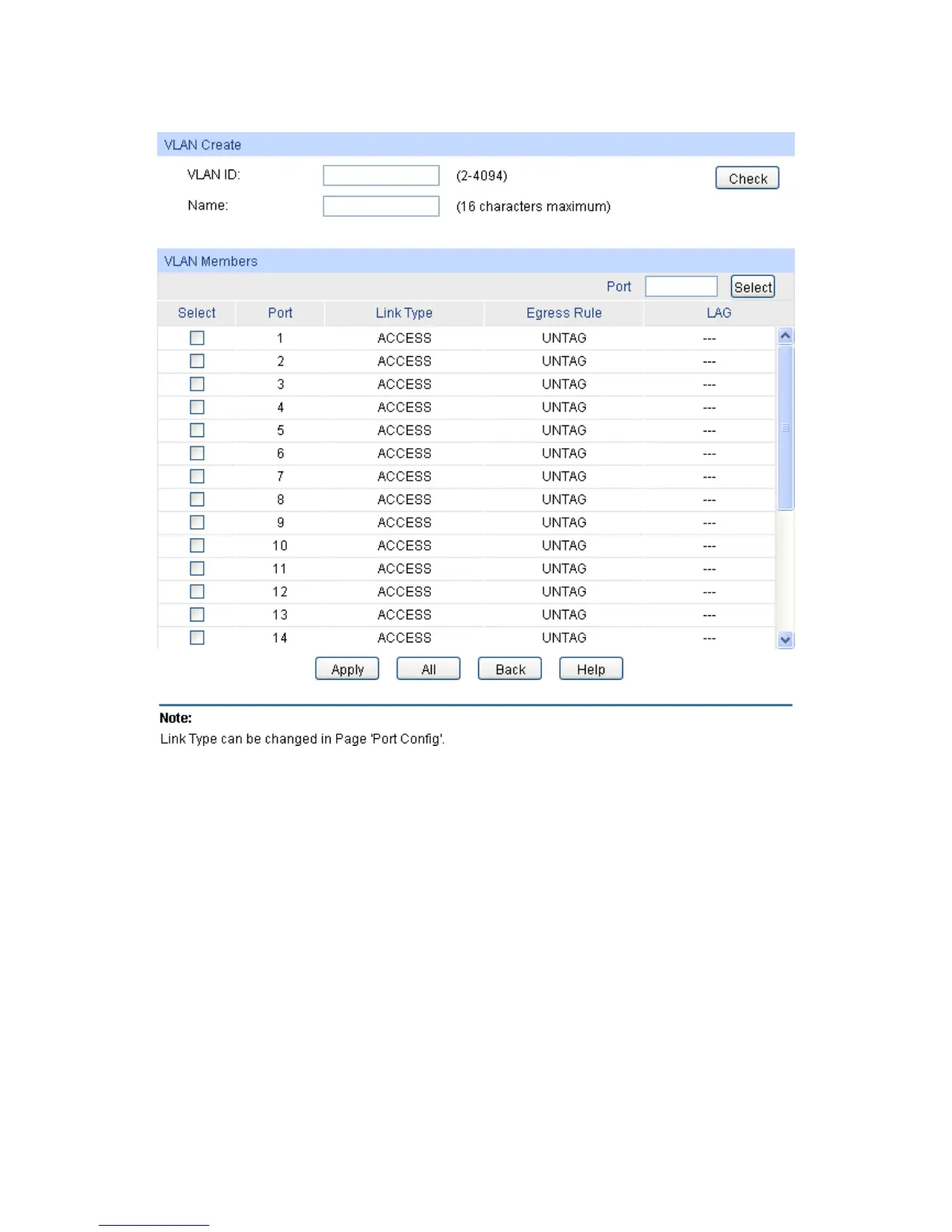

Figure 6-4 Create or Modify 802.1Q VLAN
The following entries are displayed on this screen:
VLAN Config
VLAN ID: Enter the ID number of VLAN.
Description: Give a description to the VLAN for identification.
Check:
Click the Check button to
check whether the VLAN ID you entered
VLAN Members
Port Select: Click the Select button to quick-
select the corresponding entry
based on the port number you entered.
Select: Select the desired port to be a member of VLAN or leave it blan
It's multi-optional.
Port: Displays the port number.
