5.3.4 VLAN Setting
5.3.4.1 VLAN Mode
This page selects the VLAN Mode, possible eld values are:

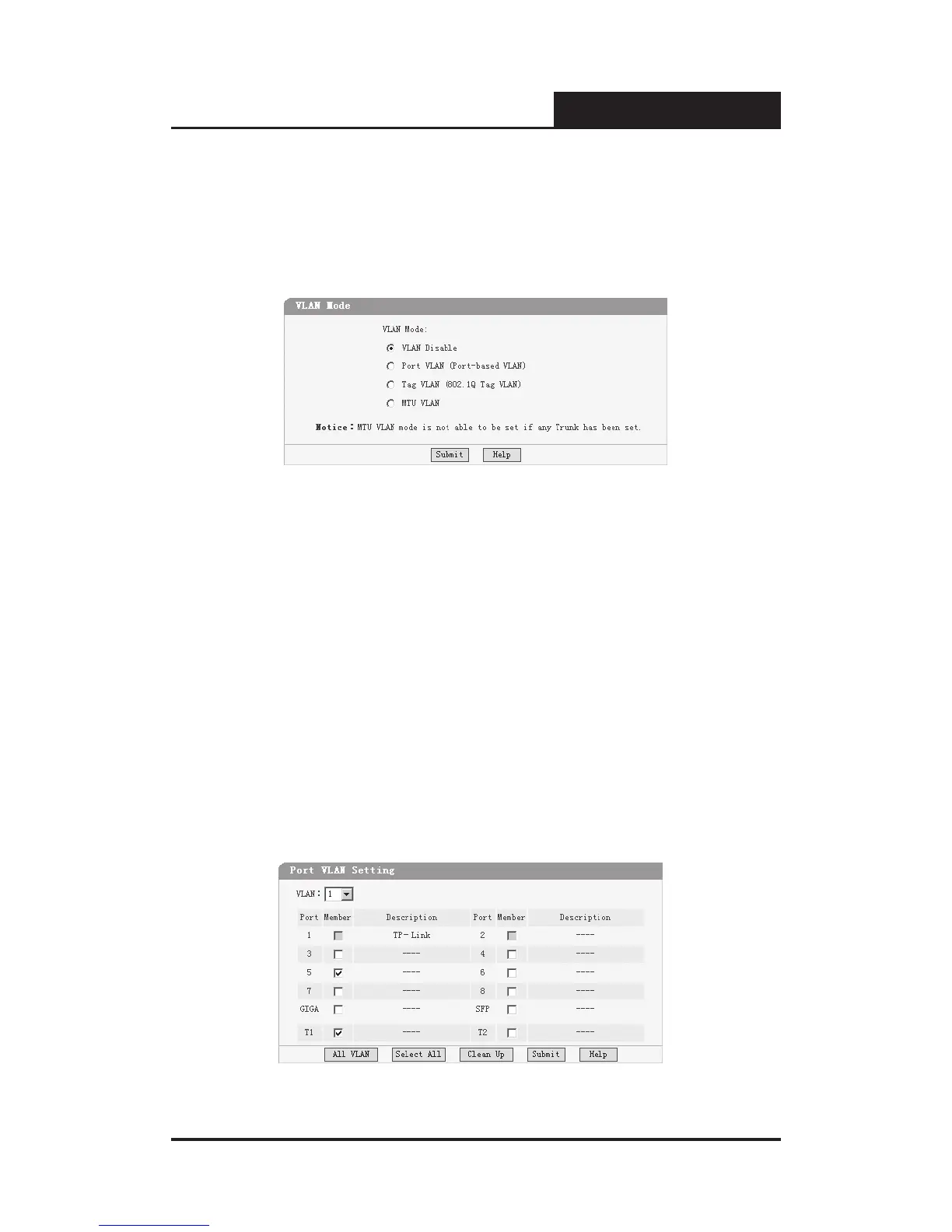

Figure 5-35 VLAN Mode
VLAN Disable
¾
: Do not set any VLAN in the switch, all ports of the switch
can communicate with each other.
Port VLAN (Port-Based VLAN)
¾
: Set the Port-Based VLAN mode.
Tag VLAN (802.1Q Tag VLAN)
¾
: Set the 802.1Q Tag VLAN mode.
MTU VLAN
¾
: Set the MTU VLAN mode. This mode cannot be set if any
Trunk has be set.
5.3.4.2 Port VLAN Setting
This page displays when the switch is in Port VLAN mode, it contains the
following elds:
Figure 5-36 Port VLAN Setting
