6) The number of Port VLAN can be set is the same as the switch port
number.
5.3.4.3 Tag VLAN Global Setting
This page display when the switch is in Tag VLAN mode, the global setting of
the ports will affect all Tag VLANs. It contains the following elds:

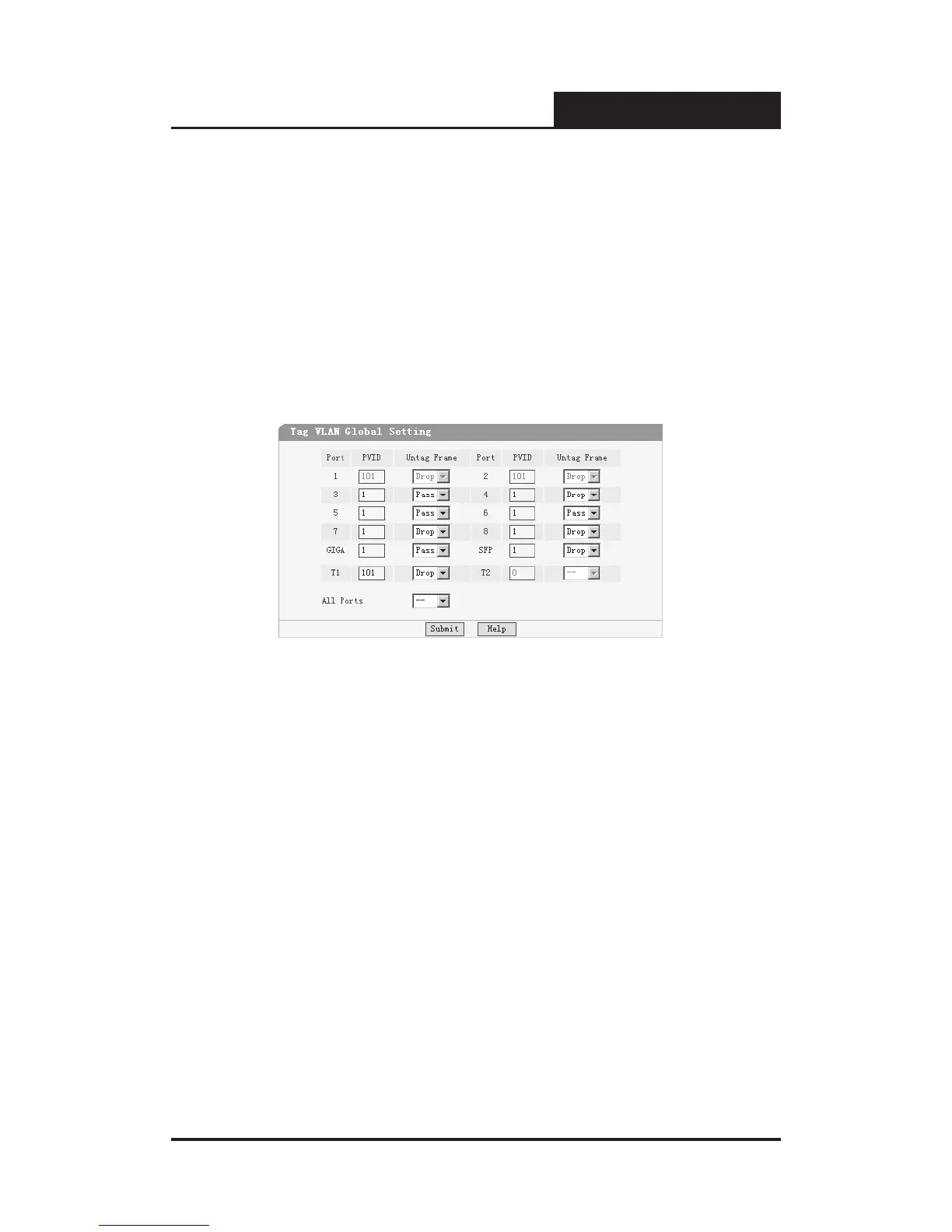

Figure 5-38 Tag VLAN Global Setting
Port
¾
: The switch port number.
PVID
¾
: while receiving an untagged frame from the port, the switch will
assign a tag to the frame, using the PVID of the port as its VID.
Untag Frame
¾
: The solution to the untagged frame received. "Drop" will
drop the frame and "Pass" will transmit the frame in the VLAN with the VID
the same as the PVID of the port.
All Ports
¾
: By operating on this eld expediently, you can set the values of
all ports in the corresponding eld.
Notice
¾
: If any Trunk has been set, the Trunk can be configured, but
member ports of the Trunk are not able to be congured and in the elds it
displays the parameters of the Trunk they belong to.(see port1 and 2 in the
gure for example).
To Next Page
