TP-Link TL-WR941HP

7
TL-WR941HP
450Mbps High Power Wireless N Router

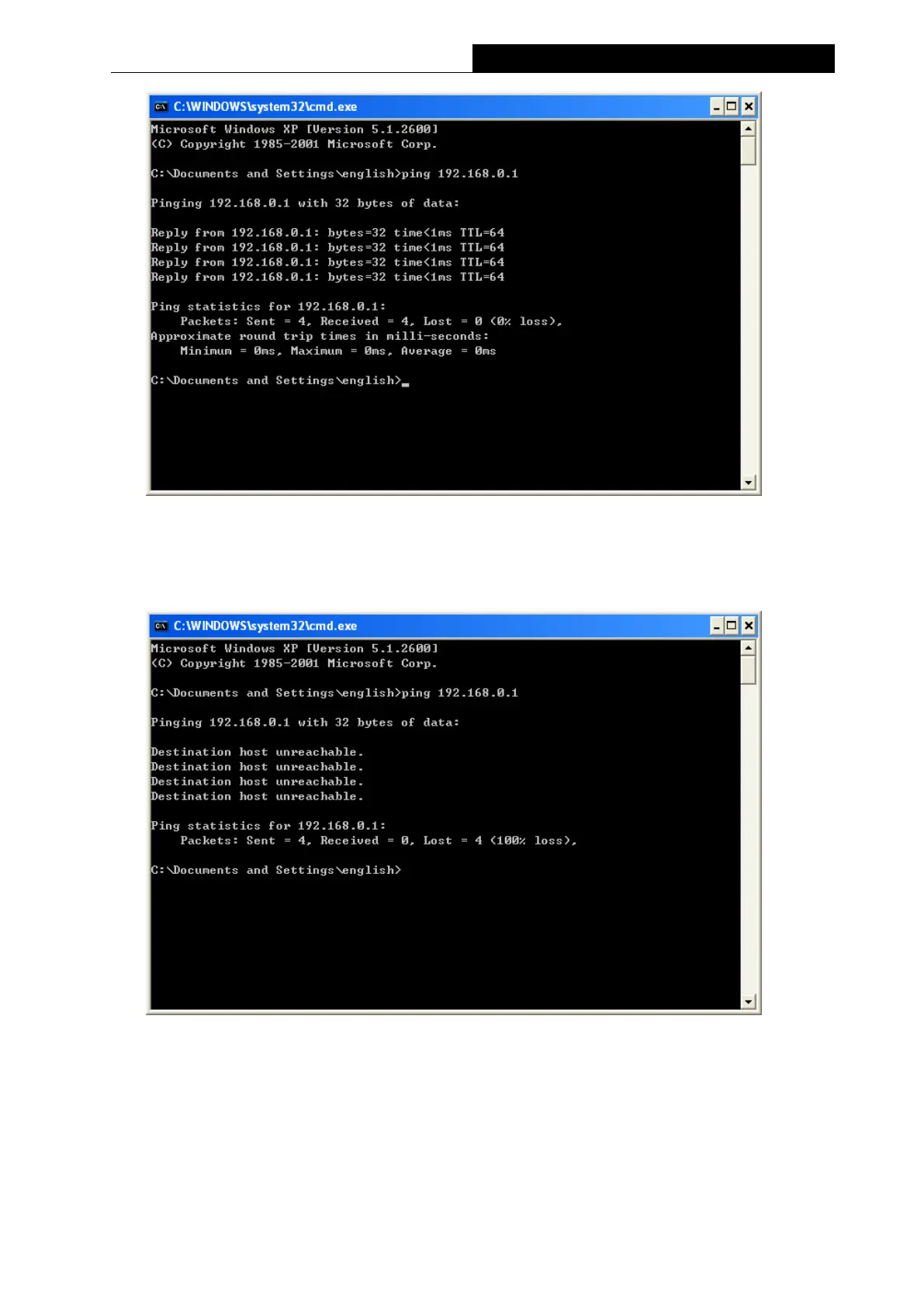

Figure 2-1 Success result of Ping command
 If the result displayed is similar to the Figure 2-2, it means the connection between your PC
and the router failed.
Figure 2-2 Failure result of Ping command
Please check the connection following these steps:
1. Is the connection between your PC and the router correct?
 Note:
The 1/2/3/4 LEDs of Ethernet ports which you link to on the router and LEDs on your PC's
adapter should be lit.
