450Mbps High Power Wireless N Router

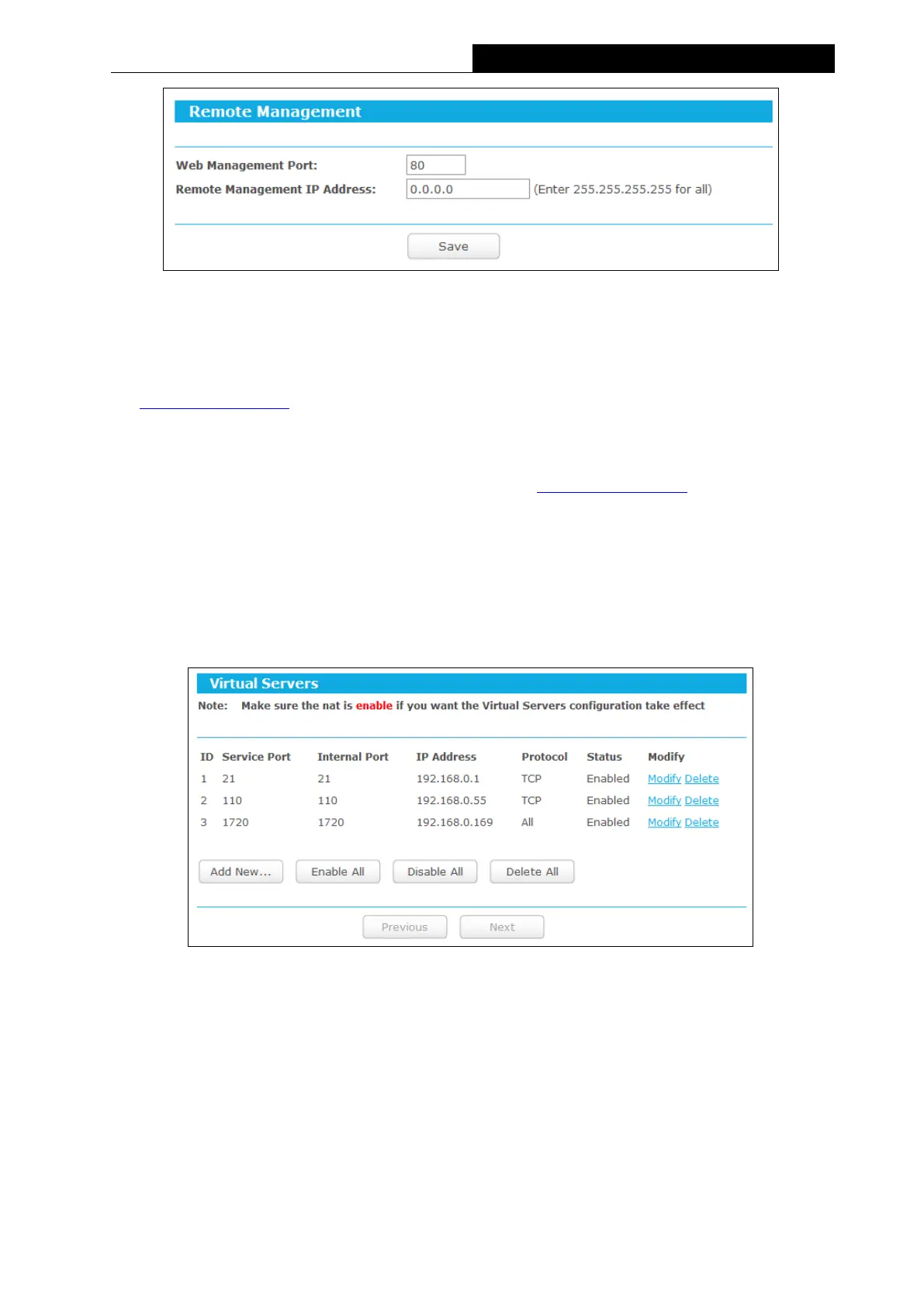

Figure A-8 Remote Management
Note:
If the above configuration takes effect, you can visit and configure the router by typing
http://192.168.0.1:88 (the router’s LAN IP address: Web Management Port) in the address
field of the Web browser. If the LAN IP of the modem connected with your router is
192.168.0.x, the default LAN IP of the router will automatically switch from 192.168.0.1 to
192.168.1.1 to avoid IP conflict; in this case, please try http://192.168.1.1:88.
3) Log in to the router, Go to “Advanced→Forwarding→Virtual Servers”. On the
"Virtual Servers" page, click Add New…, then on the “Add or Modify a Virtual
Server” page, enter “80” into the blank next to the “Service Port”, and your IP address
next to the “IP Address”, assuming 192.168.0.188 for an example, remember to
Enable and Save.
Figure A-9 Virtual Servers
