71
450Mbps High Power Wireless N Router

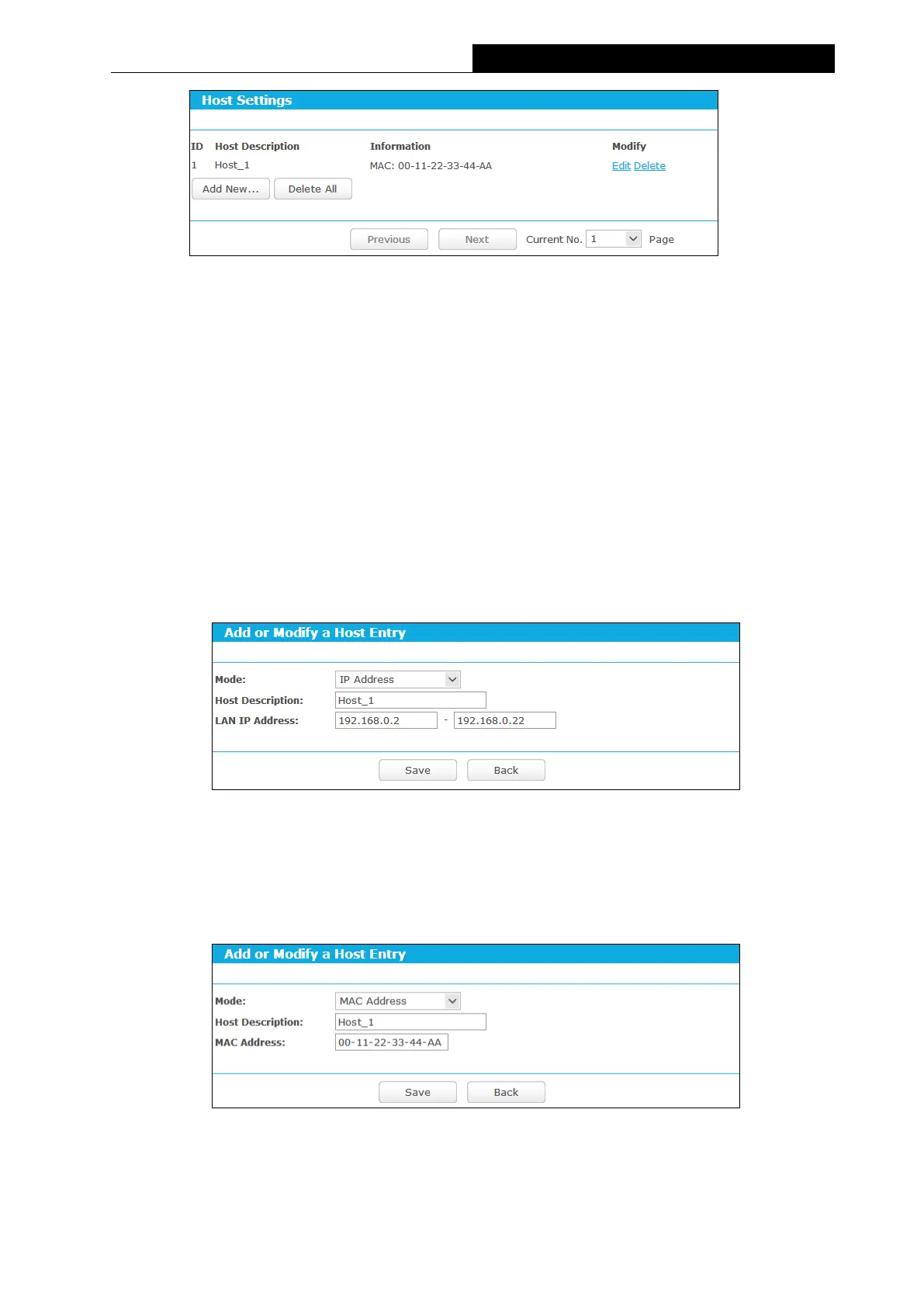

Figure 3-54 Host Settings
Host Description - Displays the description of the host and this description is unique.
Information - Displays the information about the host. It can be IP or MAC.
Modify - To modify or delete an existing entry.
To add a new entry, please follow the steps below.
1. Click the Add New… button.
2. In the Mode field, select IP Address or MAC Address.
If you select IP Address, the screen is shown as Figure 3-55.
1) In Host Description field, create a unique description for the host, e.g. Host_1.
2) In LAN IP Address field, enter the IP address.
Figure 3-55 Add or Modify a Host Entry
If you select MAC Address, the screen is shown as Figure 3-56.
1) In Host Description field, create a unique description for the host, e.g. Host_1.
2) In MAC Address field, enter the MAC address.
Figure 3-56 Add or Modify a Host Entry
3. Click the Save button to complete the settings.
