Copyright © 2012 Test Products International, Inc. 9070 Vibration Analysis
PAGE 14

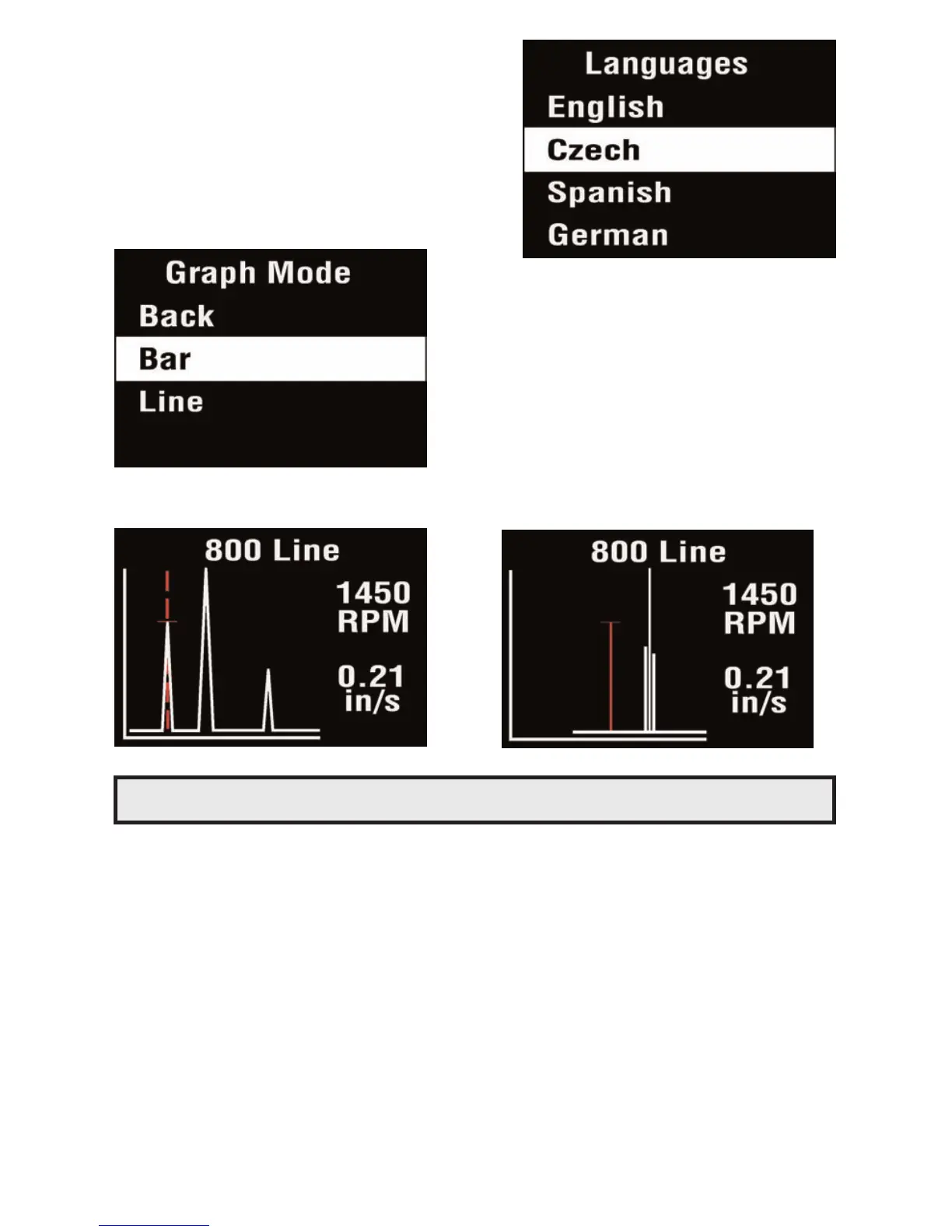

The operating Language can be
selected from any one of 4 different
languages.
A total of 14 languages are available,
4 of which are loaded depending on
the exact model of 9070.
The Graph Mode can be set to display
the frequency spectrum as either a
Bar graph or a Line graph.
Examples of these two graph modes
are shown below:
3 Maintenance & Care
Wipe clean with soft towel and lukewarm water. Do not place in dish-
washer or other cleaning device. Do not use detergents to clean hous-
ing. Do not subject meter to water at or above 122
°F (50°C).
Care must be taken when the batteries are changed. Make sure the gasket
is properly seated when reinstalling the battery door otherwise the IP67 rat-
ing will be compromised.
Do not drop the instrument. Damage to the probe tip / accelerometer
and/or OLED display may occur.
No internal user serviceable parts.
