PAGE 3
9070 Vibration Analysis Copyright © 2012 Test Products International, Inc.
The 9070 is a simple to use vibration monitoring and analysis tool that
allows easy display of vibration signals. The meter automatically per-
forms vibration analysis functions based on machine running speed to
help diagnose faults such as unbalance, misalignment and looseness.
The system is designed to enable a user to take vibration measurements
from assets (e.g. pumps, motors, fans and bearings). The unit displays
vibration frequency plots and allows vibration severity and bearing
condition to be monitored.
1.1 Control buttons
Turning the meter ON is achieved simply by pressing the power on
(circle) button. The unit automatically turns OFF if not used for 1
minute (this time period can be increased up to 60 minutes using the
Setup Wizard).
1.2 Batteries

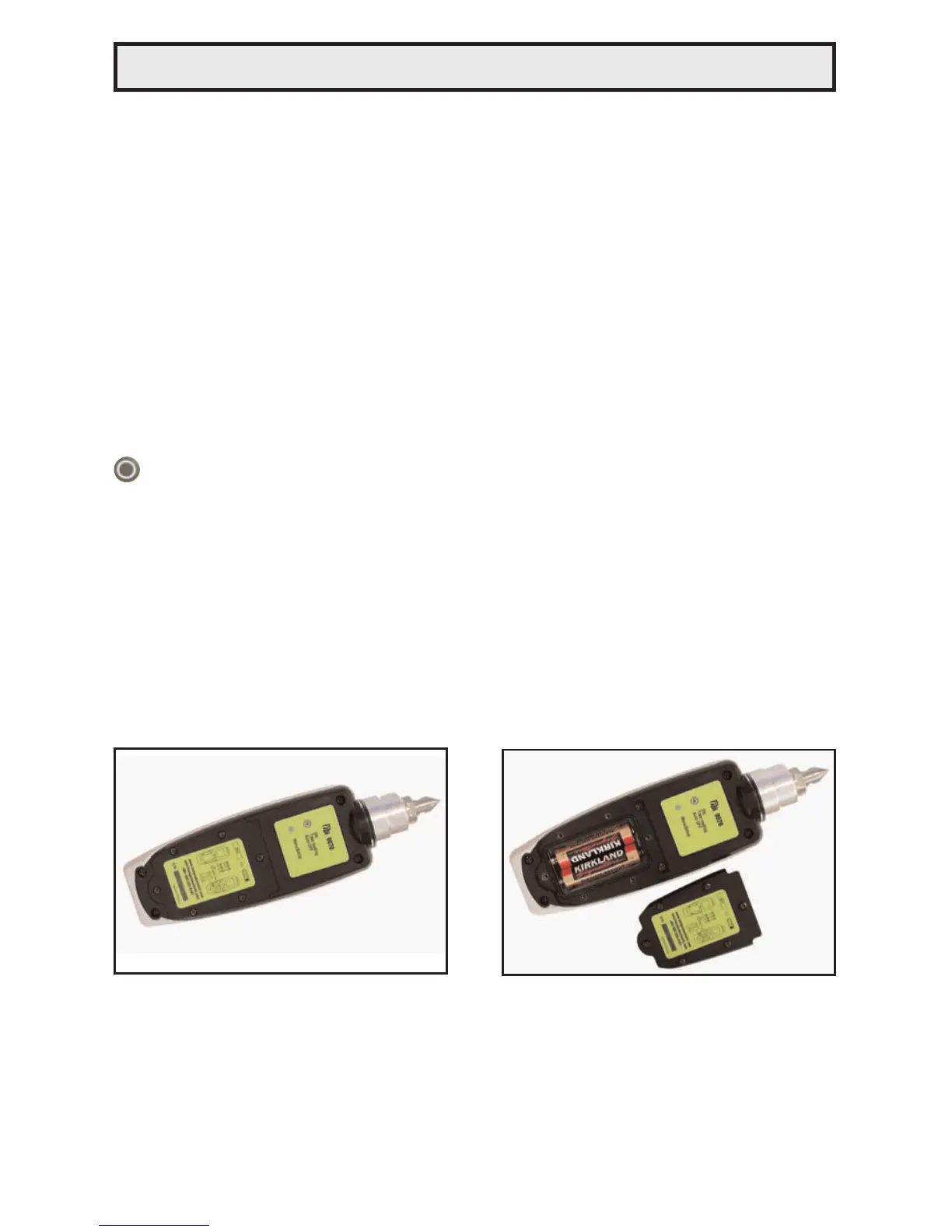

The 9070 requires two AA size batteries and these can be replaced by
removing the battery compartment cover (held in place by 6 screws) as
shown in the photographs below. Use a #1 phillips head screwdriver to
loosen and tighten the battery cover screws. Using the incorrect screw-
driver will result in damage to the screws.
Care must be taken when the batteries are changed. Make sure the gasket
is properly seated when reinstalling the battery door otherwise the IP67 rat-
ing will be compromised.
1.3 Service
The 9070 contains no user serviceable parts. In the unlikely case of
malfunction, please return the complete unit to your supplier for repair.
1 OVERVIEW
