* Depending on which type of network connection you wish to use, connect
the WLAN antenna or a network cable to the router.
Wiring diagram
For the rst use, please establish the necessary connections as shown below.
• WLAN-antenna or network cable to your router
• VHF antenna
• Bluetooth antenna
• USB SYS conection (For operation in combination with a DAC 200 or HA 200)
• SYS OUT to SYS IN connection (For operation in combination with a DAC 200 or HA 200)
• Mains cord
Do not connect the MP 200 and the other components to the power supply until all the necessary
connections between the devices have been made.
VHF + DAB antenna
to Router

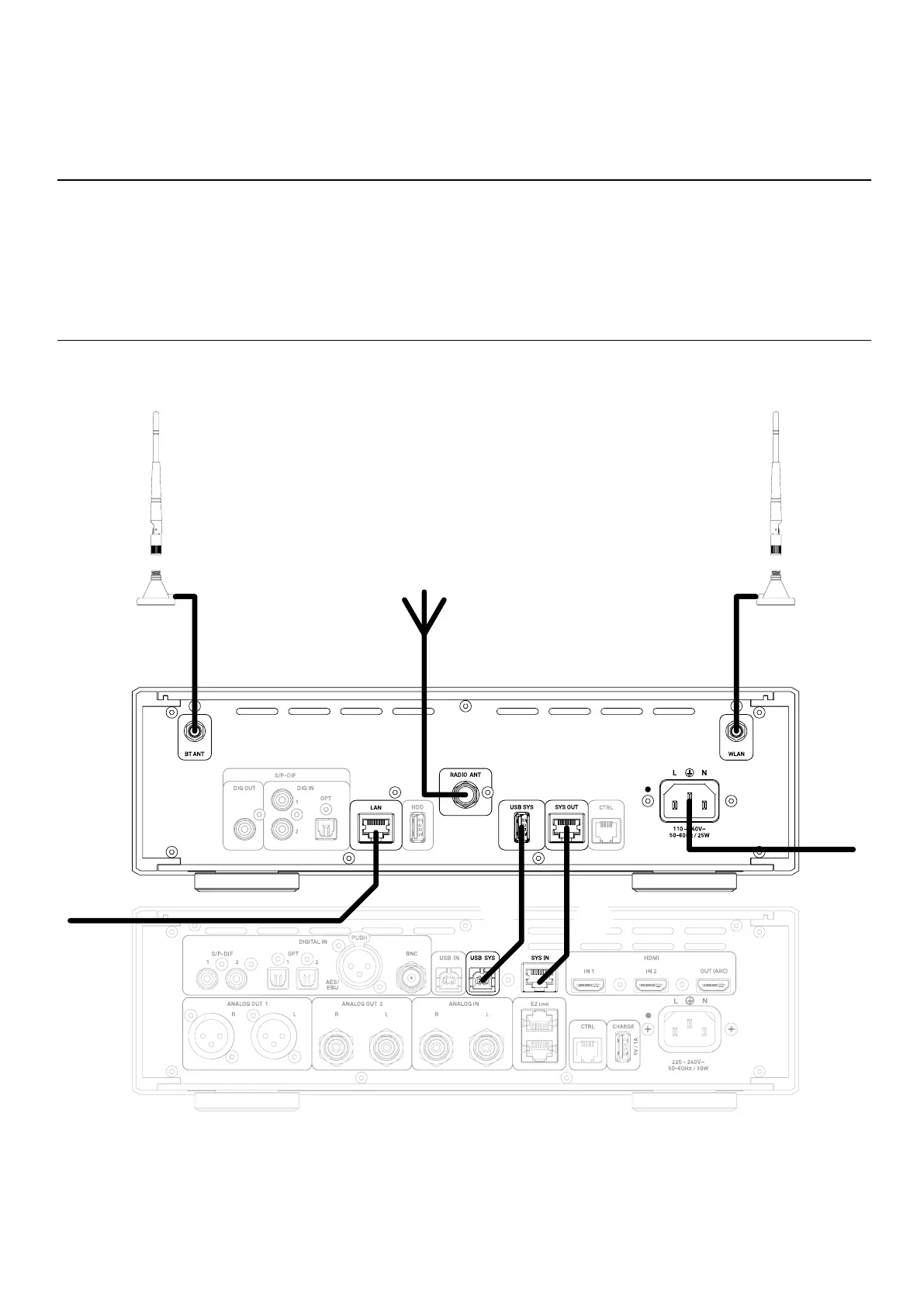

Fig. 1
to wall socket
